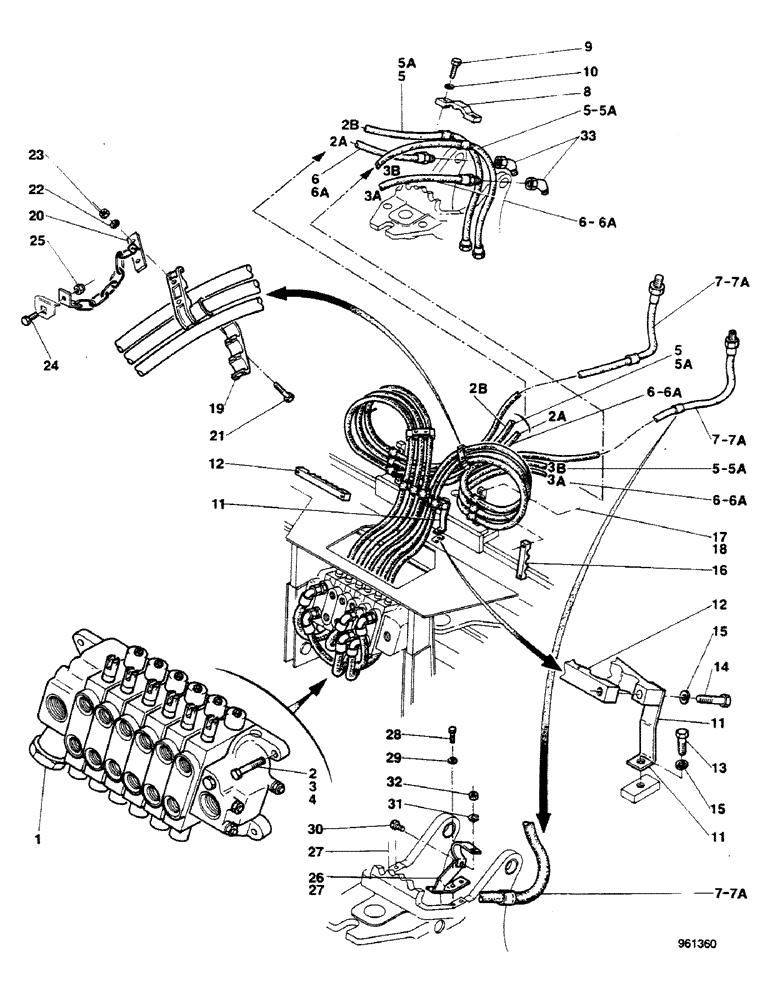

Запчасти Case 580G (251A) - SIDESHIFT BACKHOE - LINES FROM CONTROL VALVE STARTING FROM NO. 3.948.950 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 291A - 291C

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat

6шт.

4

131-654

LOCK NUT,1/2"-13, GB

3шт.

5

E45819

HOSE

2шт.

5a

E46409

LOOM

SLEEVE (Not shown)

2шт.

6

E45820

2шт.

6a

E46409

LOOM

SLEEVE (Not shown)

2шт.

7

E45818

HOSE

2шт.

7a

E46410

SLEEVE

(Not shown)

2шт.

8

E46081

CLAMP

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

E45851

BRACKET

1шт.

12

E45852

HOSE CLAMP

1шт.

13

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

E45847

CLAMP

2шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

E45846

CLAMP

4шт.

20

E46199

CHAIN (CE)

retaining, with cab

2шт.

20

E46444

SUPPORT ASSY.

SPARE PART CHAIN retaining, without cab

2шт.

21

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

4шт.

24

111-133

CARRIAGE BOLT,Short NK, 1/4"-20 x 5/8", G5

W/Cab

2шт.

24

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

w/o Cab

2шт.

25

131-48

LOCK NUT,1/4"-20, GB

lock

2шт.

26

E46195

BRACKET

RH

1шт.

27

E46197

BRACKET

LH

1шт.

28

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

29

92-5

LOCK WASHER,5/16"

4шт.

30

164-222

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1/2"

2шт.

31

95-8

WASHER,1/2"

flat

2шт.

32

25-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

33

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

elbow

2шт.
