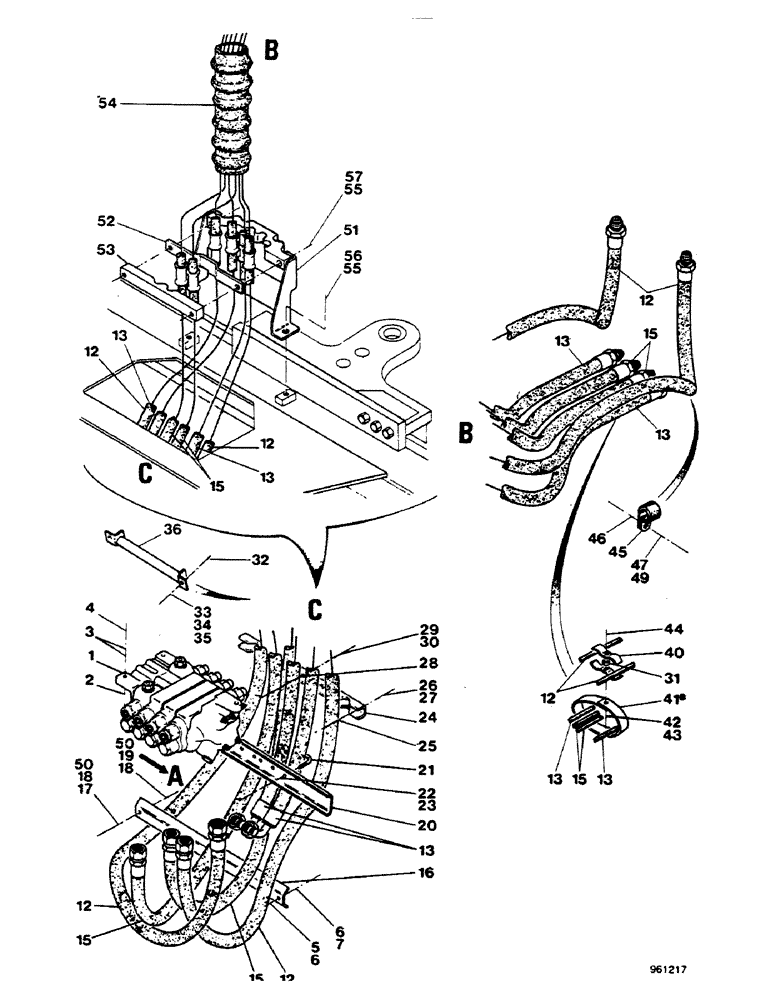

Запчасти Case 580G (250) - SIDESHIFT BACKHOE - LINES FROM CONTROL VALVE UP TO NO. 3.948.949 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat

6шт.

4

131-654

LOCK NUT,1/2"-13, GB

3шт.

5

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

6

195-21

WASHER,5/16"

Flat

2шт.

7

131-651

NUT,5/16"-18, GB

NUT

1шт.

12

D91999

HOSE

For hydraulic boom lock, See Figure 266, Serial Range: -3.918.606

2шт.

12

E46095

HOSE

For hydraulic boom lock, See Figure 266, Start Serial: 3.918.607

2шт.

13

D123535

HOSE

, Serial Range: -3.918.606

2шт.

13

E44921

HOSE

E45622, Start Serial: 3.918.607

2шт.

13

E45622

HOSE

2шт.

15

D123536

HOSE

, Serial Range: -3.918.606

2шт.

15

E44920

HOSE

E45623, Start Serial: 3.918.607

2шт.

15

E45623

HOSE

2шт.

16

D120469

SUPPORT

SPARE PART For hydraulic boom lock, See Figure 266

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

18

95-6

WASHER,3/8"

lock

2шт.

19

131-652

LOCK NUT,3/8"-16, GB

1шт.

20

D120468

BRACKET

, Serial Range: -3.918.606

1шт.

21

F53432

BOLT

u, Serial Range: -3.918.606

2шт.

22

92-4

LOCK WASHER,1/4"

4шт.

23

25-104

NUT,1/4"-20, G5

, Serial Range: -3.918.606

4шт.

24

D93875

CLAMP

1шт.

25

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

2шт.

28

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

29

92-5

LOCK WASHER,5/16"

1шт.

30

9635082

NUT,5/16" - 18, Gr 5

1шт.

31

D67696

BUSHING

, Serial Range: -3.918.606

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

, Serial Range: -3.918.606

2шт.

33

95-6

WASHER,3/8"

, Serial Range: -3.918.606

2шт.

34

92-6

LOCK WASHER,3/8"

, Serial Range: -3.918.606

2шт.

35

25-106

NUT,3/8"-16, G5

, Serial Range: -3.918.606

2шт.

36

D123486

BRACKET

holding, Serial Range: -3.918.606

1шт.

40

D42833

CLAMP

, Serial Range: -3.918.606

2шт.

41

D123496

STRAP

, Serial Range: -3.918.606

1шт.

42

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

, Serial Range: -3.918.606

1шт.

43

195-525

WASHER,3/8", SAE

, Serial Range: -3.918.606

1шт.

44

129-103

NUT,Hex, 3/8" - 16, Gr 5

, Serial Range: -3.918.606

1шт.

45

D94212

CLAMP

Used with D92591, See Figure 382

2шт.

46

164-222

HEX SOC SCREW,Btn Hd, 1/2" - 13 x 1/2"

2шт.

47

95-8

WASHER,1/2"

flat

2шт.

49

25-148

JAM NUT,Jam, 1/2"-13, G5

2шт.

50

195-525

WASHER,3/8", SAE

2шт.

51

E44886

BRACKET

SPARE PART, Start Serial: 3.918.607

1шт.

52

E44880

CLAMP

, Start Serial: 3.918.607

1шт.

53

E44879

CLAMP

, Start Serial: 3.918.607

1шт.

54

P46096

WASHER, SEALING

SEAL WASHER SLEEVE, Start Serial: 3.918.607

1шт.

55

92-6

LOCK WASHER,3/8"

, Start Serial: 3.918.607

4шт.

56

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

, Start Serial: 3.918.607

2шт.

57

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
