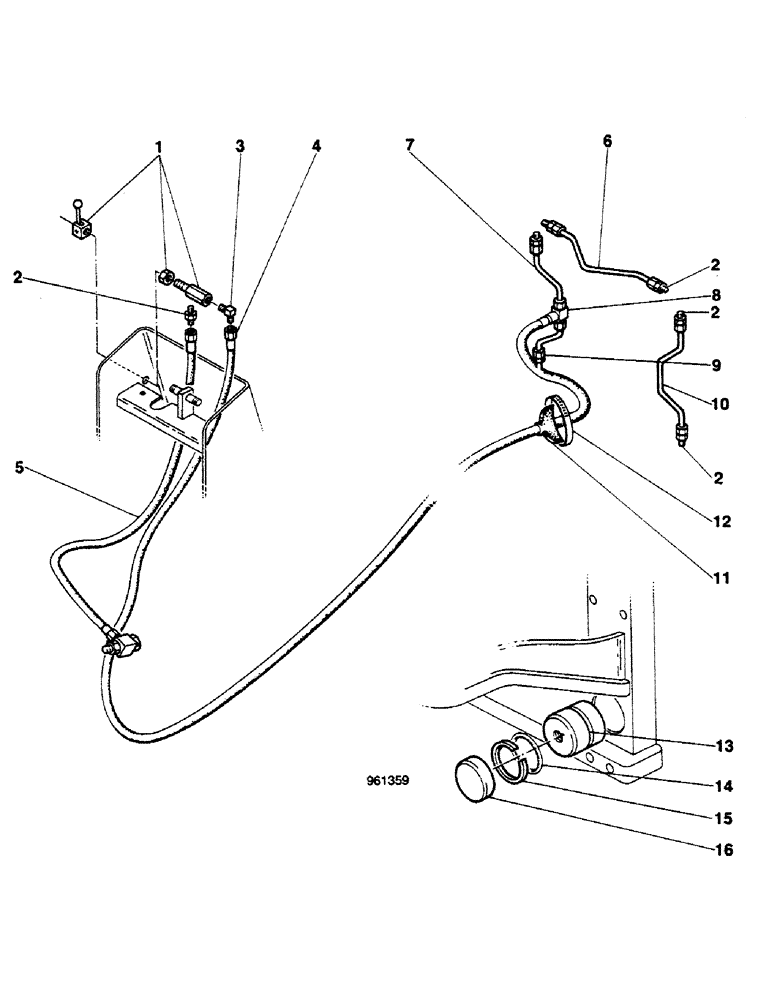

Запчасти Case 580G (249A) - SIDESHIFT BACKHOE - SIDESHIFT LOCKING CYLINDER HYDRAULIC CIRCUIT STARTING FROM NO. 3.948.950 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 311A

1шт.

2

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

7шт.

3

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

1шт.

4

E45146

HOSE

1шт.

5

E45536

HOSE

1шт.

6

E45151

PIPE

1шт.

7

E45147

PIPE

1шт.

8

218-591

TEE,7/16"-20, 37 Degree

1шт.

9

E45149

PIPE

1шт.

10

D93217

TUBE

1шт.

11

D38648

BLOCK

spacer

1шт.

12

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

D68290

PISTON

ASSY, Includes: Ref. 13 - 15

4шт.

13

NSS

NOT SOLD SEPARAT

PISTON

1шт.

14

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

1шт.

15

H754614

WASHER

backup

1шт.

16

CASD71729

COVER

PLATE

4шт.
