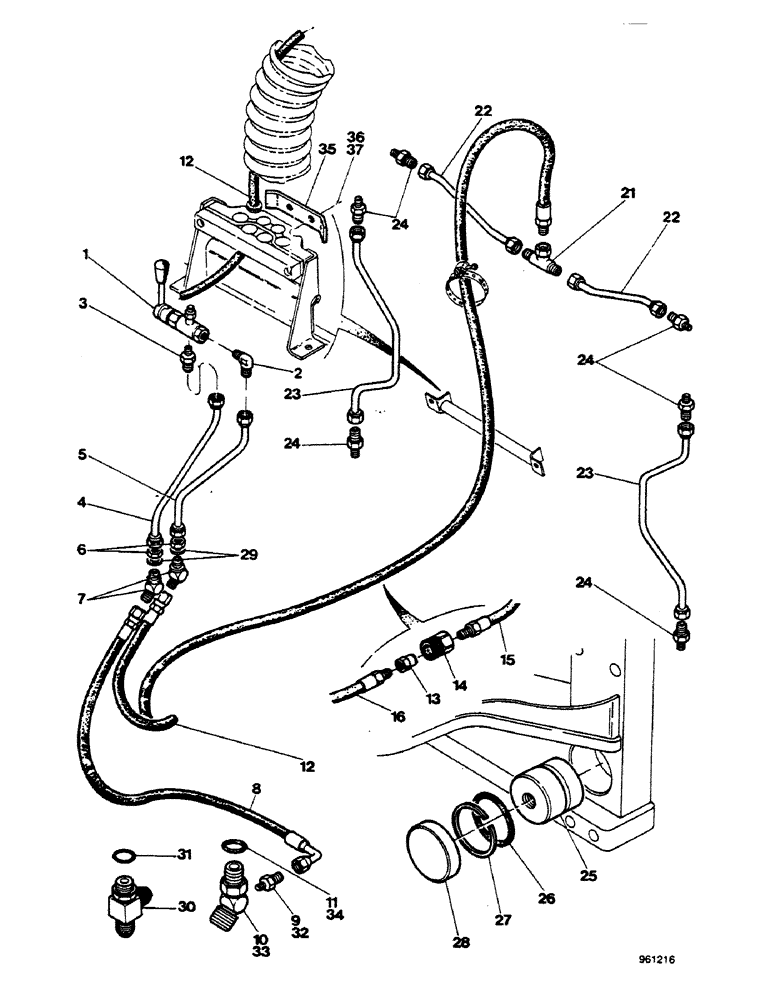

Запчасти Case 580G (248) - SIDESHIFT BACKHOE - SIDESHIFT LOCKING CYLINDER HYDRAULIC CIRCUIT UP TO NO. 3.948.949 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE control, See Figure 310
1шт.
2
218-481
ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
1шт.
3
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
1шт.
4
D120102
TUBE
1шт.
5
D89706
TUBE
SPARE PART
1шт.
6
218-1252
BHD LOCK NUT,Blkhd, 7/16"-20
2шт.
7
218-712
ELBOW,45 Degree Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree
elbow
2шт.
8
D89696
HOSE
1шт.
9
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
2L
1шт.
10
D90183
FITTING
2L, Includes: Ref. 11
1шт.
11
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
For 2L
1шт.
12
E44029
HOSE
, Serial Range: -3.918.606
1шт.
12
E44919
HOSE
, Start Serial: 3.918.607
1шт.
13
D123172
SPLINED COUPLING
NIPPLE, E44029
1шт.
14
D123171
SPLINED COUPLING
E44029
1шт.
15
D121109
HOSE
E44029
1шт.
16
D121063
HOSE
E44029
1шт.
21
218-841
TEE,37 Degree, 7/16"-20 x 7/16"-20, Fem Sw Br
1шт.
22
D93919
TUBE,6.35 mm OD x 30, 152 mm L
2шт.
23
D93217
TUBE
2шт.
24
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
6шт.
D68290
PISTON
ASSY, Includes: Ref. 25 - 27
4шт.
25
NSS
NOT SOLD SEPARAT
PISTON
1шт.
26
D38755
O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro
1шт.
27
H754614
WASHER
backup
1шт.
28
D71729
PLATE
PLATE
4шт.
29
195-29
WASHER,7/16"
flat (if used)
2шт.
30
218-5589
TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 1/2"-20
Includes: Ref. 31, For 5L, Start Serial: 3.915.085
1шт.
31
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
For 5L, Start Serial: 3.915.085
1шт.
32
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
For 5L, Serial Range: -3.915.084
1шт.
33
D90183
FITTING
Includes: Ref. 34, For 5L, Serial Range: -3.915.084
1шт.
34
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
For 5L, Serial Range: -3.915.084
1шт.
35
E44882
CLAMP
, Start Serial: 3.918.607
1шт.
36
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
, Start Serial: 3.918.607
2шт.
37
92-5
LOCK WASHER,5/16"
, Start Serial: 3.918.607
2шт.
Выбрано товаров: 35
