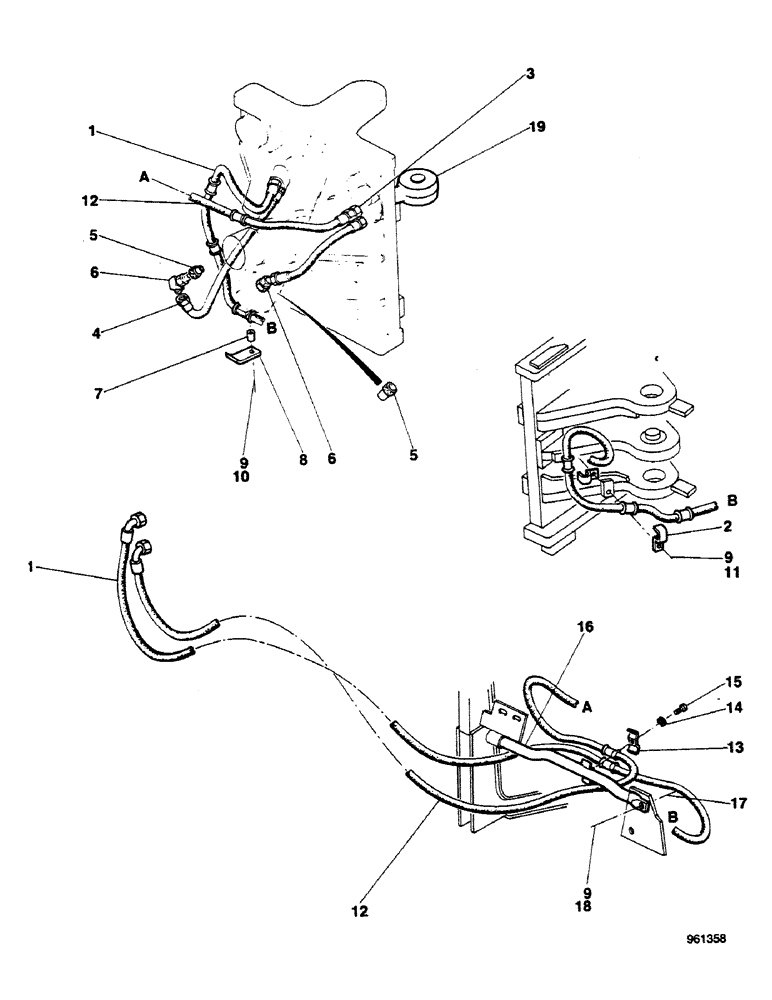

Запчасти Case 580G (247C) - SIDESHIFT BACKHOE - SWING CYLINDER HYDRAULIC CIRCUIT STARTING FROM NO. 3.948.950 (08) - HYDRAULICS

1

E46020

HOSE

1шт.

2

A12308

CLAMP

2шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

E41999

HOSE

2шт.

5

D121822

VALVE

restrictor

2шт.

5

D121529

STOP

RESTRICTOR Ext

2шт.

6

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

elbow, Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

E45639

SPACER

2шт.

8

E46112

CLAMP

2шт.

9

92-6

LOCK WASHER,3/8"

5шт.

10

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

12

E46019

HOSE

1шт.

13

L72801

HOSE CLAMP

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

16

E46105

TUBE

GUARD

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

18

25-106

NUT,3/8"-16, G5

1шт.

19

REF

INSTRUCTION

CYLINDER, See Figure 327A

2шт.
