(580G) - CASE CONSTRUCTION KING LOADER BACKHOE (1/78-12/88)
/
(08) - HYDRAULICS
/

(246) - SIDESHIFT BACKHOE - SWING CYLINDER HYDRAULIC CIRCUIT UP TO NO. 3.947.279

Запчасти Case 580G (246) - SIDESHIFT BACKHOE - SWING CYLINDER HYDRAULIC CIRCUIT UP TO NO. 3.947.279 (08) - HYDRAULICS

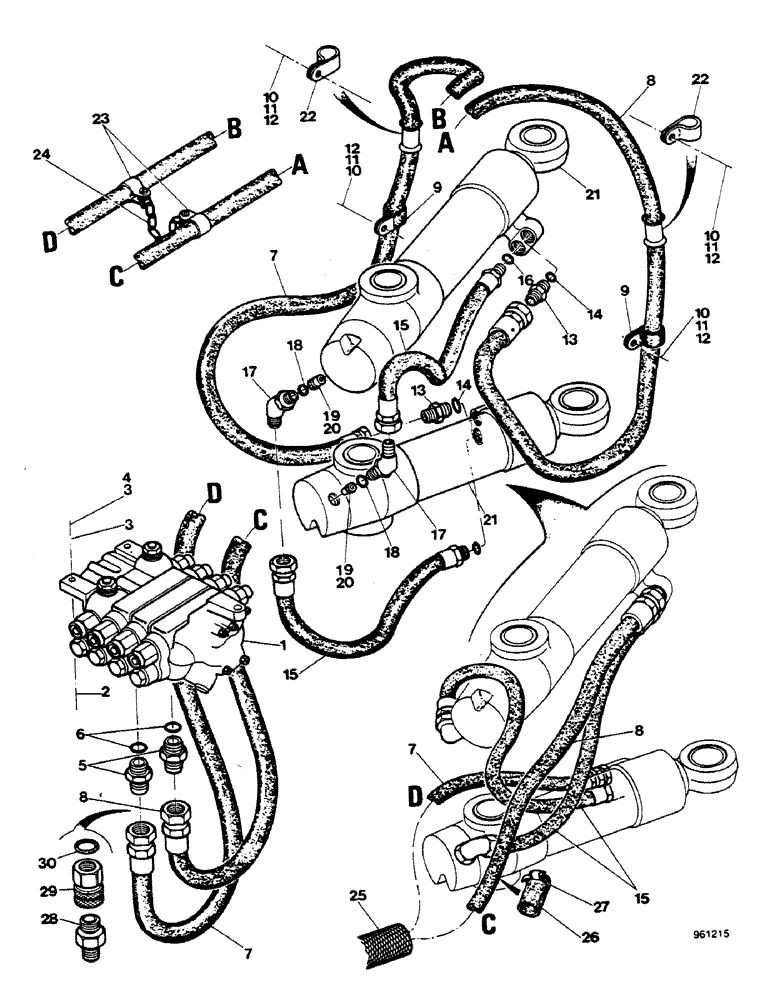

Схема запчастей Case 580G - (246) - SIDESHIFT BACKHOE - SWING CYLINDER HYDRAULIC CIRCUIT UP TO NO. 3.947.279 (08) - HYDRAULICS
b
2
15
8
11
11
c
12
d
7
17
a
22
13
13
19
8
14
3
c
9
19
9
1
21
15
21
15
28
10
12
18
10
11
c
26
3
29
7
16
10
14
d
30
24
18
4
27
5
25
20
10
b
23
d
12
6
20
7
11
17
22
a
8
12

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat

6шт.

4

131-654

LOCK NUT,1/2"-13, GB

3шт.

5

REF

INSTRUCTION

ADAPTER (See Figure 254), Includes: Ref. 6

2шт.

6

REF

INSTRUCTION

O-RING

1шт.

7

D123636

LARGE HOSE

HOSE,LARGE, Serial Range: -3.918.606

1шт.

7

E44917

HOSE

, Start Serial: 3.918.607

1шт.

8

D123636

LARGE HOSE

HOSE,LARGE, Serial Range: -3.918.606

1шт.

8

E45625

HOSE

, Start Serial: 3.918.607

1шт.

9

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

, Serial Range: -3.918.606

2шт.

10

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

, Serial Range: -3.918.606

4шт.

11

92-6

LOCK WASHER,3/8"

, Serial Range: -3.918.606

4шт.

12

195-25

WASHER,3/8"

, Serial Range: -3.918.606

4шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 14

2шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

E41999

HOSE

Includes: Ref. 16

2шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

elbow, Includes: Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

D121822

VALVE

restrictor

2шт.

20

D121529

STOP

RESTRICTOR Ext.

2шт.

21

REF

INSTRUCTION

CYLINDER, See Figure 326

2шт.

22

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

, Serial Range: -3.918.606

2шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

, Serial Range: -3.918.606

2шт.

24

E11244

CHAIN (CE)

SPARE PART, Serial Range: -3.918.606

1шт.

25

E44982

LOOM

SLEEVE, Start Serial: 3.918.607

1шт.

26

32798

HOSE

, Start Serial: 3.918.607

1/2шт.

27

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

, Start Serial: 3.918.607

1/2шт.

28

D123170

COUPLING, BREAK AWAY

NIPPLE, Start Serial: 3.918.607

2шт.

29

D123169

COUPLING, BREAK AWAY

Includes: Ref. 29, Start Serial: 3.918.607

2шт.

29

N7484

SEAL

, Start Serial: 3.918.607

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 3.918.607

2шт.

Выбрано товаров: 33
