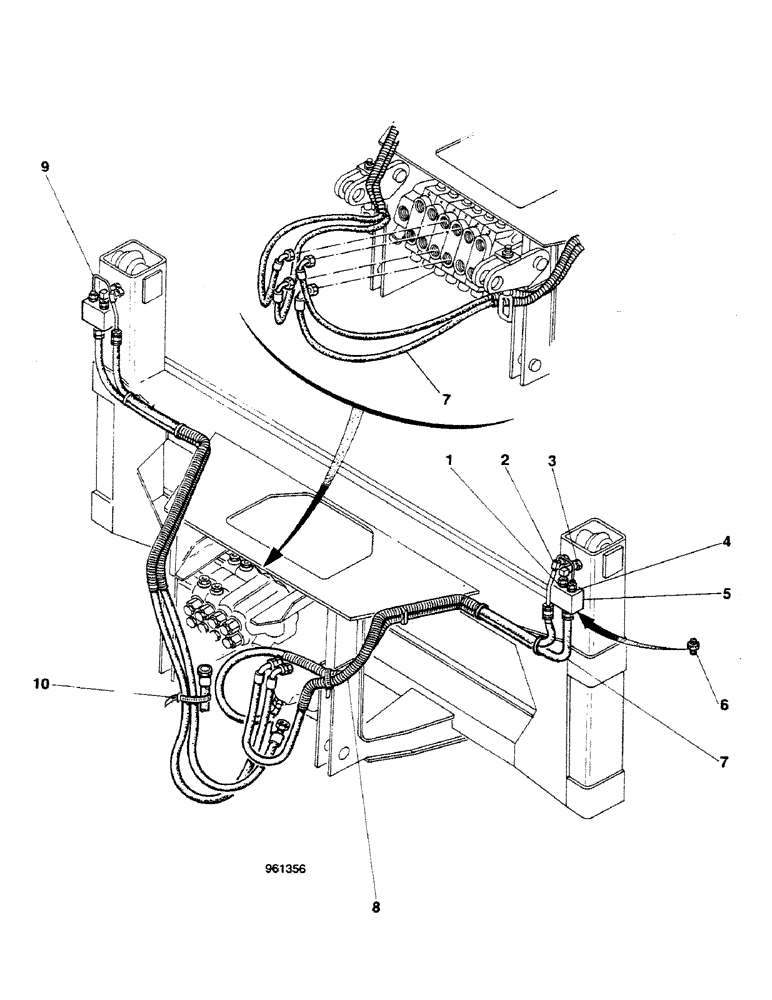

Запчасти Case 580G (245A) - SIDESHIFT BACKHOE - STABILIZER CYLINDER CHECKS STARTING FROM 3.947.280 (08) - HYDRAULICS

1

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

, Serial Range: -3.951.079

2шт.

1

E45949

ADAPTER, Includes: Ref. 1, Serial Range: 3.951.080-3.951.532

2шт.

1

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

, Serial Range: 3.951.080-3.951.532

1шт.

1

E45956

CONNECTOR, ELEC

CONNECTOR Includes: Ref. 1, Start Serial: 3.951.533

2шт.

1

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 3.951.533

1шт.

2

E45731

TUBE

RH

1шт.

3

D120756

ELBOW

Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 4

2шт.

4

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

5

REF

INSTRUCTION

VALVE check, See Figure 302

2шт.

6

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 6, Serial Range: -3.951.532

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

, Serial Range: -3.951.532

1шт.

6

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 6, Start Serial: 3.951.533

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 3.951.533

1шт.

7

E45743

HOSE

SPARE PART, Serial Range: -3.948.949

4шт.

7

E45742

HOSE

SPARE PART, Start Serial: 3.948.950

4шт.

8

E45604

LOOM

SLEEVE

4шт.

9

E45732

TUBE

LH

1шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.
