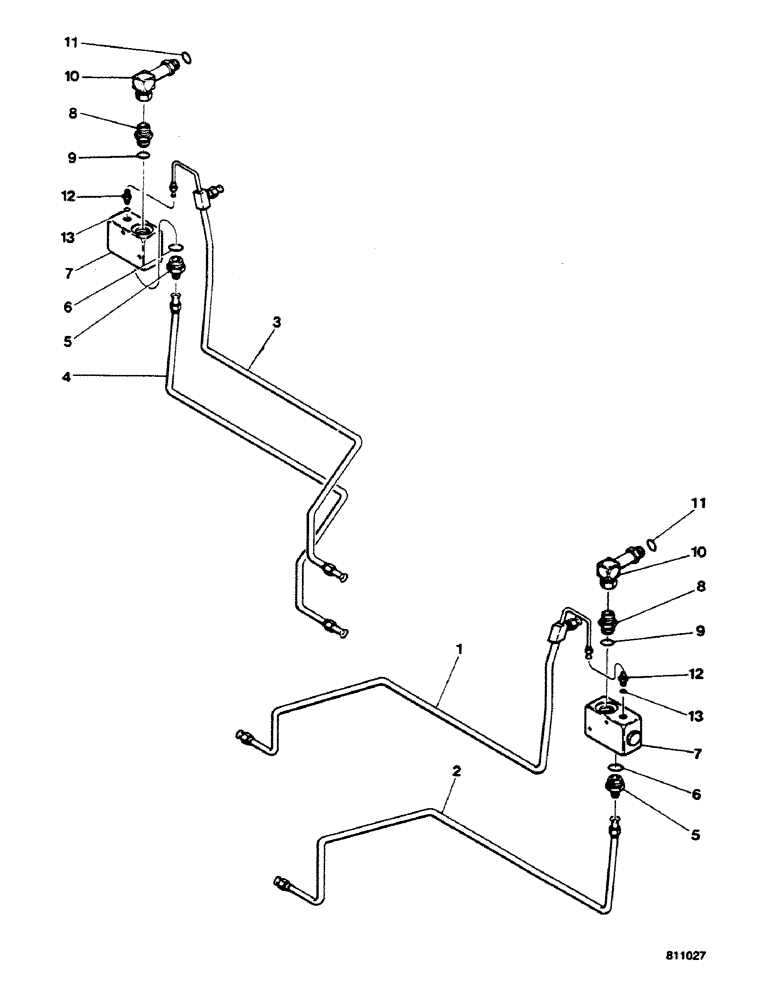

Запчасти Case 580G (244) - SIDESHIFT BACKHOE - STABILIZER CYLINDER CHECKS UP TO NO. 3.947.279 (08) - HYDRAULICS

1

D92773

TUBE

SPARE PART

1шт.

2

D92778

TUBE

SPARE PART

1шт.

3

D92783

TUBE

SPARE PART

1шт.

4

D92786

TUBE

SPARE PART

1шт.

5

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 6

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

REF

INSTRUCTION

VALVE check, See Figure 302

2шт.

8

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 9

2шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

D120756

ELBOW

Includes: Ref. 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref. 13

2шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.
