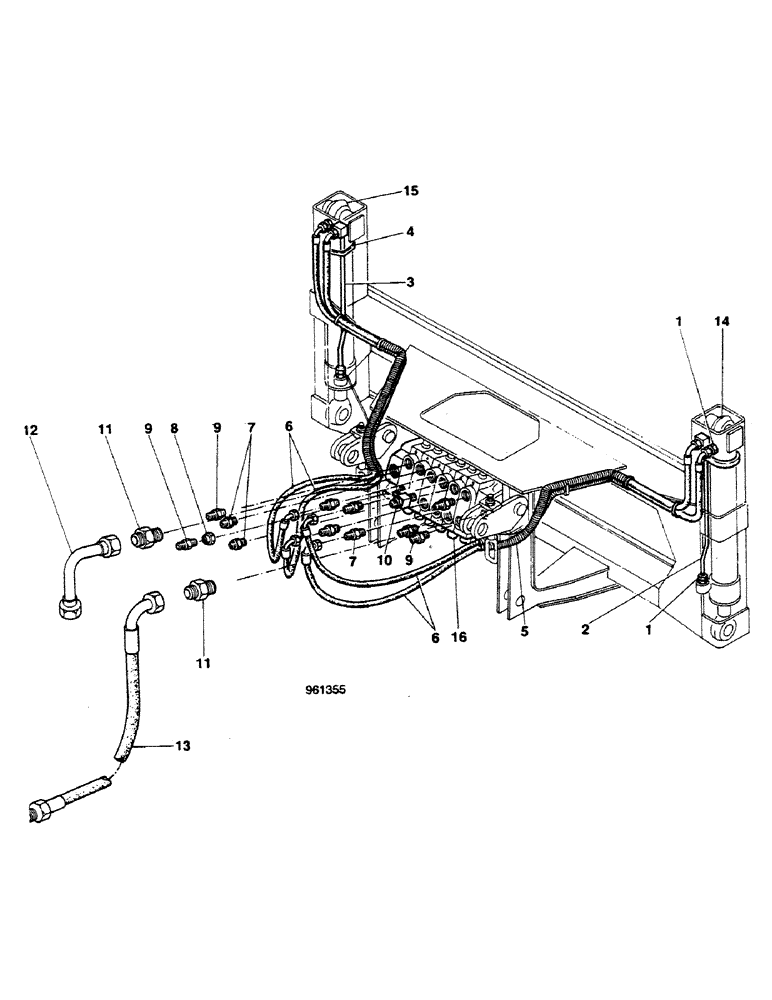

Запчасти Case 580G (243E) - SIDESHIFT BACKHOE - STABILIZER CYLINDER HYDRAULIC CIRCUIT UP TO NO. 3.948.950 (08) - HYDRAULICS

1

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 1

4шт.

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

2

D76595

TUBE,12 mm OD x 15, 642.8 mm L

1шт.

3

D76597

TUBE,12 mm OD x 15, 642.8 mm L

1шт.

4

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

5

E45604

LOOM

SLEEVE

4шт.

6

E45534

HOSE

4шт.

7

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 7

6шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

D93207

FITTING

restrictor (boom)

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 9

5шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

218-5589

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 1/2"-20

Includes: Ref. 10

1шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

12

E45451

PIPE

1шт.

13

E45453

HOSE

1шт.

14

REF

INSTRUCTION

CYLINDER RH, See Figure 322

1шт.

15

REF

INSTRUCTION

CYLINDER LH, See Figure 322

1шт.

16

REF

INSTRUCTION

VALVE control, See Figure 291A - 291C

1шт.
