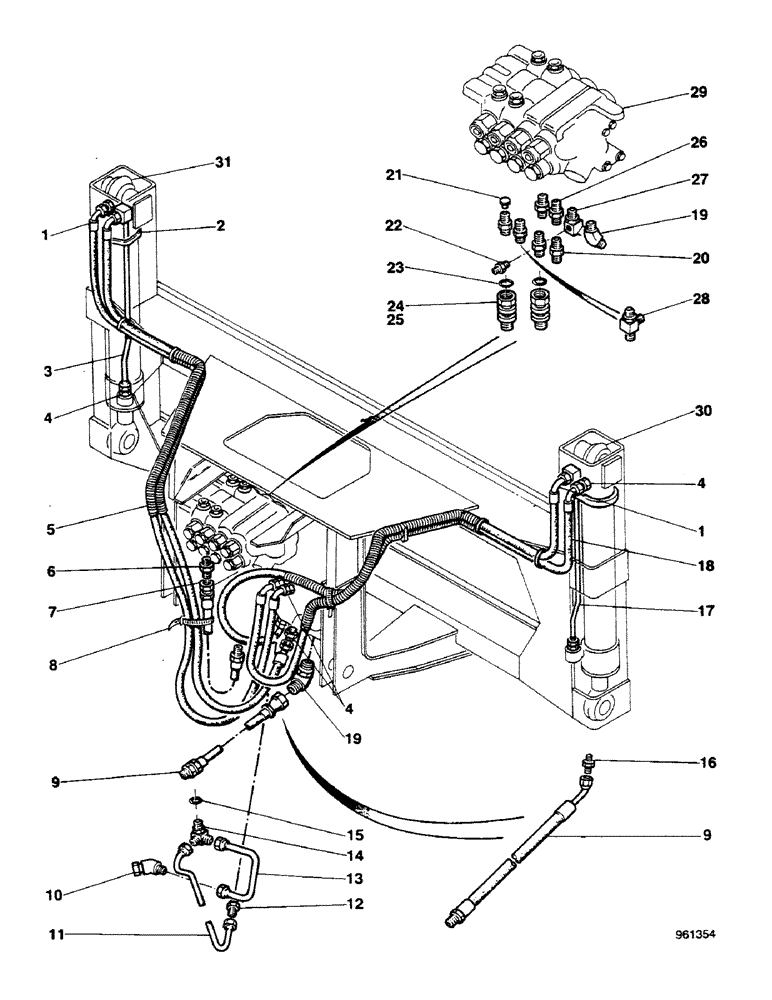

Запчасти Case 580G (243C) - SIDESHIFT BACKHOE - STABILIZER CYLINDER HYDRAULIC CIRCUIT- FROM NO. 3.947.280 UP TO NO. 3.948.949 (08) - HYDRAULICS

1

E45702

HOSE

3шт.

2

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

3

D76597

TUBE,12 mm OD x 15, 642.8 mm L

1шт.

4

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 4

8шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

E45604

LOOM

SLEEVE

4шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 6

1шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

E44664

HOSE

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

9

D120301

HOSE

1шт.

E46110 + 218-5138

1шт.

9

E46110

HOSE

1шт.

10

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

elbow

1шт.

11

E44359

TUBE

1шт.

11

E44361

TUBE

(For extendahoe)

1шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: Ref. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

D91994

TUBE

SPARE PART

1шт.

14

D121141

FITTING

SPARE PART elbow, Includes: Ref. 15, Not for hydraulic boom - lock See Figure 266

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 16, If used

1шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

D76595

TUBE,12 mm OD x 15, 642.8 mm L

1шт.

18

E45703

HOSE

1шт.

19

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

2L

2шт.

19

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

5L, Includes: Ref. 19

3шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

2L

4шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

5L, Incl. Ref. 20

3шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

D93207

FITTING

restrictor (boom)

1шт.

22

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

2L

1шт.

24

D123170

COUPLING, BREAK AWAY

NIPPLE

2шт.

25

D123169

COUPLING, BREAK AWAY

Includes: Ref. 25

2шт.

25

N7484

SEAL

1шт.

26

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 26

2шт.

26

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

D90183

FITTING

2L, Includes: Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

218-5589

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 1/2"-20

5L, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

30

REF

INSTRUCTION

CYLINDER RH, See Figure 322

1шт.

31

REF

INSTRUCTION

CYLINDER LH, See Figure 322

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.
