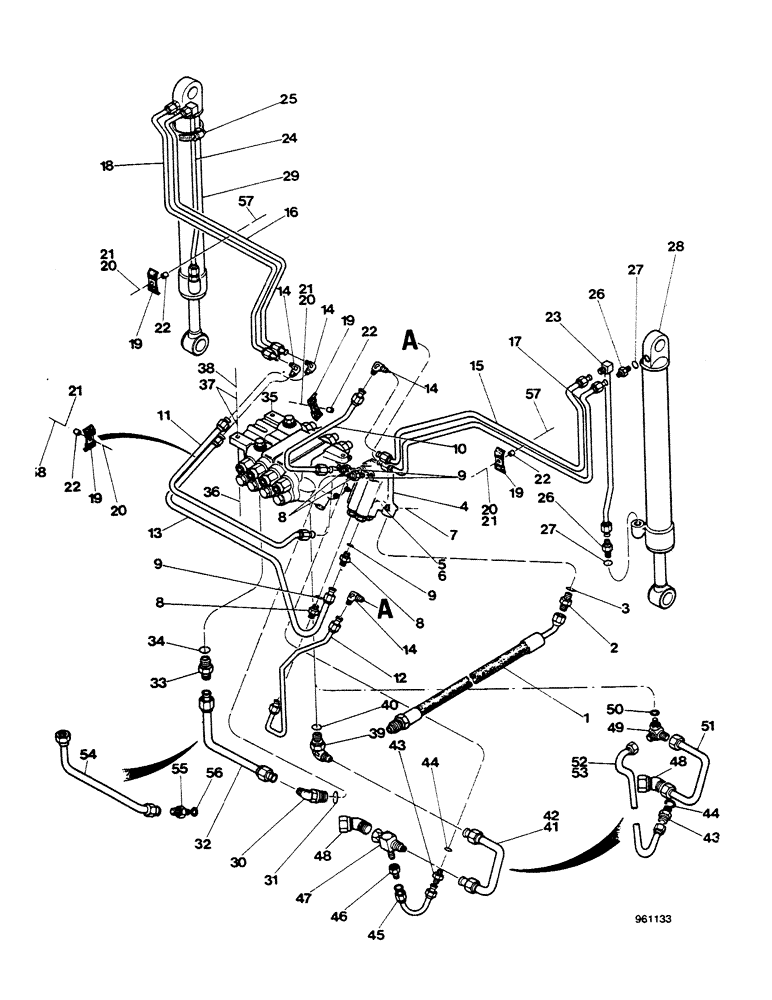

Запчасти Case 580G (242) - SIDESHIFT BACKHOE - STABILIZER CYLINDER HYDRAULIC CIRCUIT UP TO 3.947.279 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
D120301
HOSE
E46110 + 218-5138 (See Figure 243C)
1шт.
2
218-5050
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. Ref. 3, E46110 + 218-5138 (See Figure 243C)
1шт.
3
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
4
REF
INSTRUCTION
VALVE control, See Figure 286
1шт.
5
13-544
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5
2шт.
6
19521
WASHER flat
4шт.
7
131-651
NUT,5/16"-18, GB
NUT
2шт.
9
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
10
D91460
TUBE,0.5" OD
1шт.
11
E44357
TUBE
1шт.
12
D89460
TUBE,0.5" OD
1шт.
13
E44355
TUBE
1шт.
14
218-474
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC
4шт.
15
D89462
TUBE,12.7 mm OD x 666, 485 mm L
1шт.
16
D89669
TUBE,12.7 mm OD x 666, 485 mm L
1шт.
17
D89671
TUBE,12.7 mm OD x 700, 519 mm L
1шт.
18
D89464
PIPE
1шт.
19
A13622
PLATE, LOCKING
CLAMP
4/6шт.
20
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
4/2шт.
20
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
2шт.
21
92-6
LOCK WASHER,3/8"
4шт.
22
D76208
SPACER
4шт.
23
D76595
TUBE,12 mm OD x 15, 642.8 mm L
1шт.
24
D76597
TUBE,12 mm OD x 15, 642.8 mm L
1шт.
25
214-267
HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm
2шт.
27
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
28
REF
INSTRUCTION
CYLINDER RH, See Figure 322
1шт.
29
REF
INSTRUCTION
CYLINDER LH, See Figure 322
1шт.
30
218-5147
ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 31, Serial Range: -3.915.084
1шт.
31
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
, Serial Range: -3.915.084
1шт.
32
D91977
TUBE
D120947 + 218-5050, Serial Range: -3.915.084
1шт.
33
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. Ref. 34
1шт.
34
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
1шт.
35
REF
INSTRUCTION
VALVE control, See Figure 288
1шт.
36
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
37
95-8
WASHER,1/2"
flat
6шт.
38
131-654
LOCK NUT,1/2"-13, GB
3шт.
39
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. Ref. 40, Serial Range: -3.915.084
1шт.
40
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
, Serial Range: -3.915.084
1шт.
41
D91981
PIPE
, Serial Range: -3.915.084
1шт.
42
D91994
TUBE
SPARE PART For extendahoe, Serial Range: -3.915.084
1шт.
43
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
Includes: Ref. 44
1шт.
44
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
45
D92309
TUBE
, Serial Range: -3.915.084
1шт.
46
218-785
REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male
, Serial Range: -3.915.084
1шт.
47
218-5216
TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12
, Serial Range: -3.915.084
1шт.
48
218-5176
ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC
elbow
1шт.
49
D121141
FITTING
SPARE PART elbow, Includes: Ref. 50, Not for hydraulic boom - lock, See Figure 266, Start Serial: 3.915.085
1шт.
50
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
, Start Serial: 3.915.085
1шт.
51
D91994
TUBE
SPARE PART, Start Serial: 3.915.085
1шт.
52
D120943
TUBE
E44359, If used, Start Serial: 3.915.085
1шт.
52
E44359
TUBE
, Start Serial: 3.915.085
1шт.
53
D120945
PIPE
(For extendahoe), E44361, Start Serial: 3.915.085
1шт.
53
E44361
TUBE
(For extendahoe), Start Serial: 3.915.085
1шт.
54
D120947
PIPE
E44664, Start Serial: 3.915.085
1шт.
54
E44664
HOSE
1шт.
55
218-5050
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
E44359, Incl. Ref. 56, If used, Start Serial: 3.915.085
1шт.
56
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
, Start Serial: 3.915.085
1шт.
57
25-226
SQUARE NUT,Sq, 3/8"-16
, Start Serial: 3.915.085
2шт.
58
25-106
NUT,3/8"-16, G5
, Start Serial: 3.915.085
2шт.
