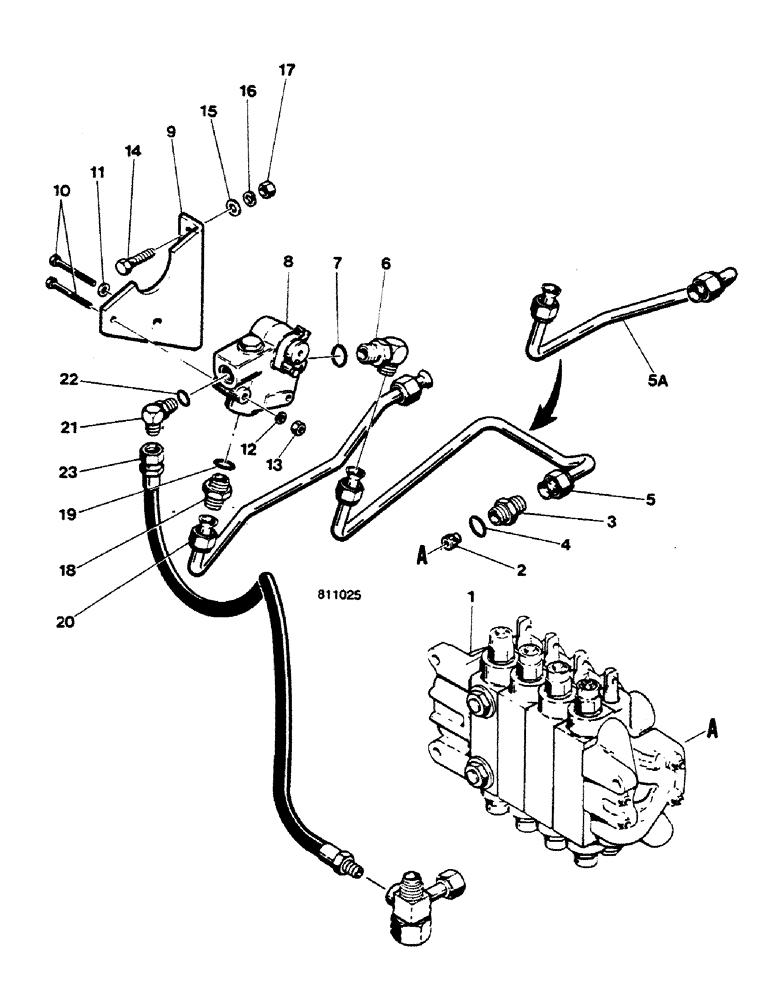

Запчасти Case 580G (240) - AXIAL BACKHOE - BOOM LOCK HYDRAULIC CIRCUIT, AGUILON (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

D93207

FITTING

restrictor

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

D88619

HYD TUBE,0.75" OD

5L

1шт.

5a

D91878

TUBE,0.75" OD

SPARE PART 2L

1шт.

6

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

VALVE, See Figure 308

1шт.

9

D89347

BRACKET

SPARE PART

1шт.

10

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

11

195-25

WASHER,3/8"

1шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

2шт.

14

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

15

95-8

WASHER,1/2"

flat

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

25-108

NUT,1/2"-13, G5

2шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

D88621

TUBE,0.75" OD

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 22

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

D89350

HOSE

1шт.
