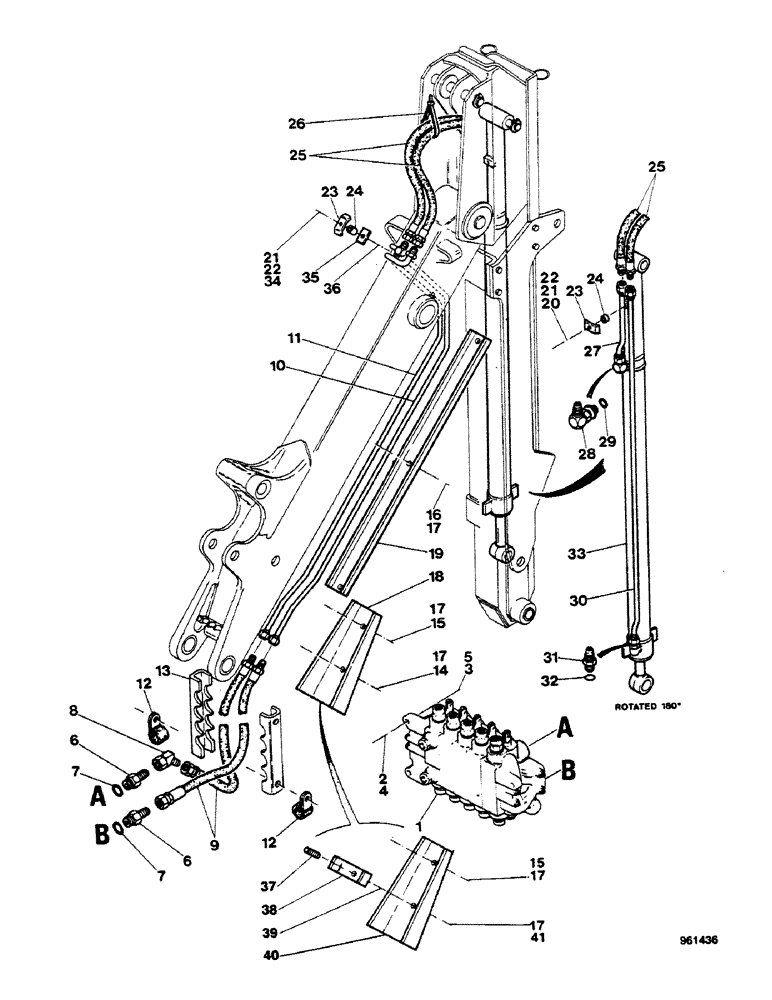

Запчасти Case 580G (238) - AXIAL BACKHOE - EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE control, See Figure 288
1шт.
2
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
3шт.
3
92-8
LOCK WASHER,1/2"
3шт.
4
95-8
WASHER,1/2"
flat
3шт.
5
25-108
NUT,1/2"-13, G5
3шт.
6
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. Ref. 7
2шт.
7
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
8
218-5175
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC
elbow
1шт.
9
D93649
HOSE,12.7mm ID x 1200mm L, SAE 100R2
2шт.
9
E44990
GUARD
SLEEVE (Not shown)
1шт.
10
D93646
HYD TUBE
1шт.
11
D93648
HYD TUBE
1шт.
12
S88820
CLAMP
2шт.
13
REF
INSTRUCTION
CLAMP (See Figure 236)
2шт.
14
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
1шт.
15
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
1шт.
16
13-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
3шт.
17
95-8
WASHER,1/2"
flat
5шт.
18
D93678
GUARD
1шт.
D93677 + D45576 + D133395 + 25-268 + 25-108
1шт.
19
D54137
GUARD
1шт.
20
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
21
92-6
LOCK WASHER,3/8"
2шт.
22
195-25
WASHER,3/8"
2шт.
23
D42504
CLAMP
2шт.
24
D76209
SPACER
2шт.
25
D32284
HOSE,12.7mm ID x 1016mm L, SAE 100R2
2шт.
26
L18331
CABLE TIE,375.9mm L, Nylon, Black
CABLE STRAP
1шт.
27
D52572
TUBE
1шт.
28
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
Incl. Ref. 29
1шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
30
D52574
TUBE
1шт.
31
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
Includes: Ref. 32
1шт.
32
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
33
REF
INSTRUCTION
CYLINDER, See Figure 334
1шт.
34
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
35
D76302
BLOCK
1шт.
36
25-226
SQUARE NUT,Sq, 3/8"-16
1шт.
37
D133395
STUD
1шт.
38
D45576
CLAMP
1шт.
39
25-268
NUT,1/2"-13, G5, High
1шт.
40
D93677
GUARD
1шт.
41
25-108
NUT,1/2"-13, G5
1шт.
Выбрано товаров: 43
