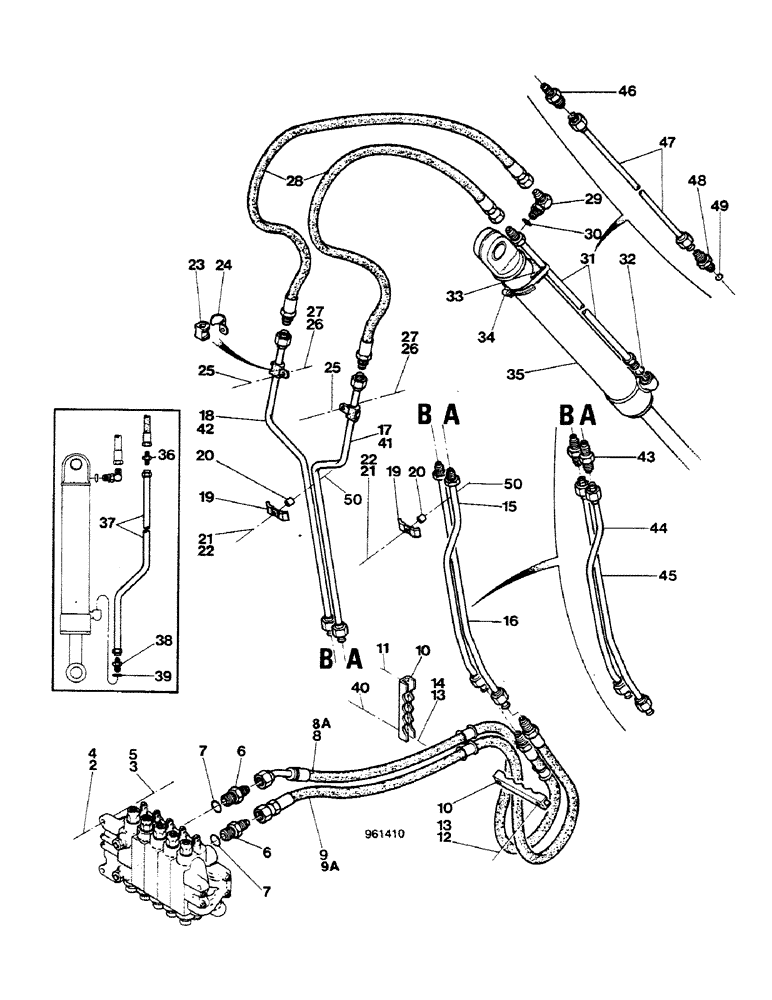

Запчасти Case 580G (236) - AXIAL BACKHOE - BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat

3шт.

5

25-108

NUT,1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8 **

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

E46098

1шт.

8

E46098

HOSE

1шт.

8a

E44983

PLASTIC-RUBBER TUBE

(Not shown)

1шт.

9 *1

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

E46099

1шт.

9

E46099

HOSE

1шт.

9a

E44983

PLASTIC-RUBBER TUBE

(Not shown)

1шт.

10

D92721

CLAMP

2шт.

11

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

2шт.

15

D89502

HYD TUBE,19.05 mm OD x 90, 971 mm L

, Serial Range: -3.918.421

1шт.

16

D89500

HYD TUBE,19.05 mm OD x 1001, 101 mm L

, Serial Range: -3.918.421

1шт.

17

D77848

TUBE

RH, Serial Range: -3.918.421

1шт.

18

D77846

TUBE

LH, Serial Range: -3.918.421

1шт.

19

D40236

CLAMP

2шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

D74182

GROMMET,3/4" ID x 1.46" L

insulator

2шт.

24

D74192

CLAMP

2шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

26

195-25

WASHER,3/8"

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

2шт.

28

D52566

HOSE

2шт.

29

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

elbow, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

D55050

HOSE

.5L, Up to, Includes: Ref. 32

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.5L, Up to

1шт.

33

D38648

BLOCK

spacer

1шт.

34

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

35

REF

INSTRUCTION

CYLINDER, See Figure 332

1шт.

36

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2L

1шт.

37

D92158

HYD TUBE,19.05 mm OD x 92, 799 mm L

2L

1шт.

38

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2L, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2L

1шт.

40

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

41

D123139

TUBE

RH, Start Serial: 3.918.422

1шт.

42

D123145

TUBE

LH, Start Serial: 3.918.422

1шт.

43

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

, Start Serial: 3.918.422

2шт.

44

D123141

TUBE

, Start Serial: 3.918.422

1шт.

45

D123143

TUBE

, Start Serial: 3.918.422

1шт.

46

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

.5L, Starting from No.

1шт.

47

D123159

TUBE

.5L, Starting from No.

1шт.

48

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

.5L, Starting from No., Includes: Ref. 49

1шт.

49

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

.5L, Starting from No.

1шт.

50

25-226

SQUARE NUT,Sq, 3/8"-16

2шт.
