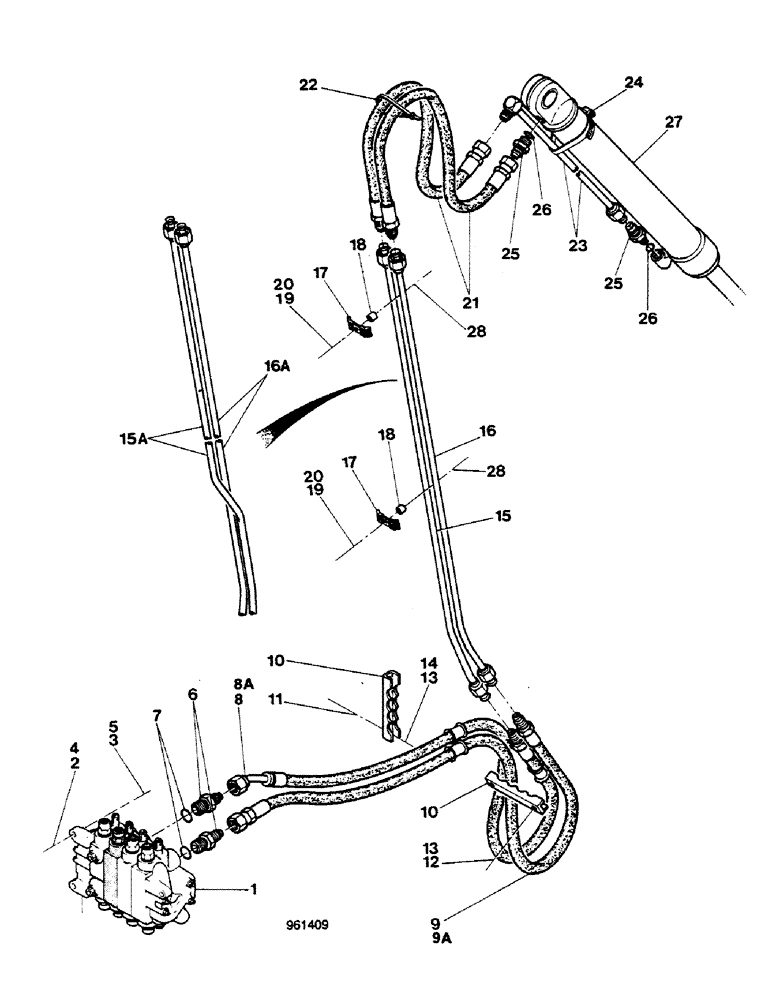

Запчасти Case 580G (234) - AXIAL BACKHOE - BUCKET CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat

3шт.

5

25-108

NUT,1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

E46098

1шт.

8

E46098

HOSE

1шт.

8a

E44983

PLASTIC-RUBBER TUBE

(Not shown)

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

E46099

1шт.

9

E46099

HOSE

1шт.

9a

E44983

PLASTIC-RUBBER TUBE

(Not shown)

1шт.

10

D92721

CLAMP

2шт.

11

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

2шт.

15

D91696

TUBE

5L

1шт.

15a

D120598

TUBE

2L

1шт.

16

D91698

TUBE

5L

1шт.

16a

D120596

TUBE

2L

1шт.

17

D40236

CLAMP

2шт.

18

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2шт.

19

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

D50372

HOSE

2шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

23

D58609

TUBE

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.

25

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

27

REF

INSTRUCTION

CYLINDER, See Figure 332

1шт.

28

25-226

SQUARE NUT,Sq, 3/8"-16

2шт.
