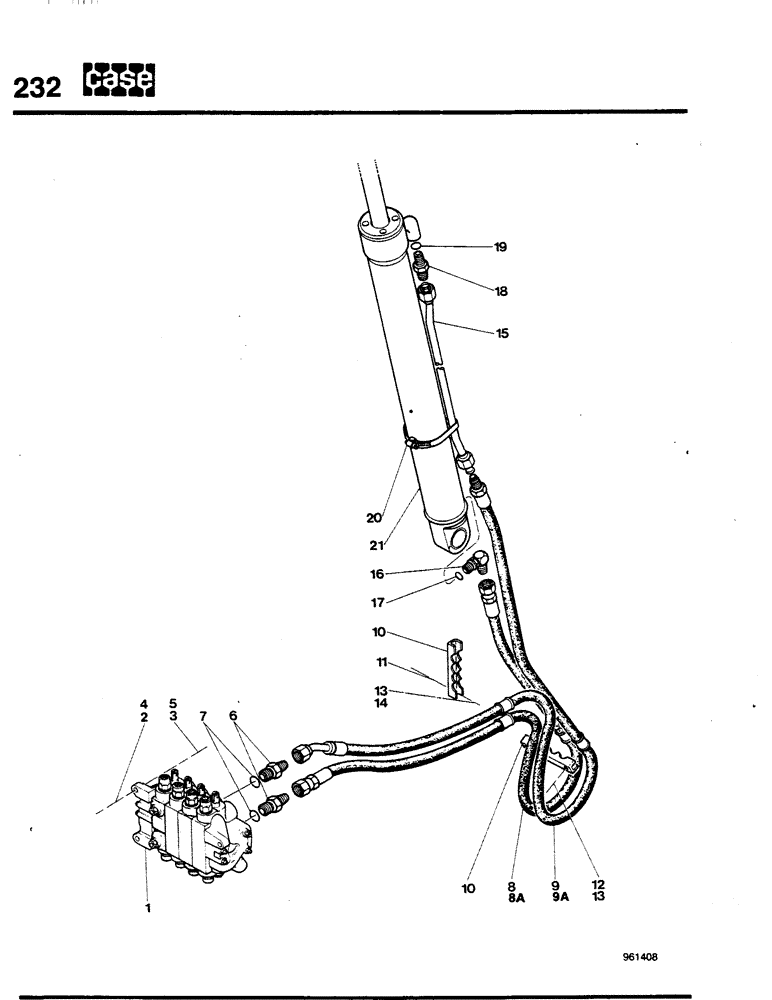

Запчасти Case 580G (232) - AXIAL BACKHOE - DIPPER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat

3шт.

5

25-108

NUT,1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

D88976

HOSE,15.88mm ID x 1820mm L, SAE 100R2

E46101

1шт.

8

E46101

HOSE

1шт.

8a

E44983

PLASTIC-RUBBER TUBE

(Not shown)

1шт.

9

D88975

HOSE,15.88mm ID x 2000mm L, SAE 100R2

E46100

1шт.

9

E46100

HOSE

1шт.

9a

E44983

PLASTIC-RUBBER TUBE

(Not shown)

1шт.

10

D92721

CLAMP

2шт.

11

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

2шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

2шт.

15

D50379

TUBE

1шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

elbow, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

21

REF

INSTRUCTION

CYLINDER, See Figure 330

1шт.
