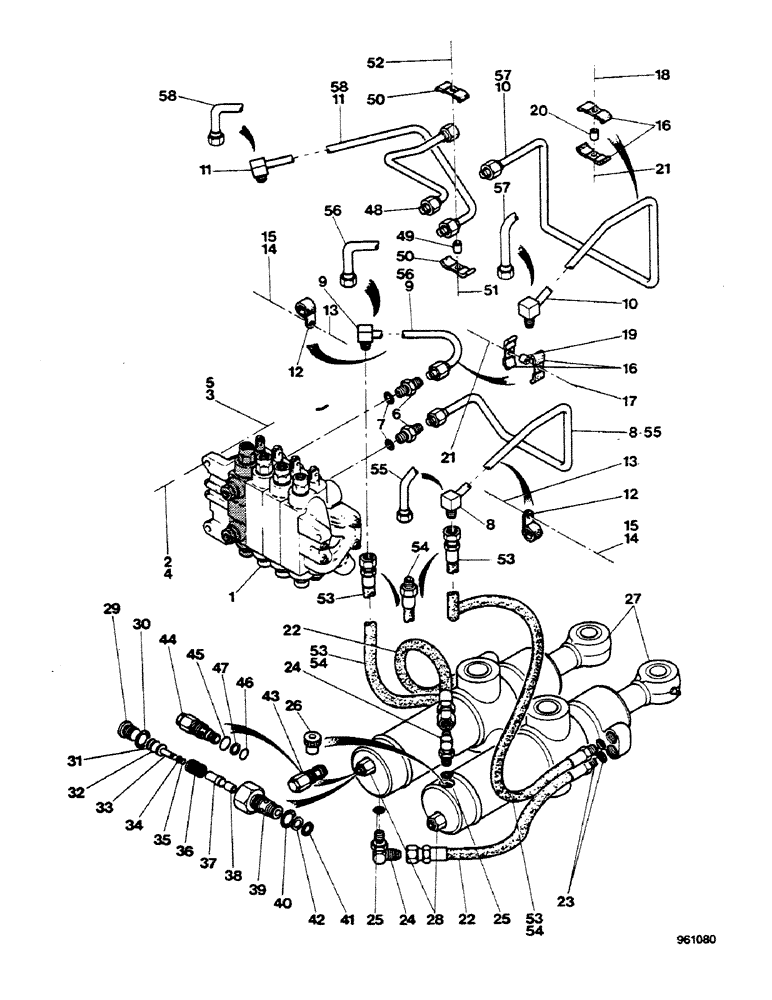

Запчасти Case 580G (224) - AXIAL BACKHOE - SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

2

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

95-8

WASHER,1/2"

flat

3шт.

5

25-108

NUT,1/2"-13, G5

3шт.

6

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 7

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

D88960

TUBE

5L

1шт.

D94546 + D94547

1шт.

9

D88962

TUBE

5L

1шт.

D94544 + D94547

1шт.

10

D91821

TUBE

2L

1шт.

D121681 + D94547

1шт.

11

D91819

HYD TUBE,15.88 mm OD x 343, 161 mm L

2L

1шт.

D121679 + D94547

1шт.

12

T50103

CLAMP

2шт.

13

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

25-108

NUT,1/2"-13, G5

2шт.

16

D40236

CLAMP

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

1шт.

20

D34244

SPACER

1шт.

21

131-652

LOCK NUT,3/8"-16, GB

1шт.

22

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

Includes: Ref. 23

2шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 25

2шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D121828

VALVE

restrictor

2шт.

27

REF

INSTRUCTION

CYLINDER, See Figure 324

2шт.

28

D47557

VALVE

relief (Allen head type), Includes: Ref. 29 - 35

2шт.

29

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 30

1шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

D40355

SHIM,.005" Thk

1шт.

L36077

1шт.

32

16917

SHIM

.0105"

1шт.

L36077

1шт.

32

L36077

SHIM

1шт.

33

D37150

GUIDE

1шт.

34

D54860

RING

1шт.

35

A51274

O-RING,0.145" ID x 0.285" OD

1шт.

D47557

VALVE

relief, Includes: Ref. 36 - 42

2шт.

36

D37148

SPRING

1шт.

37

D37151

PLUNGER

1шт.

38

D37075

SEAT

1шт.

39

D47667

CAP

BODY

1шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

42

D37071

RING

backup

1шт.

43

D55017

VALVE

relief (hex. head type), Includes: Ref. 44 - 47

2шт.

44

NSS

NOT SOLD SEPARAT

BODY

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

46

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

47

D37071

RING

backup

1шт.

48

D120444

TUBE

2L

1шт.

49

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

2L

1шт.

50

R17319

CLAMP

2L

2шт.

51

131-4

LOCK NUT,5/16"-18, GB

2L

1шт.

52

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2L

1шт.

53

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

2шт.

Hose with one female end and one male end

1шт.

54

D94547

HOSE

2шт.

Hose with two male ends

1шт.

55

D94546

HYD TUBE

5L

1шт.

56

D94544

HYD TUBE,15.88 mm OD x 479, 70 mm L

5L

1шт.

57

D121681

TUBE

2L

1шт.

58

D121679

TUBE

2L

1шт.
