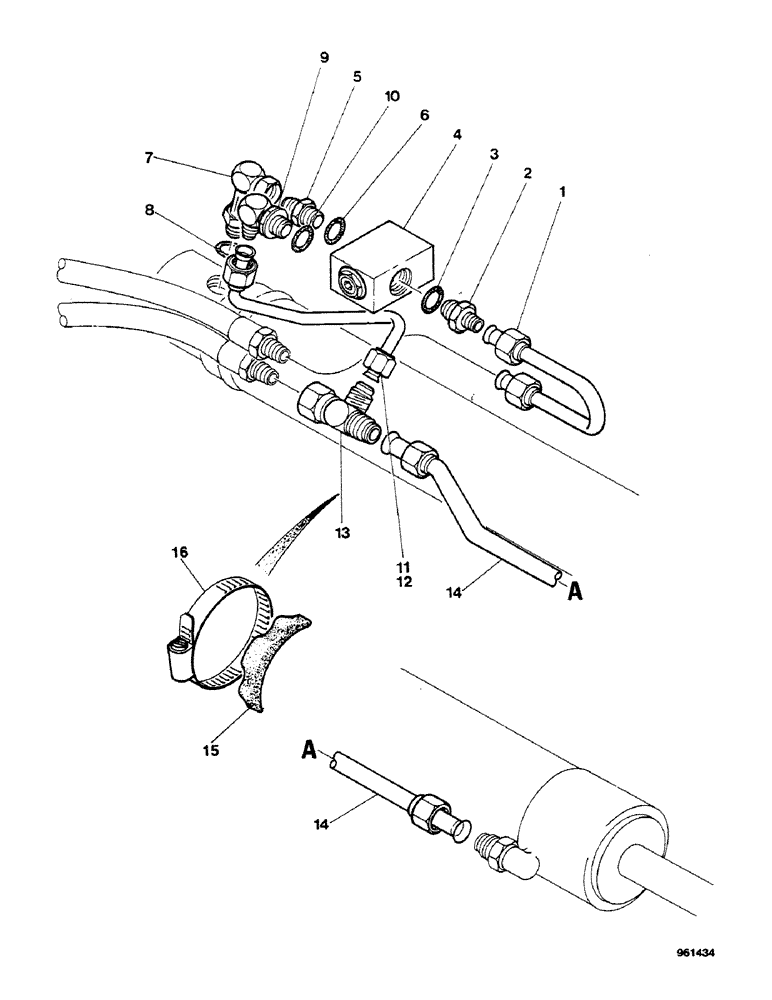

Запчасти Case 580G (222) - AXIAL BACKHOE - STABILIZER CYLINDER CHECK VALVES (08) - HYDRAULICS

1

D121395

TUBE

SPARE PART

2шт.

2

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 3, Serial Range: -3.951.532

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

, Serial Range: -3.951.532

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3, Start Serial: 3.951.533

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 3.951.533

1шт.

4

REF

INSTRUCTION

VALVE check, See Figure 302

2шт.

5

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 6, Serial Range: -3.951.532

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

, Serial Range: -3.951.532

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref. 6, Start Serial: 3.951.533

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

, Start Serial: 3.951.533

1шт.

7

D121491

FITTING

SPARE PART elbow

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

2шт.

10

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

D121719

TUBE

SPARE PART RH

1шт.

12

D121398

TUBE

SPARE PART LH

1шт.

13

218-5484

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run x 7/16"-20

2шт.

14

D121397

TUBE

2шт.

15

R24703

SUPPORT

spacer

2шт.

16

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

2шт.
