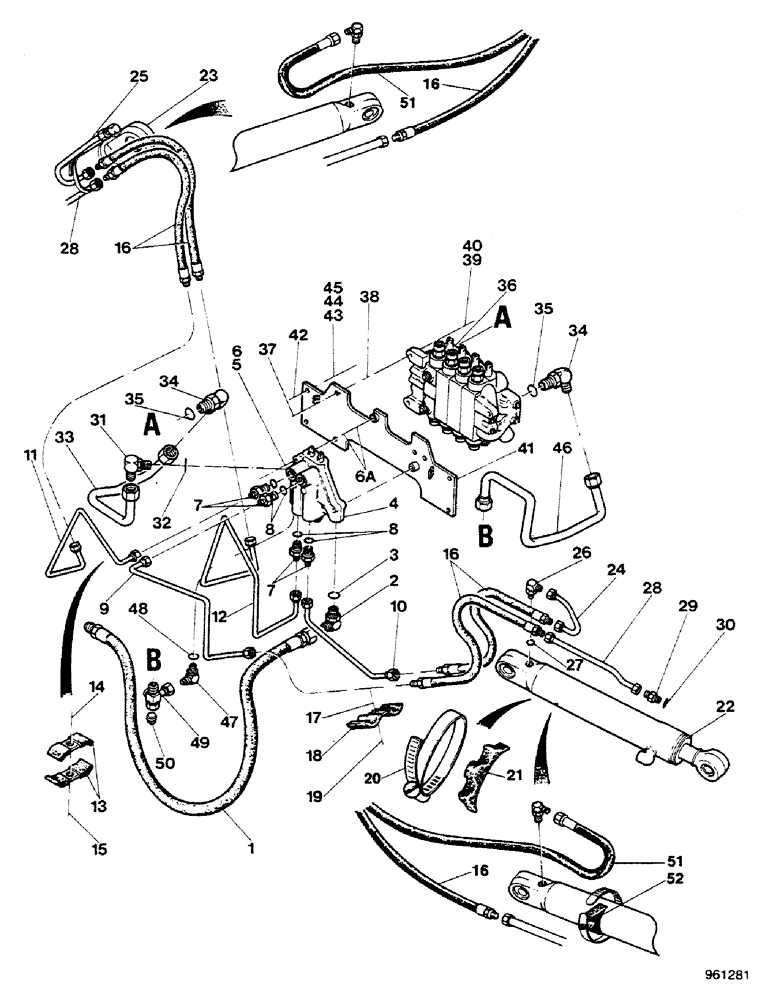

Запчасти Case 580G (218) - AXIAL BACKHOE - STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D66505

HOSE

1шт.

2

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 3

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

REF

INSTRUCTION

VALVE control, See Figure 286

1шт.

5

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

6a

195-21

WASHER,5/16"

Flat

4шт.

7

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 8

4шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

D121656

TUBE

1шт.

10

D121650

TUBE

1шт.

11

D121652

TUBE

1шт.

12

D121654

TUBE

1шт.

13

A12032

CLAMP

2шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

131-651

NUT,5/16"-18, GB

NUT

1шт.

16

D121658

HOSE,19.05mm ID x 450mm L, SAE 100R2

, Serial Range: -3.947.843

4шт.

16

D121658

HOSE,19.05mm ID x 450mm L, SAE 100R2

, Start Serial: 3.947.844

2шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

18

D40236

CLAMP

2шт.

19

131-652

LOCK NUT,3/8"-16, GB

2шт.

20

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

2шт.

21

R24703

SUPPORT

SPACER, Serial Range: -3.947.843

2шт.

22

REF

INSTRUCTION

CYLINDER RH, See Figure 320

1шт.

23

REF

INSTRUCTION

CYLINDER LH, See Figure 320

1шт.

24

D94488

HYD TUBE,0.5" OD

, Serial Range: -3.947.843

1шт.

25

D94490

HYD TUBE,0.5" OD

, Serial Range: -3.947.843

1шт.

26

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 27

2шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

28

D94486

HYD TUBE,12.7 mm OD x 420, 27 mm L

2шт.

29

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

31

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes: Ref. 32

1шт.

32

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

33

D93279

HYD TUBE,25.4 mm OD x 260, 211 mm L

1шт.

34

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 35

2шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

36

REF

INSTRUCTION

VALVE control, See Figure 288

1шт.

37

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

38

95-8

WASHER,1/2"

flat

3шт.

39

92-8

LOCK WASHER,1/2"

3шт.

40

25-108

NUT,1/2"-13, G5

3шт.

41

D94282

PLATE

1шт.

42

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

43

95-8

WASHER,1/2"

flat

4шт.

44

92-8

LOCK WASHER,1/2"

4шт.

45

25-108

NUT,1/2"-13, G5

4шт.

46

D93281

HYD TUBE,1" OD

1шт.

46

D93283

HYD TUBE,25.4 mm OD x 316, 268 mm L

ext

1шт.

47

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

elbow, Includes: Ref. 48

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

D120853

FITTING

SPARE PART

1шт.

50

221-15

PLUG,Sq Hd, 3/4"-14

(if used)

1шт.

51

R34485

HOSE

, Start Serial: 3.947.844

2шт.

52

D38648

BLOCK

spacer, Start Serial: 3.947.844

2шт.
