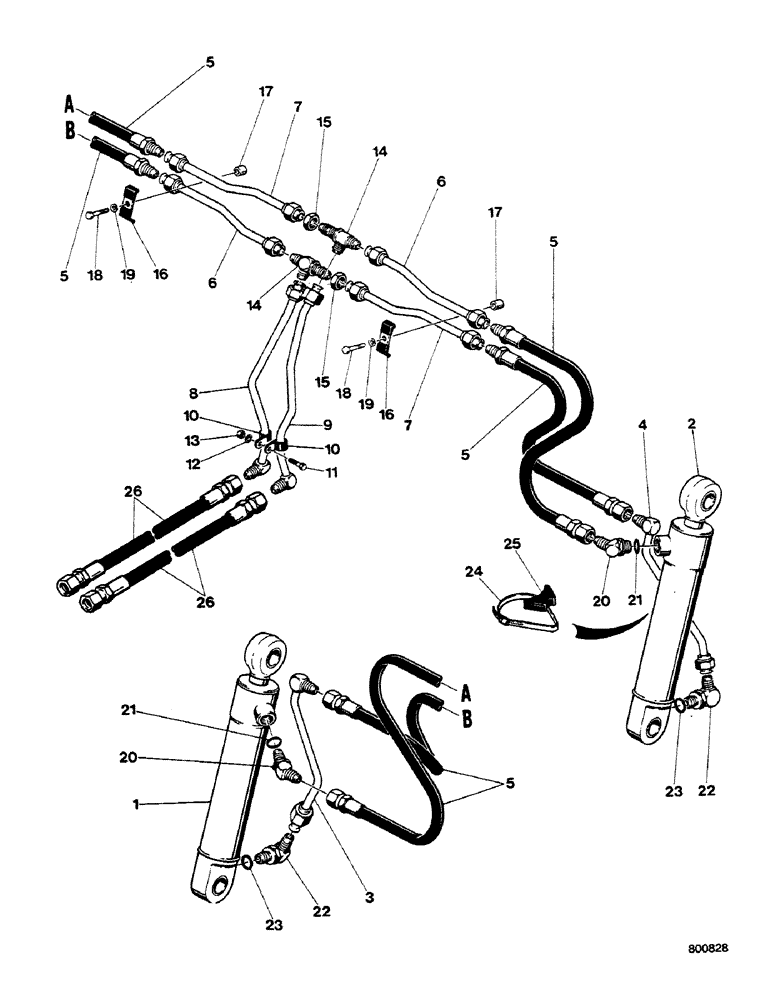

Запчасти Case 580G (216) - LOADER - 4-IN-1 CYLINDER HYDRAULIC CIRCUIT (SEE FIGURE 214) (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER LH, See Figure 318

1шт.

2

REF

INSTRUCTION

CYLINDER RH, See Figure 318

1шт.

3

D51619

TUBE

1шт.

4

D51621

TUBE

1шт.

5

38410

HOSE

4шт.

6

E35715

TUBE,0.625" OD x 26.38" L

2шт.

7

E35716

TUBE,0.625" OD x 27.36" L

2шт.

8

D51615

TUBE

1шт.

9

D51617

TUBE

1шт.

10

38188

CLAMP

2шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

92-5

LOCK WASHER,5/16"

1шт.

13

9635082

NUT,5/16" - 18, Gr 5

1шт.

14

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

2шт.

15

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

2шт.

16

D40236

CLAMP

2шт.

17

D33552

BUSHING

2шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

25

D38648

BLOCK

insulator

2шт.

26

D51691

HOSE

2шт.

26

E37239

HOSE

with quick-hitch system

2шт.
