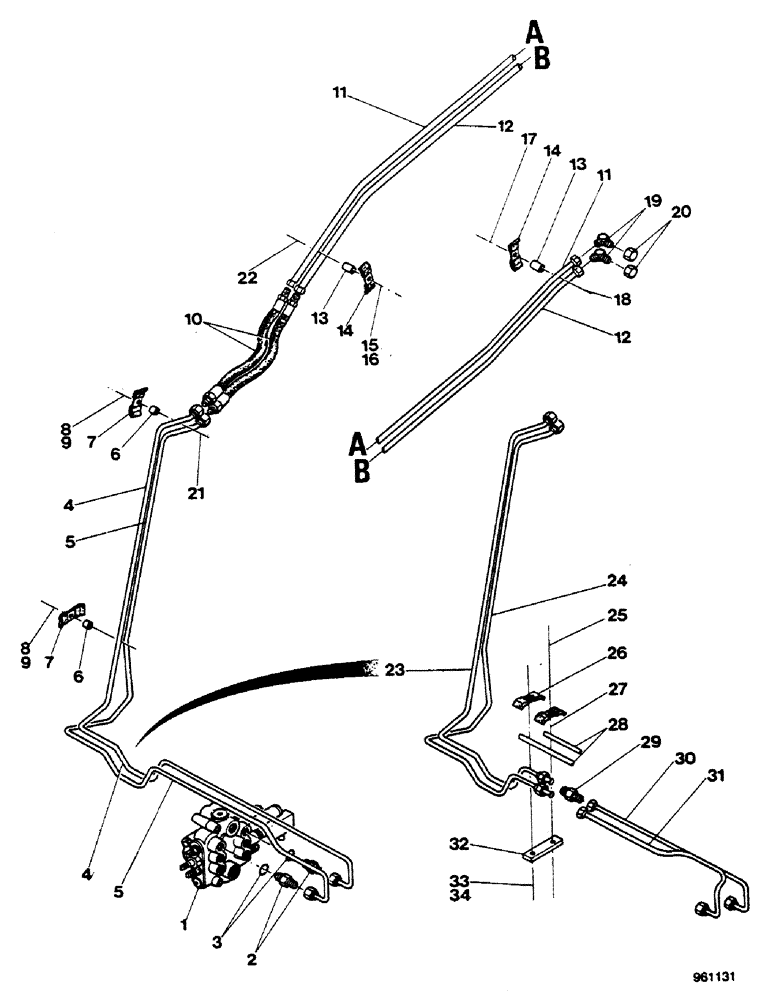

Запчасти Case 580G (214) - LOADER - 4-IN-1 CYLINDER HYDRAULIC CIRCUIT (SEE FIGURE 216) (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 272

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

D120818

TUBE

D123360 + D123362 + 218-736

1шт.

5

D91642

TUBE

D123356 + D123358 + 218-736

1шт.

6

D76209

SPACER

2шт.

7

D40236

CLAMP

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

10

E45235

HOSE

2шт.

11

D89408

TUBE

1шт.

12

D89410

PIPE

1шт.

13

D76208

SPACER

4шт.

14

R17319

CLAMP

4шт.

15

92-5

LOCK WASHER,5/16"

3шт.

16

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

17

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

18

131-4

LOCK NUT,5/16"-18, GB

1шт.

19

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

2шт.

20

218-755

CAP,37 Degree, 3/4"-16

2шт.

21

25-226

SQUARE NUT,Sq, 3/8"-16

2шт.

22

25-225

SQUARE NUT,Sq, 5/16"-24

3шт.

23

D123362

TUBE

1шт.

24

D123358

TUBE

1шт.

25

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

D40236

CLAMP

2шт.

27

D76209

SPACER

2шт.

28

REF

INSTRUCTION

TUBE (See Ref. 9 and 10 Figure 208)

2шт.

29

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

2шт.

30

D123360

TUBE

1шт.

31

D123356

TUBE

1шт.

32

D123384

BRACKET

SPARE PART

1шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

2шт.
