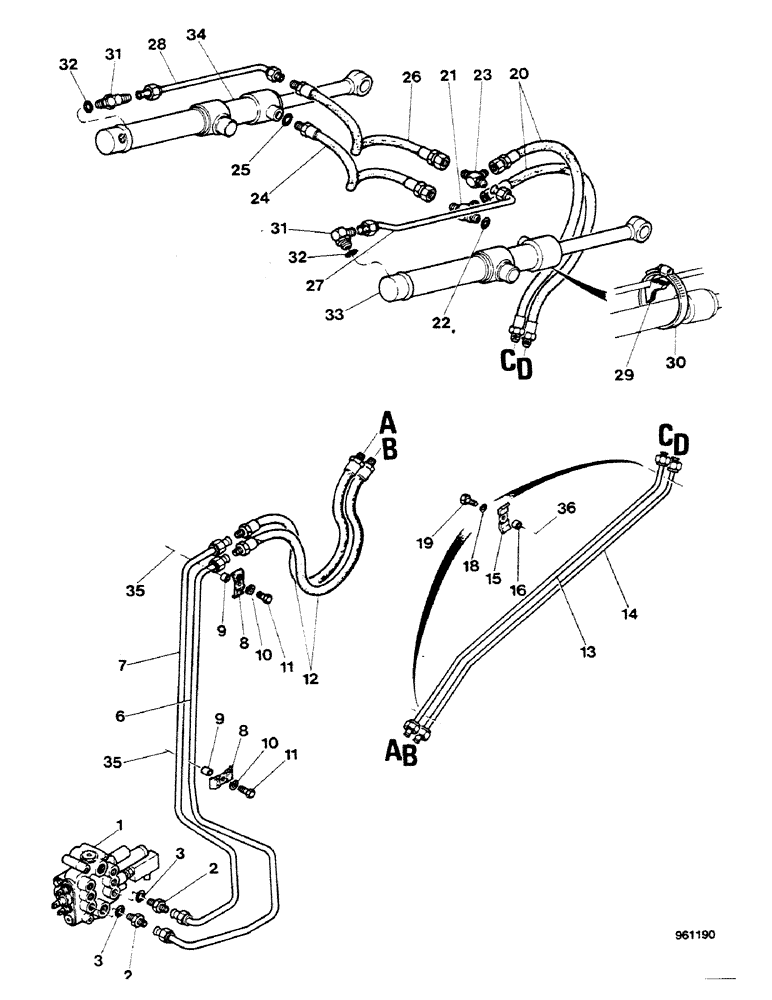

Запчасти Case 580G (212) - LOADER - TILT CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE control, See Figure 270 - 272

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

D120814

TUBE

1шт.

7

D120812

TUBE

1шт.

8

D40236

CLAMP

2шт.

9

D76209

SPACER

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

2шт.

12

E45235

HOSE

2шт.

13

D89256

PIPE

1шт.

14

D89254

TUBE

1шт.

15

R17319

CLAMP

3шт.

16

D76208

SPACER

3шт.

18

92-5

LOCK WASHER,5/16"

3шт.

19

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

20

D73244

HOSE

2шт.

21

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

218-586

TEE,37 Degree, 7/8"-14 x 3/4"-16, Run

1шт.

24

D67731

HOSE,12.7mm ID x 812.8mm L, SAE 100R2

Includes: Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D30543

HOSE,12.7mm ID x 736.6mm L, SAE 100R2

1шт.

27

D75601

TUBE

1шт.

28

D67617

TUBE

1шт.

29

D38648

BLOCK

spacer

2шт.

30

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

31

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 32

2шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

33

REF

INSTRUCTION

CYLINDER RH, See Figure 316

1шт.

34

REF

INSTRUCTION

CYLINDER LH, See Figure 316

1шт.

35

25-226

SQUARE NUT,Sq, 3/8"-16

2шт.

36

25-225

SQUARE NUT,Sq, 5/16"-24

3шт.
