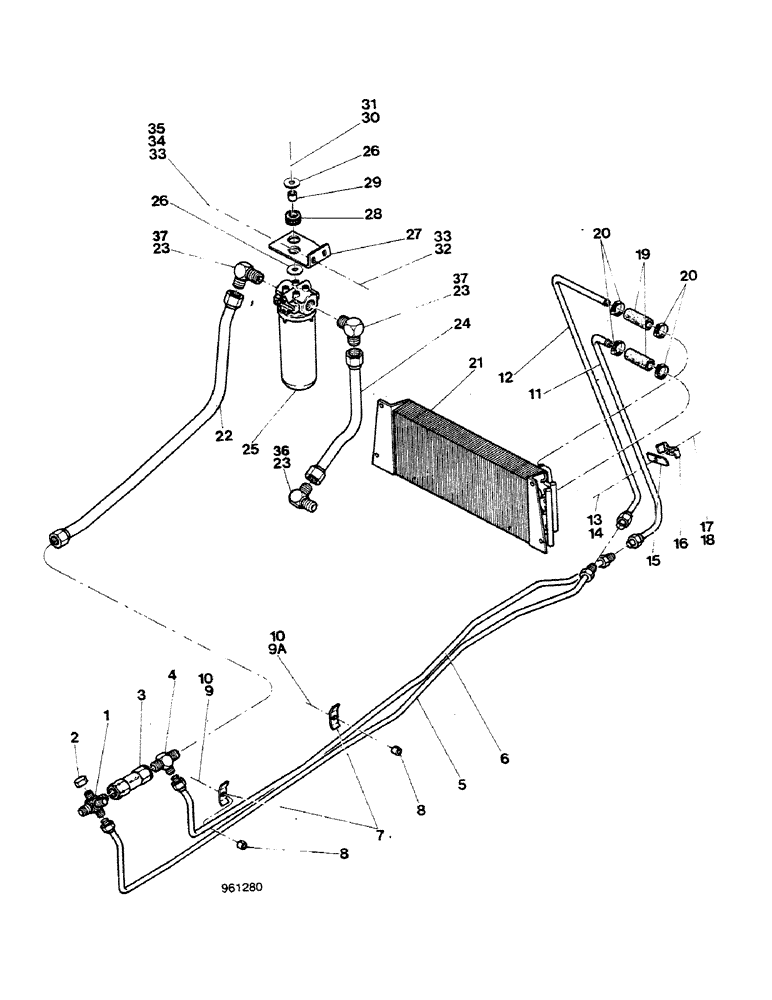

Запчасти Case 580G (206) - EQUIPMENT HYDRAULIC SYSTEM - OIL COOLER, RETURN LINES, AND FILTER (08) - HYDRAULICS

1

D93379

FITTING

SPARE PART, Serial Range: -3.938.062

1шт.

1

D126802

ELBOW

FITTING, Start Serial: 3.938.063

1шт.

2

218-756

CAP,37 Degree, 7/8"-14

, Serial Range: -3.938.062

1шт.

2

218-755

CAP,37 Degree, 3/4"-16

, Start Serial: 3.938.063

1шт.

3

D89332

VALVE

check

1шт.

4

218-1123

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Run

1шт.

5

D93401

TUBE

1шт.

6

D93398

TUBE

SPARE PART

1шт.

7

A13622

PLATE, LOCKING

CLAMP

2шт.

8

D76209

SPACER

2шт.

9

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Rear

1шт.

9a

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Front

1шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

D93394

TUBE

1шт.

12

D93406

TUBE

SPARE PART

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

195-21

WASHER,5/16"

Flat

1шт.

15

D62518

PLATE

SPARE PART

1шт.

16

D93623

CLAMP

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

1шт.

19

D55583

HOSE,12.7 mm ID x 101.60 mm, SAE 100R3

E45965

2шт.

19

E45965

LARGE HOSE

HOSE,LARGE

2шт.

20

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

4шт.

21

D90967

COOLER

oil, E46051

1шт.

21

E46051

COOLER

oil

1шт.

22

D89900

TUBE,25.4 mm OD x 446, 590 mm L

SPARE PART E45881

1шт.

22

E45881

PIPE

1шт.

23

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

elbow, Serial Range: -3.939.067

3шт.

24

D89902

HYD TUBE,25.4 mm OD x 354, 78 mm L

1шт.

25

REF

INSTRUCTION

FILTER, See Figure 312

1шт.

26

195-2042

WASHER,.469" x 1 1/2" x .134"

flat

4шт.

27

D89897

BRACKET

SPARE PART

1шт.

28

D132895

GROMMET

2шт.

29

D76209

SPACER

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

32

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

195-21

WASHER,5/16"

Flat

4шт.

34

92-5

LOCK WASHER,5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

2шт.

36

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

elbow

1шт.

Starting from No. 3.939.068 Except 3.939.196 Up to 3.939.240

1шт.

37

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

2шт.

Starting from No. 3.939.068 Except 3.939.196 Up to 3.939.240

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
