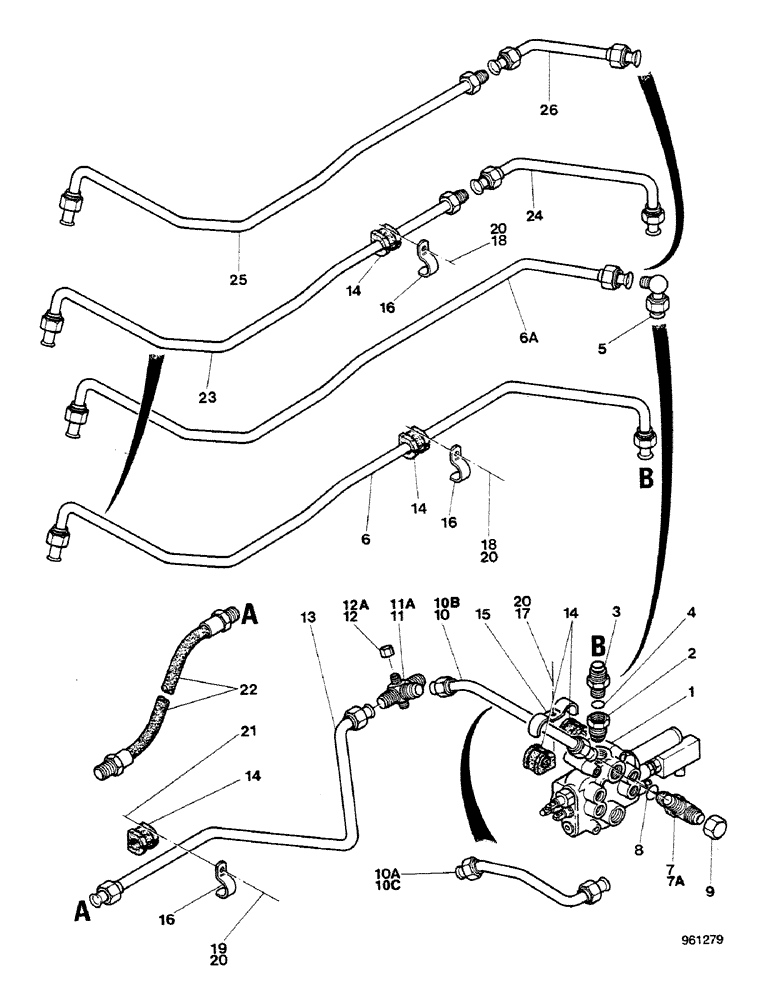

Запчасти Case 580G (204) - EQUIPMENT HYDRAULIC SYSTEM - REAR LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE control, See Figure 270 - 272
1шт.
2
REF
INSTRUCTION
SLEEVE, See Figure 270 - 272
1шт.
3
218-5050
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. Ref. 3
1шт.
4
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
5
D93831
FITTING
elbow 3T
1шт.
6
D120375
TUBE
2T, D121860 + 121858
1шт.
6a
D90562
TUBE
3T, D121860 + 121862
1шт.
7
218-5298
TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run
Includes: Ref. 8, Serial Range: -3.938.062
1шт.
7a
218-5239
TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Includes: Ref. 8, Start Serial: 3.938.063
1шт.
8
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
9
218-335
CAP,37 Degree, 1 1/16"-12
1шт.
10
D86783
TUBE
"0" 25,4 2T, Serial Range: -3.938.062
1шт.
10a
D121642
PIPE
SPARE PART "0" 25,4 3T, Serial Range: -3.938.062
1шт.
10b
E45402
PIPE
"0" 19,05 2T, Start Serial: 3.938.063
1шт.
10c
E45404
TUBE
SPARE PART "0" 19,05 3T, Start Serial: 3.938.063
1шт.
11
D93379
FITTING
SPARE PART, Serial Range: -3.938.062
1шт.
11a
D126802
ELBOW
FITTING, Start Serial: 3.938.063
1шт.
12
218-756
CAP,37 Degree, 7/8"-14
, Serial Range: -3.938.062
1шт.
13
D120441
TUBE
SPARE PART, Serial Range: -3.948.950
1шт.
13
E45583
TUBE
SPARE PART, Start Serial: 3.948.950
1шт.
13
E45583
TUBE
SPARE PART For D120441
1шт.
14
D67297
BLOCK
insulator
4шт.
15
D83594
CLAMP
If used
1шт.
16
D68846
CLAMP
2шт.
17
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
18
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
1шт.
19
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
1шт.
20
92-6
LOCK WASHER,3/8"
3шт.
21
25-106
NUT,3/8"-16, G5
1шт.
22
D120465
HOSE
1шт.
23
D121860
TUBE
2T
1шт.
24
D121858
TUBE
2T
1шт.
25
D121860
TUBE
3T
1шт.
26
D121862
TUBE
3T
1шт.
Выбрано товаров: 35
