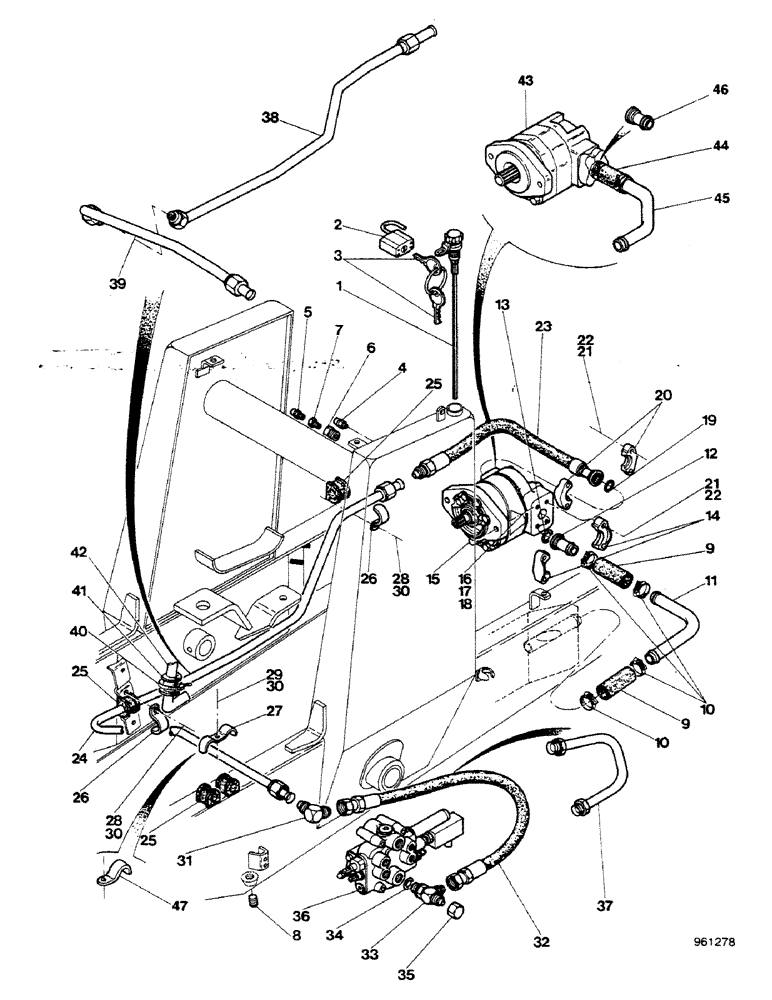

Запчасти Case 580G (202) - EQUIPMENT HYDRAULIC SYSTEM - RESERVOIR TO LOADER CONTROL (08) - HYDRAULICS

1

D94386

DIPSTICK

1шт.

2

D93753

PADLOCK

Includes: Ref. 3

1шт.

3

R29555

KEY

Master

2шт.

3

D93751

SET OF 2 KEYS

Yale

2шт.

4

D94060

VALVE

relief

1шт.

5

R15538

VALVE

breather

1шт.

6

D63506

ADAPTER

1шт.

7

D63543

BREATHER

FILTER

1шт.

8

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

drain, D123893

1шт.

8

D123893

PLUG

drain

1шт.

9

18361

HOSE,1.25" ID x 5.00", SAE 100R3

, Serial Range: 3.939.085-3.939.084

1-2шт.

10

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

11

D88385

HYD TUBE,31.8 mm OD x 160, 250 mm L

, Serial Range: -3.939.084

1шт.

12

D91849

PIPE

, Serial Range: -3.939.084

1шт.

13

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

1шт.

14

A12306

FLANGE

2шт.

15

REF

INSTRUCTION

PUMP hydraulic, See Figure 268 - 269C, Serial Range: -3.939.084

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

92-8

LOCK WASHER,1/2"

2шт.

18

195-33

WASHER,1/2"

flat

2шт.

19

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

20

A16961

FLANGE

2шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

D91848

HOSE

1шт.

24

D88386

PIPE

SPARE PART E44502 + E44504

1шт.

25

D67297

BLOCK

insulator

4шт.

26

D68846

CLAMP

2шт.

27

D83594

CLAMP

1шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

29

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

30

92-6

LOCK WASHER,3/8"

3шт.

31

218-478

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC

elbow

1шт.

32

D86791

HOSE

1шт.

33

218-5298

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Run

Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

36

REF

INSTRUCTION

VALVE control

1шт.

37

D121553

LINE

TUBE (if used)

1шт.

38

E44504

TUBE

SPARE PART

1шт.

39

E44502

TUBE

SPARE PART

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP tie, If used

1шт.

41

D67296

GROMMET

insulator, If used

1шт.

42

REF

INSTRUCTION

TUBE (See Ref. 7 Figure 110 - 114)

1шт.

43

REF

INSTRUCTION

PUMP hydraulic, See Figure 269C, Start Serial: 3.939.085

1шт.

44

E45793

LARGE HOSE

HOSE,LARGE, Start Serial: 3.939.085

1шт.

45

E45785

PIPE

, Start Serial: 3.939.085

1шт.

46

E45783

PIPE FITTING

, Start Serial: 3.939.085

1шт.

47

E45471

ROD

SPARE PART CLAMP, If used

1шт.
