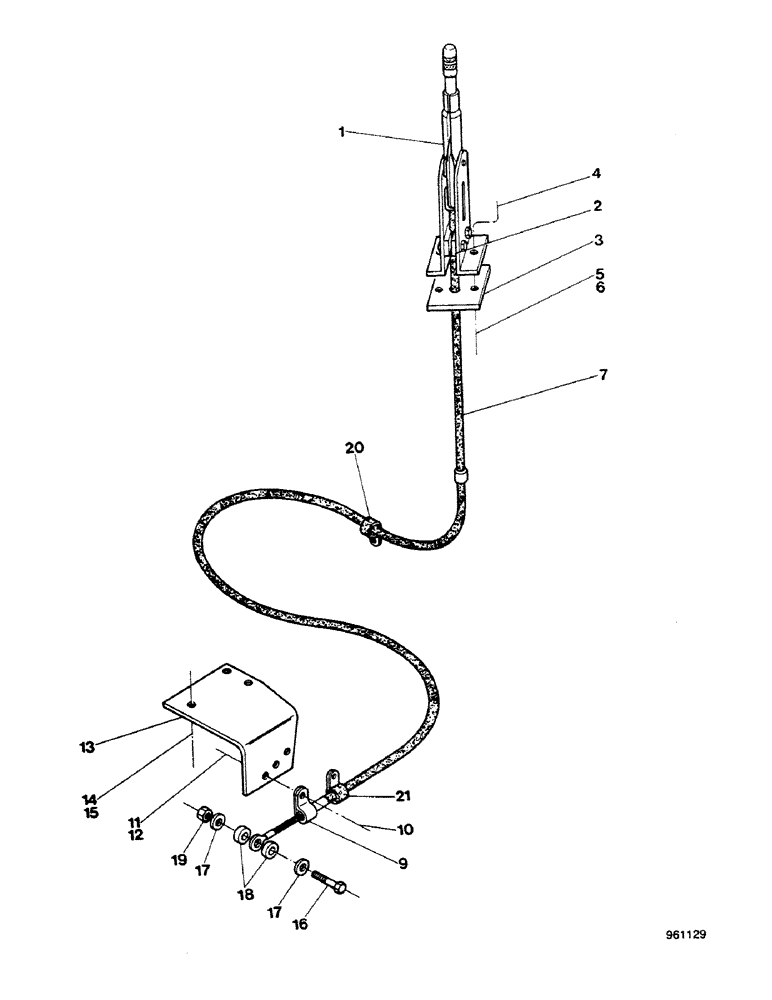

Запчасти Case 580G (200) - EMERGENCY BRAKE IF USED (07) - BRAKES

1

E41736

LEVER

ASSY, Includes: Ref. 2

1шт.

2

E42103

STOP

SPARE PART ASSY

1шт.

3

D120033

PAD, RUBBER

SEAL

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

D74907

CABLE

1шт.

9

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

1шт.

10

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

11

92-5

LOCK WASHER,5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

E41689

BRACKET

SPARE PART

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

15

92-6

LOCK WASHER,3/8"

3шт.

16

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

17

195-2020

WASHER,.344" x 1" x .065"

flat

2шт.

18

E34604

BUSHING

SPARE PART

2шт.

19

9635082

NUT,5/16" - 18, Gr 5

1шт.

20

49836

CLAMP

1шт.

21

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.
