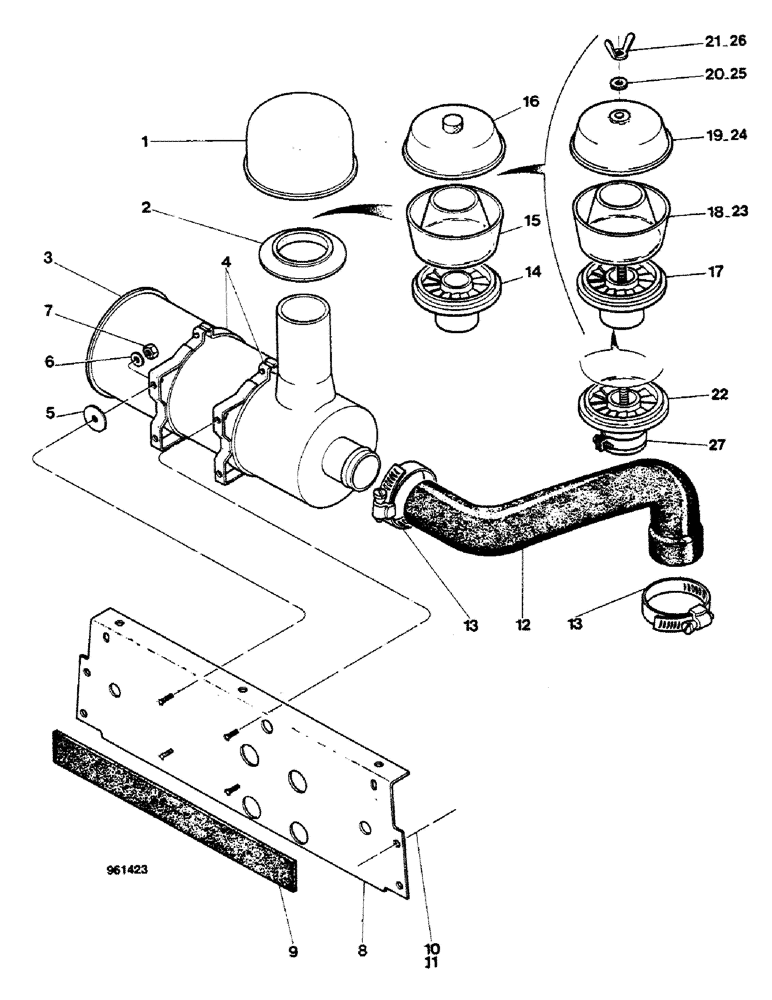

Запчасти Case 580G (020) - ENGINE - AIR CLEANER - AIR PRE-CLEANER (02) - ENGINE

1

E44483

CAP

, Serial Range: -3.938.265

1шт.

2

R14780

GROMMET

, Serial Range: -3.938.265

1шт.

3

REF

INSTRUCTION

CLEANER air, Serial Range: -3.938.265

1шт.

4

E43528

CLAMP

BAND, Serial Range: -3.938.265

2шт.

5

195-2042

WASHER,.469" x 1 1/2" x .134"

flat, Serial Range: -3.938.265

4шт.

6

195-21

WASHER,5/16"

Flat, Serial Range: -3.938.265

4шт.

7

131-4

LOCK NUT,5/16"-18, GB

, Serial Range: -3.938.265

4шт.

8

D88159

BRACKET

, Serial Range: -3.938.265

1шт.

9

D83436

PAD

, Serial Range: -3.938.265

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

flat, Serial Range: -3.938.265

4шт.

11

131-4

LOCK NUT,5/16"-18, GB

, Serial Range: -3.938.265

4шт.

12

D88296

INTAKE AIR HOSE,57.15 mm ID, 59.00 mm ID x 308.00 mm, SAE J20, SAE 20R4 CLASS D2

, Serial Range: -3.938.265

1шт.

13

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

, Serial Range: -3.938.265

2шт.

A64589

PRECLEANER

(Donaldson), E44647, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

365413R1

BOWL

1шт.

16

73187

COVER

1шт.

E44647

PRECLEANER

(Permatic), E46494, Includes: Ref. 17 - 21

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

18

E44755

HOUSING

1шт.

19

E44756

COVER

1шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

21

E44806

NUT

wing

1шт.

E46494

AIR PRE-CLEANER ASSY

(Sofiltra), Includes: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

23

E46508

BODY

1шт.

24

NSS

NOT SOLD SEPARAT

COVER

1шт.

25

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

26

E44806

NUT

wing

1шт.

27

NSS

NOT SOLD SEPARAT

CLAMP

1шт.
