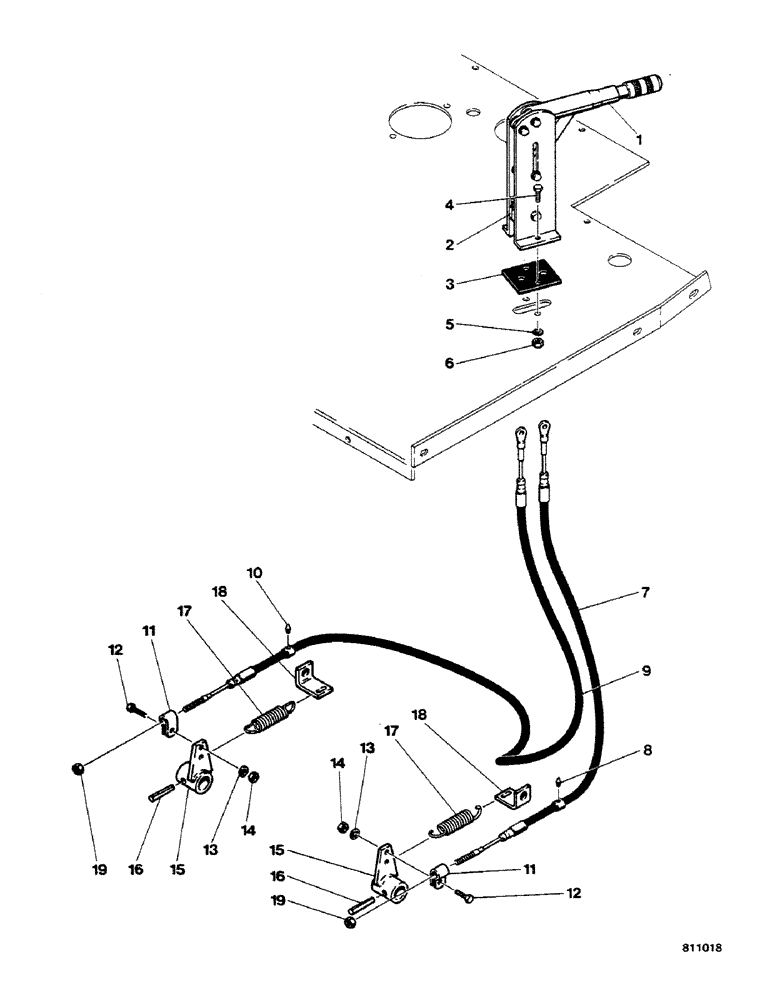

Запчасти Case 580G (198) - PARKING BRAKE (07) - BRAKES

1

E40929

LEVER

ASSY, Includes: Ref. 2

1шт.

1

E43426

LEVER

ASSY, Includes: Ref. 2, For identification See Figure 502

1шт.

2

E41392

STOP

ASSY

1шт.

3

D91348

PAD, RUBBER

SEAL

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

D92654

CABLE,750mm L

RH, Includes: Ref. 8

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

If used

1шт.

9

D92655

CABLE

LH, Includes: Ref. 10

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

If used

1шт.

11

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

2шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

E37995

LEVER

2шт.

16

135-101

GROOVED PIN,3/8" x 1 3/4", Type A

2шт.

17

A35789

SPRING

2шт.

18

D77680

SUPPORT

2шт.

19

131-5

LOCK NUT,3/8"-16, GB

2шт.
