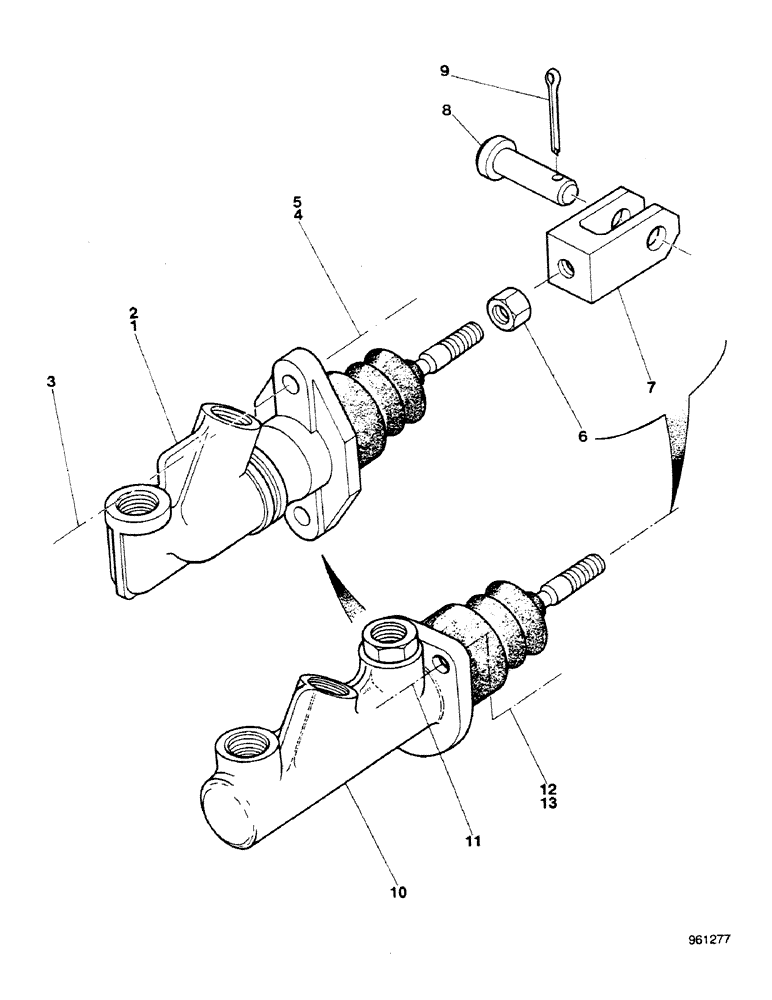

Запчасти Case 580G (196) - BRAKE - MASTER CYLINDER (07) - BRAKES

1

D120835

CYLINDER

master, Includes: Ref. 2, Serial Range: -3.937.264

2шт.

2

N7602

GASKET KIT

repair

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

4шт.

6

25-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

7

D94243

CLEVIS

SPARE PART

2шт.

8

141-64

CLEVIS PIN,7/16" x 1.190"

2шт.

9

132-26

COTTER PIN

3/32" x 3/4"

2шт.

10

D125125

CYLINDER

master, Start Serial: 3.937.265

2шт.

E46146

KIT

repair

1шт.

11

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

4шт.
