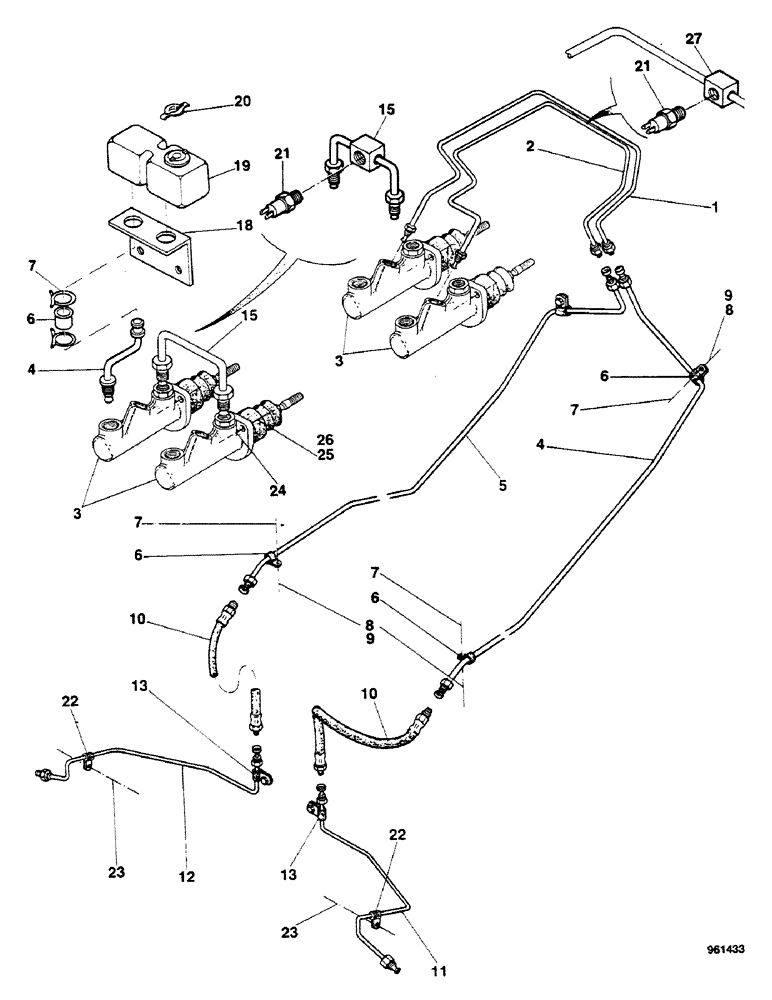

Запчасти Case 580G (195A) - BRAKES - HYDRAULIC LINES STARTING FROM NO. 3.937.265 (07) - BRAKES

1

E45133

PIPE

RH

1шт.

2

E45131

PIPE

SPARE PART LH, Serial Range: -3.942.413

1шт.

3

REF

INSTRUCTION

CYLINDER master, See Figure 196

2шт.

4

D125531

PIPE

RH

1шт.

5

D125533

PIPE

LH

1шт.

6

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

4шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

4шт.

10

D125535

HOSE

2шт.

11

D125527

PIPE

RH

1шт.

12

D125529

PIPE

LH

1шт.

13

51200321

CLAMP

2шт.

14

E44213

TUBE

2шт.

15

E45033

PIPE

, Serial Range: -3.941.038

1шт.

15

E45126

TUBE

If used, Start Serial: 3.941.039

1шт.

16

E44083

HOSE

2шт.

17

214-109

HOSE CLAMP,#14, 7/8", Spring

4шт.

18

E45035

BRACKET

1шт.

E46719

RESERVOIR

ASSY, Includes: Ref. 19 and 20

1шт.

19

E44082

RESERVOIR

Replaced by K262942

1шт.

19

K262942

RESERVOIR

1шт.

20

E44062

TAG

COVER

1шт.

21

K951976

LIGHT SWITCH

stop light, Start Serial: 3.941.039

1шт.

22

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

2шт.

23

195-518

WASHER,1/4", SAE

2шт.

24

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

25

92-5

LOCK WASHER,5/16"

4шт.

26

9635082

NUT,5/16" - 18, Gr 5

4шт.

27

E46394

PIPE

LH, Start Serial: 3.942.414

1шт.
