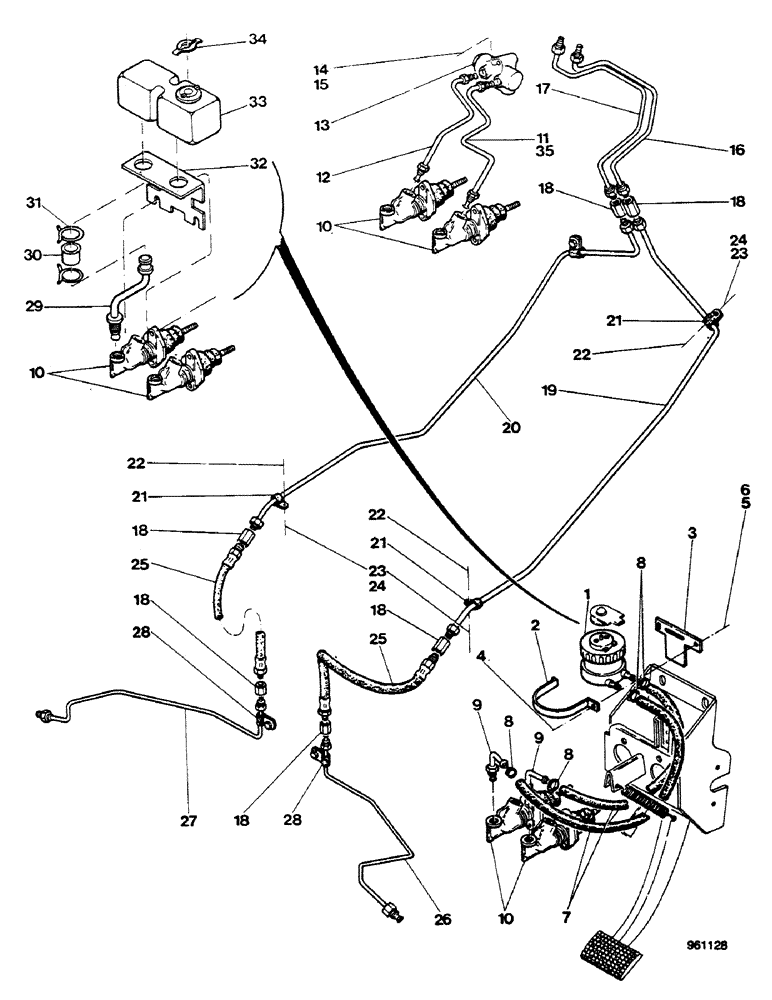

Запчасти Case 580G (194) - BRAKES - HYDRAULIC LINES UP TO NO. 3.937.264 (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
D94965
RESERVOIR
, Serial Range: -3.931.036
1шт.
2
D94958
FIXING BRACKET
SPARE PART BAND, Serial Range: -3.931.036
1шт.
3
D94244
PLATE
SPARE PART, Serial Range: -3.931.036
1шт.
4
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
, Serial Range: -3.931.036
1шт.
5
92-4
LOCK WASHER,1/4"
1шт.
6
25-104
NUT,1/4"-20, G5
, Serial Range: -3.931.036
1шт.
7
D94959
LARGE HOSE
HOSE,LARGE, Serial Range: -3.931.036
2шт.
8
214-335
HOSE CLAMP,#4, 0.25/0.62 Type M Worm
, Serial Range: -3.931.036
4шт.
9
D94960
TUBE
SPARE PART, Serial Range: -3.931.036
2шт.
10
REF
INSTRUCTION
CYLINDER master, See Figure 196
2шт.
11
D120940
TUBE
SPARE PART, Serial Range: -3.931.036
1шт.
12
D120938
TUBE
SPARE PART
1шт.
13
D70925
VALVE
balance
1шт.
14
13-432
BOLT,Hex, 1/4" - 20 x 2", Gr 5
2шт.
15
92-4
LOCK WASHER,1/4"
2шт.
16
D88522
TUBE
SPARE PART
1шт.
17
D88520
TUBE
SPARE PART
1шт.
18
D76775
FITTING
6шт.
19
D93195
PIPE
1шт.
20
D93197
TUBE
1шт.
21
515-2363
CLAMP,M6.3, Insul, 3/8" Bolt
4шт.
22
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
23
92-6
LOCK WASHER,3/8"
4шт.
24
25-106
NUT,3/8"-16, G5
4шт.
25
D93199
HOSE
2шт.
26
D93169
TUBE
RH
1шт.
26
D123697
TUBE
RH, To be used with K206929 or K206928 only (See Figure 168)
1шт.
27
D93171
TUBE
LH
1шт.
27
D123699
TUBE
SPARE PART LH, To be used with K206929 or K206928 only (See Figure 168)
1шт.
28
51200321
CLAMP
2шт.
29
E44213
TUBE
, Start Serial: 3.931.037
2шт.
30
E44083
HOSE
, Start Serial: 3.931.037
2шт.
31
214-110
CLAMP,#15, 15/16", Spring
, Start Serial: 3.931.037
4шт.
32
E44216
PLATE
BRACKET, Start Serial: 3.931.037
1шт.
E46719
RESERVOIR
ASSY, Includes: Ref. 33 and 34
1шт.
33
E44082
RESERVOIR
Replaced by K262942, Start Serial: 3.931.037
1шт.
33
K262942
RESERVOIR
1шт.
34
E44062
TAG
COVER, Start Serial: 3.931.037
1шт.
35
E44211
TUBE
SPARE PART, Start Serial: 3.931.037
1шт.
Выбрано товаров: 39
