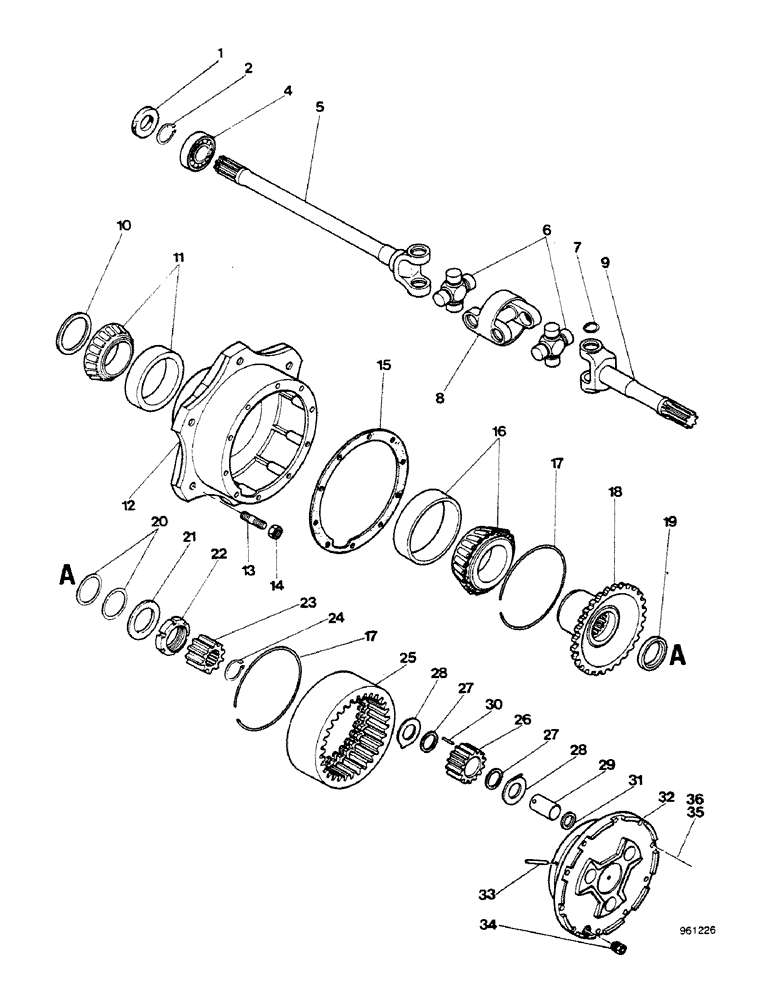

Запчасти Case 580G (190) - FRONT DRIVE AXLE - AXLE SHAFT AND PLANETARY (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSY (See Figure 182 - 190), Includes: Ref. 1 - 20

1шт.

1

K965335

OIL SEAL,40mm ID x 72mm OD x 10mm Thk

2шт.

2

K965334

SNAP RING,M40, Ext

2шт.

4

K965333

BALL BEARING,40mm ID x 80mm OD x 23mm W

ball

2шт.

K956868

SHAFT

AXLE ASSY, Includes: Ref. 5 - 9

2шт.

5

K956869

SHAFT HOUSING

inner

1шт.

K956872

U-JOINT SPIDER

UNIVERSAL ASSY, Includes: Ref. 6 and 7

2шт.

Ref 5 is K260191 in kit. dar.

1шт.

6

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

7

K956873

RING

snap

4шт.

8

K956871

FLEXIBLE JOINT

FLANGE

1шт.

9

K956870

FORK

SHAFT outer

1шт.

10

K956896

WASHER

2шт.

11

K956897

BEARING

2шт.

12

K956995

HUB

E45368 + E45369 (See Figure 184), Serial Range: -3066

2шт.

12

E45368

HUB

, Start Serial: 3067

1шт.

13

K956902

STUD

12шт.

14

K956903

NUT

12шт.

15

K956925

SEAL

2шт.

16

K956906

BEARING

2шт.

17

K956907

RING

4шт.

18

K956905

GEAR WHEEL

2шт.

19

K956908

SPACER

2шт.

20

K956909

SHIM,0.5mm Thk

1шт.

20

K956910

SHIM,0.3mm Thk

1шт.

20

K956911

SHIM,0.1mm Thk

1шт.

21

K956912

WASHER

2шт.

22

K956913

LOCK NUT

2шт.

23

K956915

GEAR WHEEL

2шт.

24

K956916

CLIP

snap

2шт.

25

K956914

GEAR WHEEL

2шт.

26

K956918

GEAR WHEEL

6шт.

27

K956920

WASHER

12шт.

28

K260200

BEARING WASHER

WASHER tab

12шт.

29

K956917

AXLE PIN

6шт.

30

K956919

NEEDLE

180шт.

31

K956924

PLUG

6шт.

32

K956996

COVER

2шт.

33

K956922

SPLIT PIN/SAFETY PIN

roll

6шт.

34

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

35

813-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

20шт.

36

892-1012

LOCK WASHER,M12

lock

20шт.
