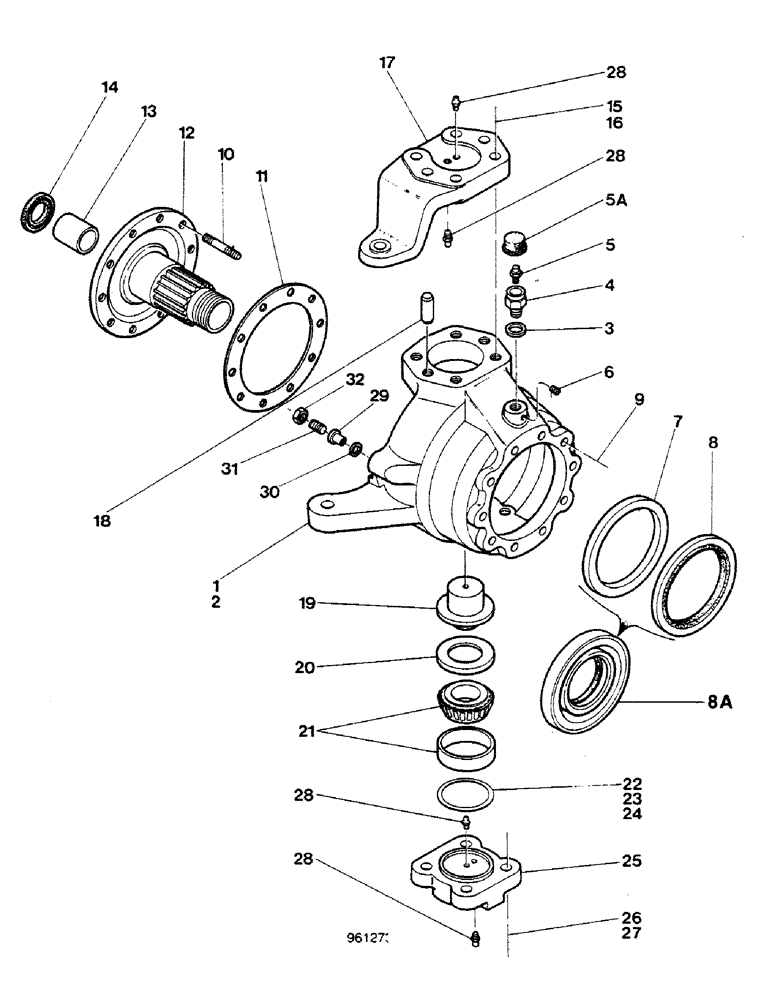

Запчасти Case 580G (184) - FRONT DRIVE AXLE - SWIVEL HOUSINGS (06) - POWER TRAIN

REF

INSTRUCTION

AXLE ASSY, See Figure 182 - 190, Includes: Ref. 1 - 30

1шт.

1

N7608

HOUSING

RH

1шт.

2

N7607

HOUSING

LH

1шт.

3

K957001

SEAL

2шт.

4

K957000

GUARD

2шт.

5

K965231

BREATHER

2шт.

5a

K956999

PLUG

CAP dust

2шт.

6

K956888

PLUG

2шт.

7

K956894

SEAL

, Serial Range: -3066

2шт.

8

K956895

SEAL

, Serial Range: -3066

2шт.

8a

E45369

SEAL

, Start Serial: 3067

2шт.

9

K965250

NUT

20шт.

10

K956893

STUD

20шт.

11

K956892

SEAL

2шт.

12

K956889

HUB

Includes: Ref. 13, E45367 + N8897, Serial Range: -3066

2шт.

12

E45367

HUB

Includes: Ref. 13, Start Serial: 3067

2шт.

13

E43782

BUSHING

1шт.

14

K956891

OIL SEAL

, Serial Range: -3066

2шт.

14

N8897

OIL SEAL

, Start Serial: 3067

2шт.

15

K956886

BOLT,M18 x 1.5 x 60mm

8шт.

16

K956884

WASHER

lock

8шт.

17

N7610

LEVER

steering

2шт.

18

K956887

DOWEL

dowel

2шт.

19

K956876

PIN

4шт.

K956876 SUBS TO K260145 IN EUROPEAN SYSTEM

1шт.

20

K956877

SEAL

4шт.

21

K965358

BEARING

4шт.

22

K956879

SHIM,0.1mm Thk

1шт.

23

K956880

SHIM,0.3mm Thk

1шт.

24

K956881

SHIM,0.5mm Thk

1шт.

E44986

SHIM,1mm Thk

1шт.

25

K956882

COVER ASSY

2шт.

26

K956884

WASHER

lock

8шт.

27

K956883

SCREW

8шт.

28

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

8шт.

29

K956928

STOP

BUSHING

2шт.

30

K956929

SHIM,1.0mm Thk

1шт.

30

K956930

SHIM,0.5mm Thk

1шт.

31

K956931

BOLT

If used

2шт.

32

K956932

JAM NUT

If used

2шт.
