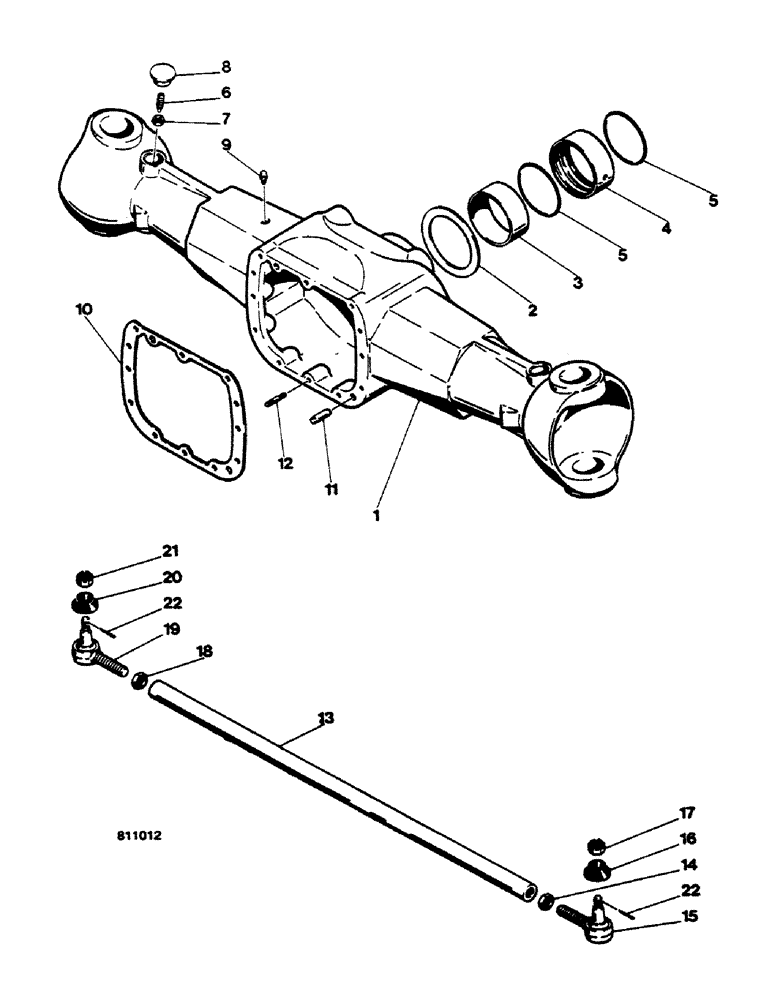

Запчасти Case 580G (182) - FRONT DRIVE AXLE-HOUSING AND TIE ROD (06) - POWER TRAIN

D93026

SHAFT

AXLE ASSY, Figure 184 - 190, Includes: Ref. 1 - 22

1шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

1

E42835

HOUSING

SPARE PART

1шт.

2

K965264

WASHER

trust

1шт.

3

K965266

BUSHING

SLEEVE

1шт.

4

K965265

BUSHING

BUSHING

1шт.

5

K965267

O-RING,0.07" Thk x 4.489" ID

2шт.

6

K965232

BOLT,M10 x 1.25 x 35mm, Cl 10.9

4шт.

7

825-1014

NUT,M14, Cl 8

4шт.

8

K956997

CAP

dust

4шт.

9

K965231

BREATHER

1шт.

10

K956856

GASKET

1шт.

11

K965252

PIN

dowel

2шт.

12

K965253

STUD

10шт.

13

N7609

TIE-ROD

1шт.

14

E44636

NUT

1шт.

K260254

BALL JOINT

ASSY RH, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

JOINT ball RH

1шт.

16

K956939

CAP

dust, If used

1шт.

17

K260251

NUT

1шт.

18

E44635

NUT

1шт.

K260250

BALL JOINT

ASSY LH, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

JOINT ball LH

1шт.

20

K956939

CAP

dust, If used

1шт.

21

K260251

NUT

1шт.

22

K260255

PIN

cotter

2шт.
