Запчасти Case 580G (180) - FRONT DRIVE AXLE - DRIVE SHAFT (06) - POWER TRAIN

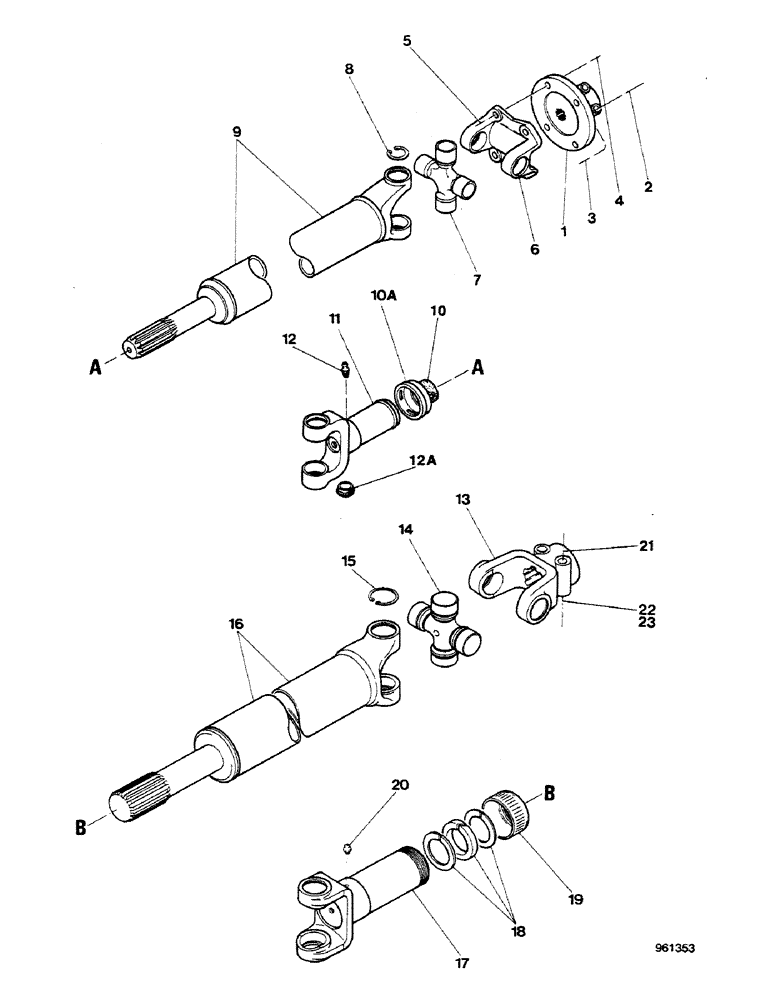

Схема запчастей Case 580G - (180) - FRONT DRIVE AXLE - DRIVE SHAFT (06) - POWER TRAIN
6
b
5
16
14
9
22
11
1
20
21
17
4
a
a
2
7
13
15
23
12a
3
10a
8
12
b
18
10
19

Артикул

Название

Примечание

Количество

D120558

DRIVE

SHAFT ASSY, Includes: Ref. 1 - 12A

1шт.

Up to No. 3.941.001 Except for No. : 3.940.979 + 3.940.986

1шт.

1

K956954

SPLINED COUPLING

2шт.

2

K965415

BOLT,M10 x 1.25 x 60mm

4шт.

3

K965414

NUT

4шт.

4

K956955

SCREW

8шт.

5

905834R1

THIN NUT,M12 x 1.25, Thin

8шт.

N7613

SHAFT

SPARE PART drive, Includes: Ref. 6 - 12A

1шт.

6

K956950

YOKE

SPARE PART

2шт.

K956872

U-JOINT SPIDER

UNIVERSAL ASSY, Includes: Ref. 7 and 8

2шт.

7

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

8

K956873

RING

snap

4шт.

9

NSS

NOT SOLD SEPARAT

TUBE inner, "0" 3" - 76.2mm

1шт.

10

K956953

COVER

dust

1шт.

10a

K957009

SEALING RING

retaining

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE outer

1шт.

12

K957007

FITTING

grease

1шт.

12a

K957010

CYLINDER END CAP

1шт.

NLS

NO LONGER SERVICED

DRIVE ASSY, Includes: Ref. 13 - 18

1шт.

13

E44257

YOKE

UNIVERSAL JOINT YOKE

2шт.

K956872

U-JOINT SPIDER

UNIVERSAL ASSY, Includes: Ref. 14 and 15

2шт.

14

NSS

NOT SOLD SEPARAT

JOINT universal

1шт.

15

K956873

RING

snap

4шт.

16

NSS

NOT SOLD SEPARAT

TUBE inner, "0" 2 - 3/4" - 70mm

1шт.

17

NSS

NOT SOLD SEPARAT

TUBE outer

1шт.

18

E43914

JOINT

SEAL

1шт.

19

E43913

BUSHING

Includes: Ref. 20

1шт.

20

5194260

LUBE NIPPLE,M6 x 1, 16mm lg

1шт.

21

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

4шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

Выбрано товаров: 31
