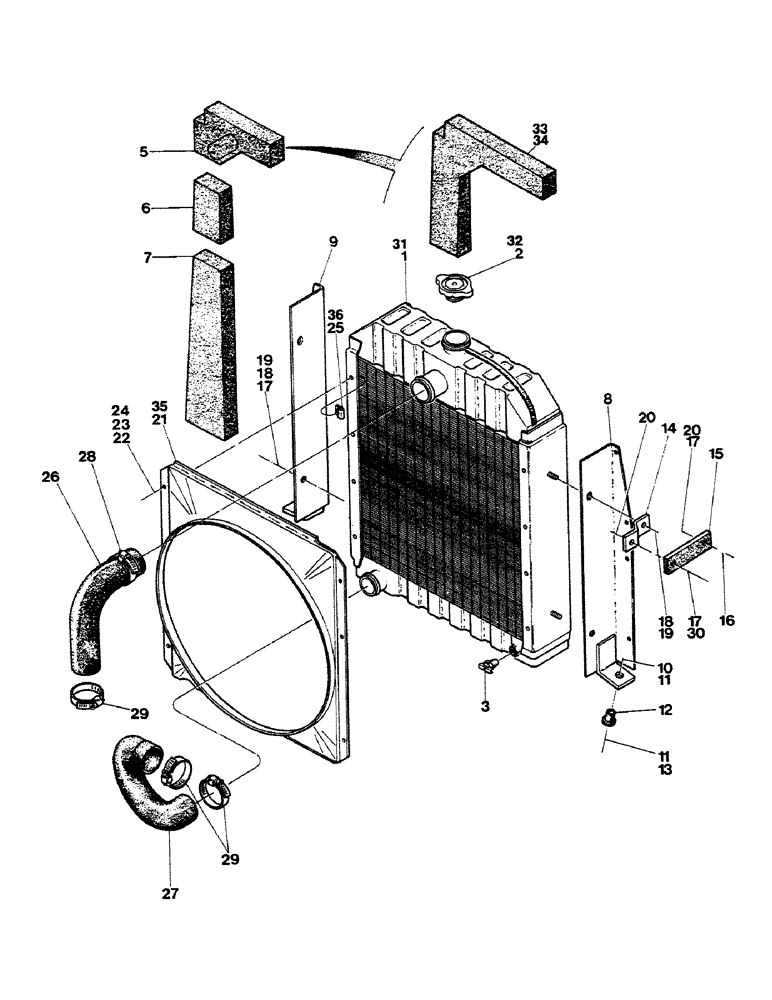

Запчасти Case 580G (018) - ENGINE - RADIATOR, HOSES, AND MOUNTING PARTS (02) - ENGINE

1

D121286

RADIATOR

E45095 + E46222 + E44014 + E44015

1шт.

2

80889R91

COVER

, Serial Range: -3.937.934

1шт.

3

217-103

COCK, DRAIN

1/4" PT

1шт.

5

D126803

FOAM

baffle, Serial Range: -3.937.934

2шт.

6

D126804

FOAM

baffle, Serial Range: -3.937.934

2шт.

7

D126805

BAFFLE

2шт.

8

D81064

SUPPORT

SPARE PART R.H.

1шт.

9

D81065

SUPPORT

SPARE PART L.H.

1шт.

10

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

11

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

5шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

2шт.

13

131-652

LOCK NUT,3/8"-16, GB

2шт.

14

D88257

BRACKET

2шт.

15

D73500

STRAP

2шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

17

95-6

WASHER,3/8"

6шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

4шт.

20

131-652

LOCK NUT,3/8"-16, GB

4шт.

21

D91714

GUARD

, Serial Range: -3.937.934

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

23

92-4

LOCK WASHER,1/4"

6шт.

24

95-4

WASHER,1/4"

flat

6шт.

25

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

, Serial Range: -3.937.934

6шт.

26

D122967

RADIATOR HOSE

1шт.

27

D91503

RADIATOR HOSE,39.70 mm ID, 44.50 mm ID x 186.00 mm, SAE J20 R4 CLASS D2

1шт.

28

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

29

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

3шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

E45095

COOLER ASSY.

E46050 + E46194, Start Serial: 3.937.935

1шт.

31

E46050

RADIATOR

radiator, Start Serial: 3.937.935

1шт.

32

E45155

PLUG

, Start Serial: 3.937.935

1шт.

33

E44014

FOAM

baffle L.H., Start Serial: 3.937.935

1шт.

34

E44015

FOAM

baffle R.H., Start Serial: 3.937.935

1шт.

35

E46222

SHROUD

E46194, Start Serial: 3.937.935

1шт.

35

E46194

GUARD

1шт.

36

131-132

SPRING NUT,Tinn, U, 1/4"-20

, Start Serial: 3.937.935

6шт.
