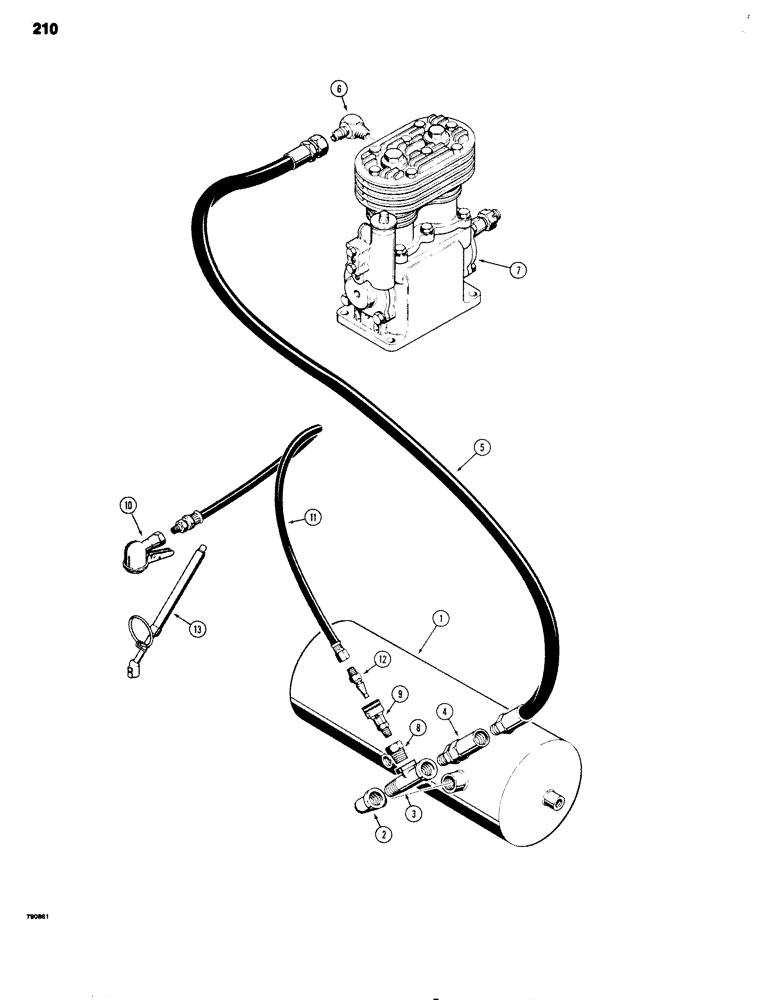

Запчасти Case 680G (210) - BRAKE SYSTEM TIRE INFLATION PARTS (07) - BRAKES

1

L57152

RESERVOIR ASSY.

TANK - reservoir, air

1шт.

2

221-404

FITTING

- 45 degree, street, 1/2" NPT

1шт.

3

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe

1шт.

4

L12586

VALVE

- check

1шт.

5

L100029

HOSE,9.65 mm ID x 394.00 mm, SAE 100R6

- compressor 9.65 mm ID x 394.00 mm, SAE 100R6

1шт.

6

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degree (Replaces 212-1414)

1шт.

7

REF

INSTRUCTION

COMPRESSOR - air, see Figure 212

1шт.

8

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

9

L13978

VALVE

DISCONNECT - quick

1шт.

10

L78137

SOCKET

CHUCK - air

1шт.

11

L15274

HOSE

- tire inflation

1шт.

12

L13979

COUPLING

COUPLER - hose

1шт.

13

L13977

GAUGE ASSY.

GAUGE - tire test

1шт.
