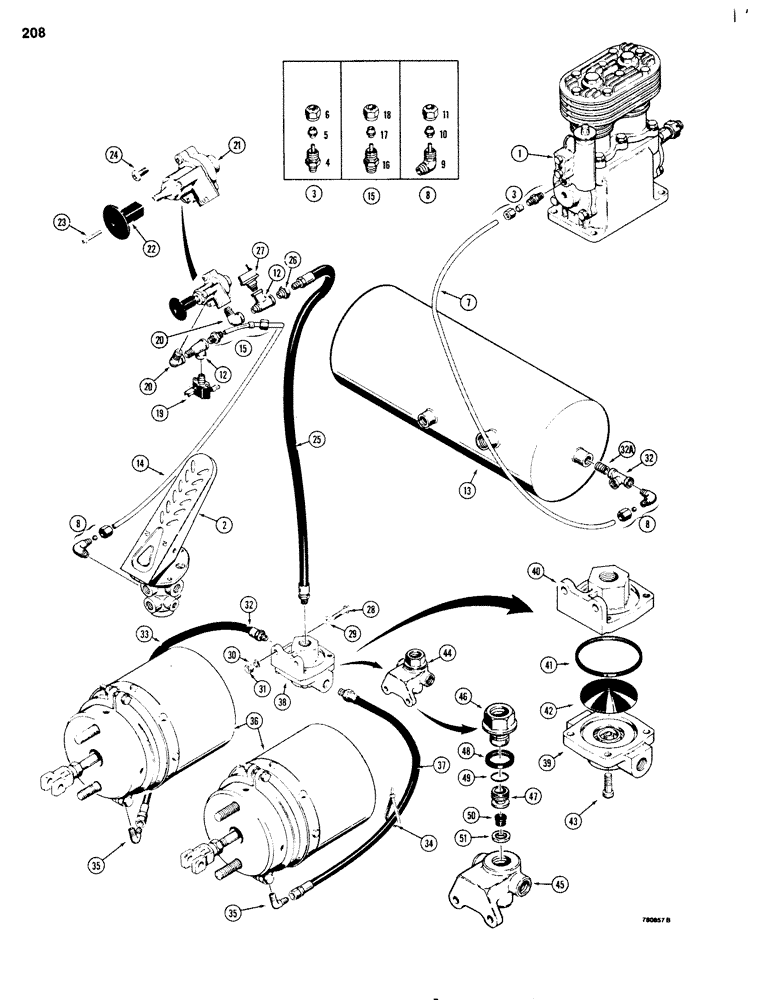

Запчасти Case 680G (208) - BRAKE SYSTEM, PARKING BRAKE CONTROLS AND QUICK RELEASE VALVE (07) - BRAKES

1

REF

INSTRUCTION

COMPRESSOR - air, see Figures 212 and 214

1шт.

2

REF

INSTRUCTION

TREADLE - brake valve, right-hand, parts list Figure 218

1шт.

3

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

ASSEMBLY - straight, if used, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

5

222-2610

SLEEVE

- fitting

1шт.

8

222-2600

NUT

NUT - fitting, Includes: Ref. 9 - 11

1шт.

7

L100031

TUBE,0.25" OD x 52" L

- governor to reservoir

1шт.

8

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING ASSEMBLY - 90 degree, male

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - tee

1шт.

10

222-2610

SLEEVE

- fitting

1шт.

11

222-2600

NUT

NUT - fitting

1шт.

12

221-1691

TEE,Street, 1/4" NPT

FITTING - tee, , used before tractor S/N 9135918 Street, 1/4" NPT

2шт.

12

217-1250

TEE,1/4"-18 Female x 1/8"-27 Male Run

FITTING - tee, 1/4" NPT, used on tractor S/N 9135918 and after, not shown

2шт.

13

L57152

RESERVOIR ASSY.

RESERVOIR - air

1шт.

14

L54114

TUBE - treadle to parking brake valve 0.25" OD x 38" L

1шт.

15

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - straight, if used, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

17

222-2610

SLEEVE

- fitting

1шт.

18

222-2600

NUT

NUT - fitting

1шт.

19

S213102

INDICATOR

SWITCH - buzzer, use with either 221-84 or 221-1084 fitting

1шт.

20

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street, used before tractor S/N 9135918 90º, 1/4"-27, NPT

2шт.

20

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- 1/4" NPT, used on tractor S/N 9135918 and after not shown

2шт.

L103834

VALVE

- parking brake not shown, parts list Figure 200, used on tractor S/N 9135918 and after, Includes: Ref. 21 - 24

1шт.

L57682

VALVE

- parking brake, used before tractor S/N 9135918, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

22

L36025

KNOB

- valve

1шт.

23

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

- machine, Phillips head, No. 8 -32 NC x 3/8"

1шт.

24

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- 1/4" - 20 NC x 1/2"

2шт.

25

L78628

HOSE

- parking brake, 44" (1117 mm) long

1шт.

26

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

FITTING - 1/4" NPT to 1/8" NPT

1шт.

27

L57937

SWITCH

- brake warning light

1шт.

28

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1"

2шт.

29

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

30

92-5

LOCK WASHER,5/16"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

32

221-422

TEE,Pipe, 1/4" NPT

FITTING - tee, 1/4" NPT

1шт.

32a

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT

1шт.

33

L53615

HOSE ASSY.

HOSE - to left-hand brake chamber, 21" (533 mm) long

1шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses, if used

2шт.

35

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 1/4" NPT to 9/16" JIC

2шт.

36

REF

INSTRUCTION

CHAMBER - air brakes, see Figures 224 and 226 for correct chamber and component parts

2шт.

37

L53615

HOSE ASSY.

HOSE - right - hand brake chamber, 21" (533 mm) long

1шт.

38

L71758

VALVE

- quick release, brake, used before tractor S/N 9136185, Includes: Ref. 39 - 43

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

40

D72740

COVER

- valve

1шт.

41

D73718

SEAL ASSY.

SEAL - cover

1шт.

42

D72741

DIAPHRAGM

DIAHRAGM - valve

1шт.

43

182-204

SCREW,Sl Pan Hd, 1/4" - 20 x 3/4"

- 1/4" - 20 NC x 3/4"

4шт.

44

L55335

LOCK VALVE

VALVE - quick release, used on tractor S/N 9136185 and after, Includes: Ref. 45 - 51

1шт.

45

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

46

NSS

NOT SOLD SEPARAT

FITTING - inlet

1шт.

47

N6200

SEAT

1шт.

N6201

SEAL KIT

- seal

1шт.

48

NSS

NOT SOLD SEPARAT

GASKET, Includes: Ref. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING

1шт.

50

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

51

NSS

NOT SOLD SEPARAT

SEAL

1шт.
