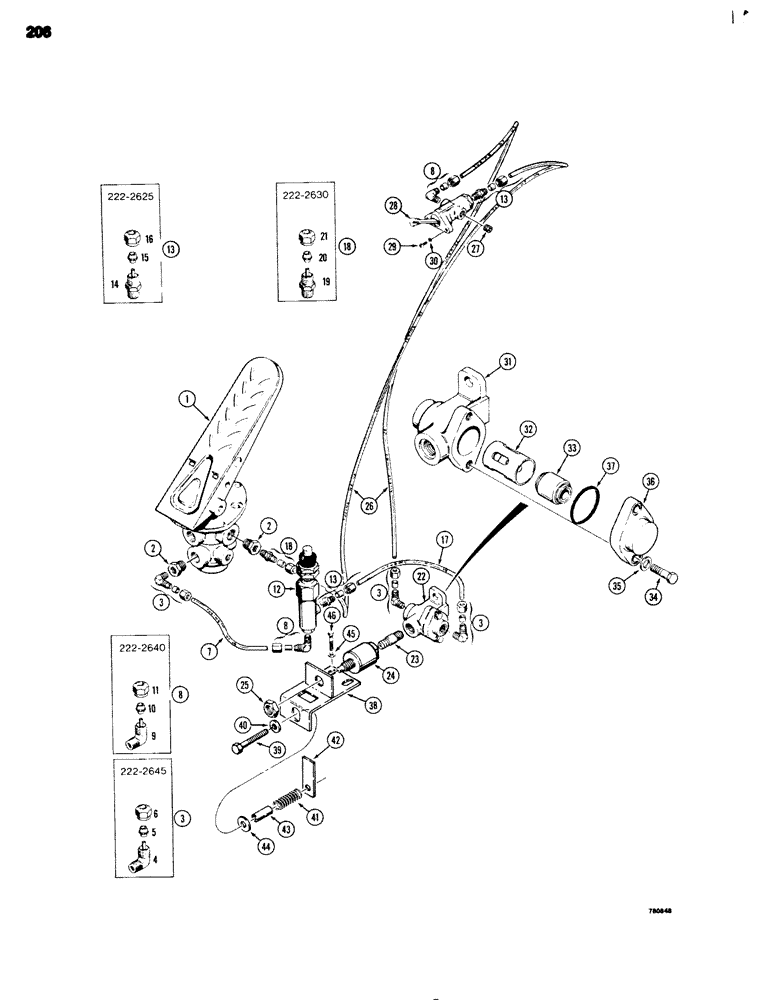

Запчасти Case 680G (206) - BRAKE SYSTEM, TREADLE TO CLUTCH CUTOUT (07) - BRAKES

1

REF

INSTRUCTION

TREADLE - brake valve, right-hand, parts list Figure 218

1шт.

2

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - 1/2" to 1/4" NPT

2шт.

3

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING ASSEMBLY - 90 degree, male, Includes: Ref. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - male fitting

1шт.

5

222-2610

SLEEVE

- fitting

1шт.

6

222-2600

NUT

NUT - fitting

1шт.

7

L100032

TUBE - treadle to floor mounted clutch cutput valve 0.25" OD x 5.5" L

1шт.

8

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING ASSEMBLY - 90 degree, male, Includes: Ref. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - male fitting

1шт.

10

222-2610

SLEEVE

- fitting

1шт.

11

222-2600

NUT

NUT - fitting

1шт.

12

L14818

VALVE

- clutch cutout, parts list Figure 220

1шт.

13

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

ASSEMBLY - straight, Includes: Ref. 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

15

222-2610

SLEEVE

- fitting

1шт.

16

222-2600

NUT

NUT - fitting

1шт.

17

L52189

TUBE,0.25" OD x 10" L

- clutch cutout valve to cutout cylinder

1шт.

18

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - straight, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

20

222-2610

SLEEVE

- fitting

1шт.

21

222-2600

NUT

NUT - fitting

1шт.

22

L55059

LOCK VALVE

VALVE - double check

1шт.

23

221-1134

PIPE

NIPPLE - 1/4" NPT x 1-3/8"

1шт.

24

L12627

CYLINDER

- clutch cutout

1шт.

25

L54140

NUT

- lock, cutout cylinder mounting

1шт.

26

L48191

TUBE,0.25" OD

- cylinder to manual cutout valve

2шт.

27

221-1849

PLUG

- 1/8" NPT, HEX, SOCKET HEAD

1шт.

28

L12630

LOCK VALVE

VALVE - clutch cutout, manual, parts list Figure 222

1шт.

29

173-97

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, round head, No. 10 x 1/2"

2шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

L55059

LOCK VALVE

VALVE - double check, Includes: Ref. 31 - 37

1шт.

31

L35711

BODY

- valve

1шт.

32

L31497

GUIDE

- shuttle

1шт.

33

L31498

ROD

SHUTTLE - check

1шт.

34

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

35

195-515

WASHER,#12

- flat, 1/4", plated

2шт.

36

L33702

COVER

CAP - valve

1шт.

37

L31499

O-RING,1" ID x 40546" OD x 3"

- cap to body

1шт.

L73098

KIT

- clutch cutout repair, Includes: Ref. 38 - 46

1шт.

38

L72956

BRACKET

- clutch cutout cylinder mounting

1шт.

If the new clutch cutout cylinder will not fit into this bracket, you may have to slot the hole in this bracket to accomodate the mounting shaft of the cylinder.

1шт.

39

14-532

BOLT,Hex, 5/16" - 24 x 2", Gr 5

- hex head, 5/16" - 24 NF x 2"

1шт.

40

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

41

L72882

SPRING

- return, clutch cutout

1шт.

42

L72895

LEVER

- clutch cutout

1шт.

43

L72896

SPACER

- clutch cutout lever

1шт.

44

A26381

WASHER

- flat, special

1шт.

45

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

46

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.
