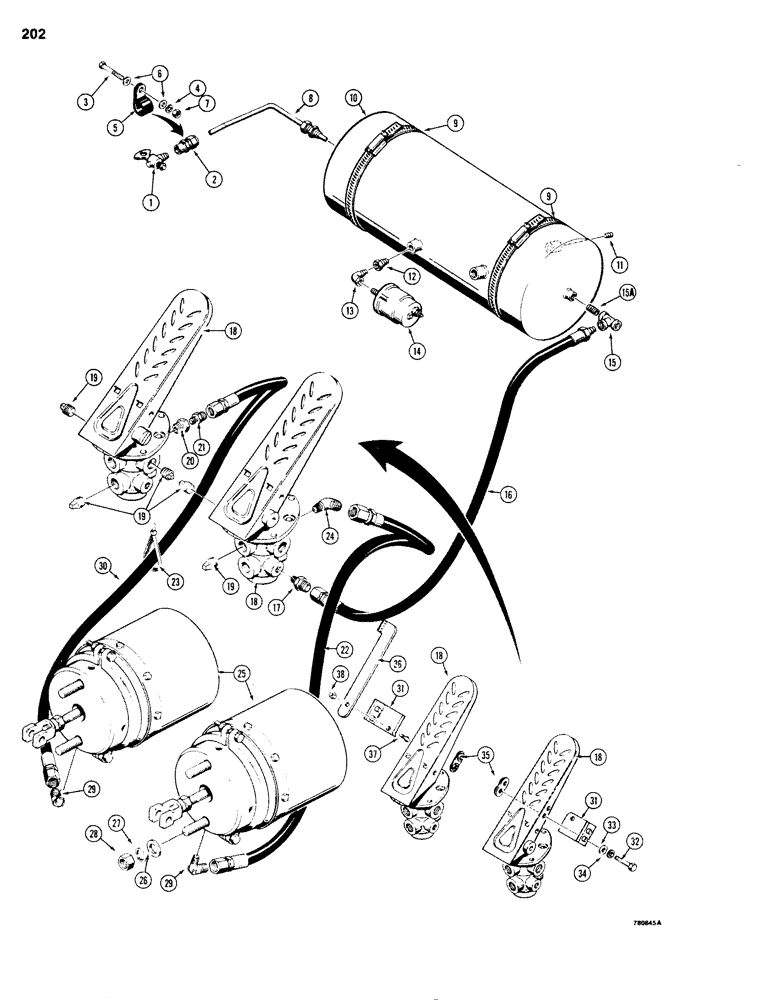

Запчасти Case 680G (202) - BRAKE SYSTEM, RESERVOIR TO BRAKE TREADLES AND BRAKE CHAMBER (07) - BRAKES

1

L100385

COCK

VALVE - drain

1шт.

2

222-5151

CONNECTOR, ELEC

FITTING - female

1шт.

3

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

49799

GASKET

CLAMP - hose

1шт.

6

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

8

L79994

TUBE ASSY.

TUBE - air tank drain

1шт.

9

214-186

HOSE CLAMP,6-3/4" - 7-5/8", HD Worm

STRAP - reservoir mounting

2шт.

10

L57152

RESERVOIR ASSY.

RESERVOIR - air

1шт.

11

221-1662

PLUG

- hex head, 1/4" NPT

1шт.

12

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

FITTING - adapter, 1/4" to 1/8" NPT

1шт.

13

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

FITTING - 90 degree, street, 1/8" NPT

1шт.

14

L57176

SENDER UNIT

SENDING UNIT - air pressure

1шт.

15

221-422

TEE,Pipe, 1/4" NPT

FITTING - tee, 1/4" NPT

1шт.

15a

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT

1шт.

16

L100958

HOSE

- reservoir to treadle, 81" (2056 mm) long, used before tractor sn 9135918

1шт.

16

L104059

HOSE

- reservoir, 81" (2057 mm) long, use with L103834 Parking Brake Valve only, used on tractor sn 9135918 and after, not shown.

1шт.

17

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 3/8" tube to 1/4" NPT

1шт.

18

L73042

VALVE, BRAKE

TREADLE - brake valve, parts list Figure 218

2шт.

19

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

5шт.

20

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - adapter, 1/2" NPT to 1/4" NPT

1шт.

21

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - adapter, 3/8" tube to 1/4" NPT

1шт.

22

L53612

HOSE

- treadle to brake chamber, 35" (889 mm) long

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses, if used

2шт.

24

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

FITTING - adapter, 45 degree, 1/2" NPT to 9/16" JIC

1шт.

25

REF

INSTRUCTION

CHAMBER ASSEMBLY - brake, see Figures 224 and 226 for correct chamber and component parts

2шт.

26

95-10

WASHER,5/8"

- flat, 5/8"

4шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

25-1110

NUT,5/8"-18, G5

- hex, 5/8" - 18 NF

4шт.

29

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degree, 1/4" NPT to 9/16" JIC

2шт.

30

L53612

HOSE

- left-hand brake chamber to treadle, 35" (889 mm) long

1шт.

31

L71273

BRACKET

- locking bar

2шт.

32

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

33

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

35

129-724

NUT

- weld

2шт.

36

L71180

BAR

- locking

1шт.

37

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

38

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self lock, 5/16" - 18 NC

1шт.
