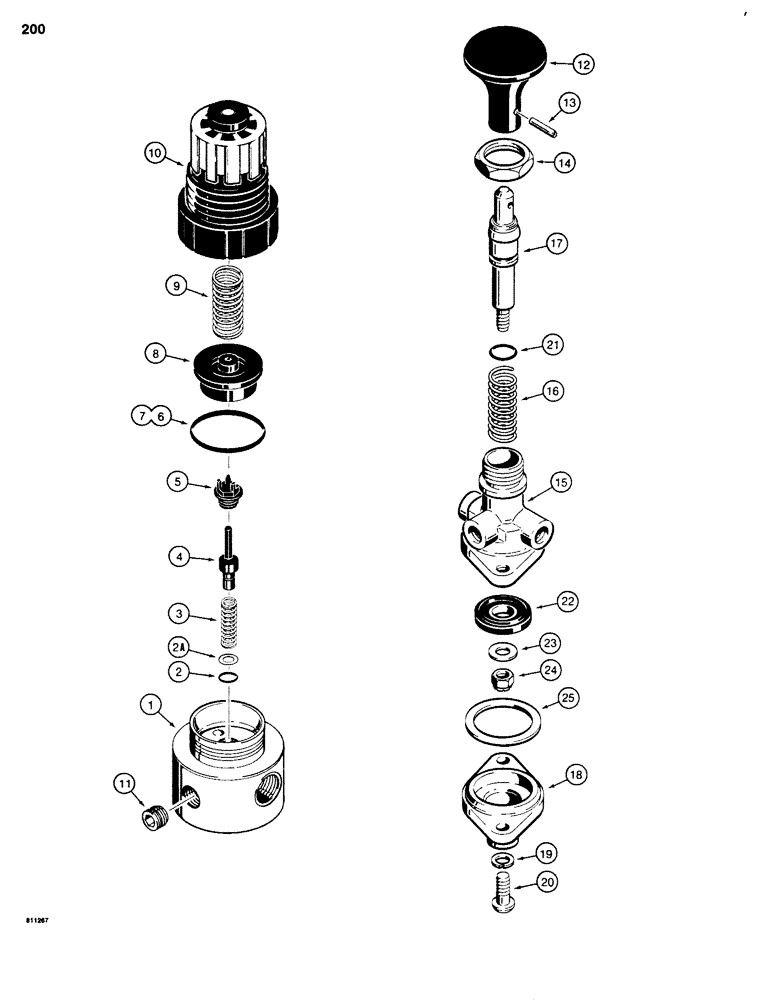

Запчасти Case 680G (200) - L72409 PRESSURE REDUCING VALVE - BRAKE, L103834 PARKING BRAKE VALVE (07) - BRAKES

L72409

LOCK VALVE

VALVE - pressure reducing - brakes, includes D87166 locking ring, not shown, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

D76940

KIT

- repair, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

2a

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - small

1шт.

4

NSS

NOT SOLD SEPARAT

POPPET

1шт.

5

NSS

NOT SOLD SEPARAT

GUIDE - poppet

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

D76941

PISTON

KIT - piston, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON

1шт.

9

D76942

SPRING

- large

1шт.

10

NSS

NOT SOLD SEPARAT

COVER

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - hex socket

1шт.

L103834

VALVE

ASSEMBLY - parking brake, Includes: Ref. 12 - 20

1шт.

12

L33695

KNOB

BUTTON -, Serial Range: pull-park

1шт.

13

138-2057

PIN,5/32" x 5/8", Coiled

Button 5/32" x 5/8", Coiled

1шт.

14

S94640

NUT

- special

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

16

L33698

SPRING

- valve

1шт.

17

N6814

PLUNGER

- valve

1шт.

18

L33700

COVER

- body

1шт.

19

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

20

182-527

SCREW,Sl Pan Hd, 1/4" - 20 x 5/8"

- pan head, 1/4 - 20 NC x 5/8"

2шт.

L33701

KIT

- repair, Includes: Ref. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - plunger

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

24

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

25

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

26

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - body, not shown

1шт.
