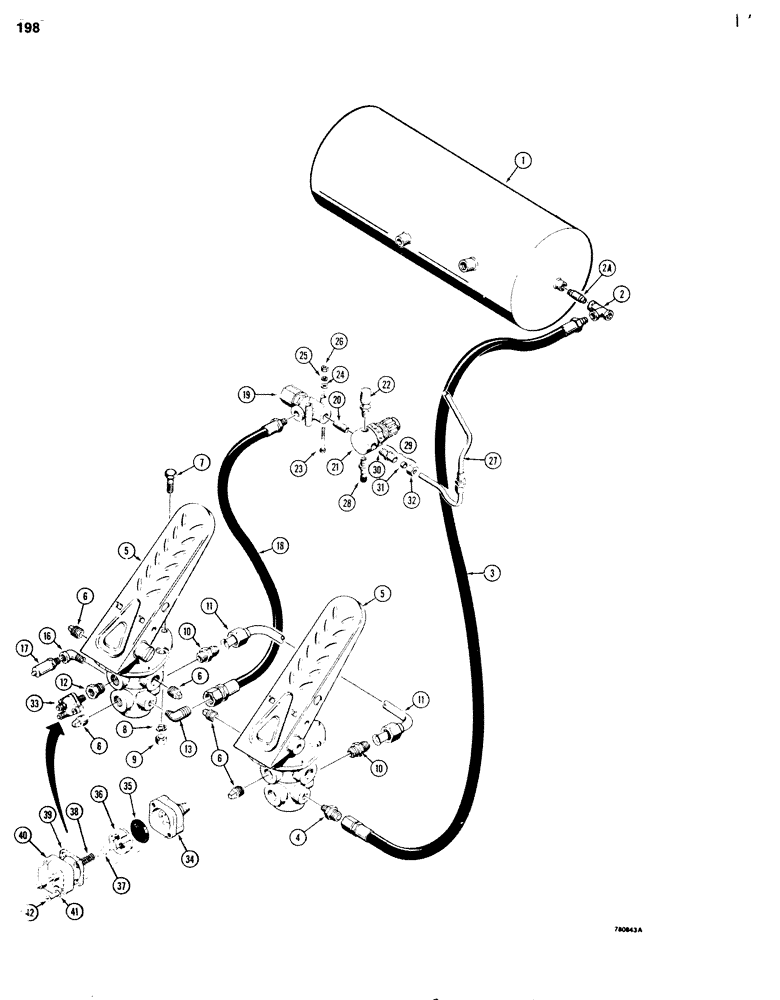

Запчасти Case 680G (198) - BRAKE SYSTEM, RESERVOIR TO PROTECTION VALVES AND TREADLES (07) - BRAKES

1

L57152

RESERVOIR ASSY.

RESERVOIR - air tank

1шт.

2

221-422

TEE,Pipe, 1/4" NPT

FITTING - tee, 1/4" NPT

1шт.

2a

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4 NPT

1шт.

3

L100958

HOSE

- reservoir, 81" (2057 mm) long, used before tractor sn 9135918

1шт.

3

L104059

HOSE

- reservoir, 81" (2057 mm) long, use with L103834 Parking Brake Valve only, used on tractor sn 9135918 and after, not shown

1шт.

4

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - adapter, 3/8" tube to 1/4" NPT

1шт.

5

REF

INSTRUCTION

TREADLE - valve, parts list page 219

2шт.

6

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - 1/2" NPT, square head

5шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

8

92-5

LOCK WASHER,5/16"

6шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

6шт.

10

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - 1/2" NPT x 9/16" JIC

2шт.

11

L57157

TUBE,0.375" OD x 2.75, 5" L

- brake valve connecting

1шт.

12

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

FITTING - 1/2" NPT x 1/4" NPT

1шт.

13

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - 90 degree, 1/4" NPT to 9/16" JIC

1шт.

16

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

Street 90º, 1/4"-27, NPT

1шт.

17

L48992

VALVE,1/4"

- safety

1шт.

18

L100038

HOSE - L.H. treadle, 34" (864 mm) long

1шт.

19

L13530

VALVE

- pressure protection, parts list Figure 222

1шт.

20

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1/4" NPT x 1"

1шт.

21

L72409

LOCK VALVE

VALVE - pressure reduction, parts list Figure 200

1шт.

22

D38663

VENT

VALVE - relief, pressure

1шт.

23

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

24

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

25-104

NUT,1/4"-20, G5

2шт.

27

L100054

TUBE ASSEMBLY - air vent 0.375" OD

1шт.

28

L51311

LOCK VALVE

VALVE - tank

1шт.

29

222-607

FITTING,9/16"-24 x 1/4" NPT, Comp

- compression, 3/8" tube to 1/4" NPT, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - straight fitting

1шт.

31

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

32

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - fitting

1шт.

33

L47989

SWITCH

ASSEMBLY - stop light, Includes: Ref. 34 - 42

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

35

L33201

DIAPHRAGM

- piston

1шт.

36

L33202

PISTON

- switch

1шт.

37

L33203

TERMINAL STRIP

STRIP - contact

1шт.

38

L33204

SPRING

- piston return

1шт.

39

L33205

GASKET

- cover

1шт.

40

L33206

COVER

- switch

1шт.

41

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

42

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No 10 - 24 NC x 3/4"

2шт.
