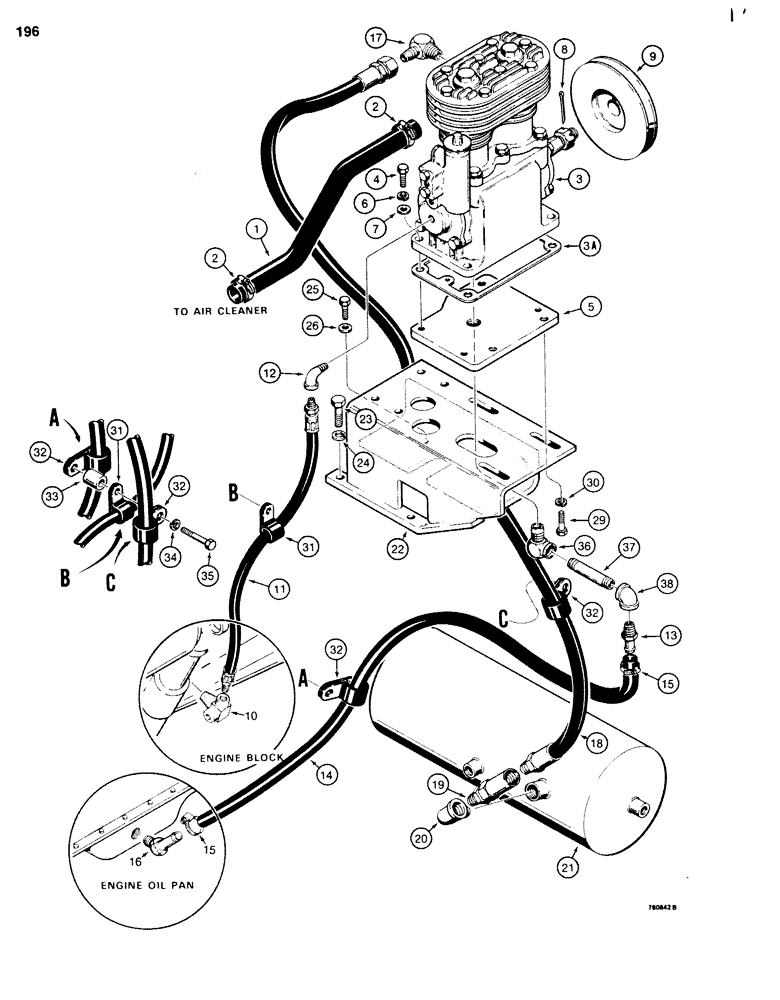

Запчасти Case 680G (196) - BRAKE SYSTEM, AIR COMPRESSOR AND RESERVOIR (07) - BRAKES

1

L100030

HOSE - intake, air, Serial Range: cleaner-compressor

1шт.

2

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

L79410

COMPRESSOR

- air, parts list Figures 212 and 214, Includes: Ref. 3A

1шт.

3a

D80610

GASKET

- mounting

1шт.

4

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

- hex head, 7/16" - 14 NC x 1-1/2"

4шт.

5

L103411

PLATE ASSY.

BRACKET - compressor mounting, upper

1шт.

6

92-7

LOCK WASHER,7/16"

4шт.

7

195-2043

WASHER,1/2" x 1 1/16" x .134"

- flat, 7/16"

4шт.

8

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

9

L73154

PULLEY

- compressor

1шт.

10

L100969

FITTING

- 90 degree, engine block

1шт.

11

L57976

HOSE ASSY.

HOSE - lubrication, 28" (711 mm) long

1шт.

12

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

FITTING - 90 degree, street, 1/4" NPT

1шт.

13

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

stem 1/2" Hose X 3/8" NPTF Beaded

1шт.

14

L100109

HOSE,12.7 mm ID x 914.40 mm, SAE 30R2 Type I

Compressor to Return 12.7 mm ID x 914.40 mm, SAE 30R2 Type I

1шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

16

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

- 45 degree, 1/2" NPT x 1/2" tube

1шт.

17

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- 90 degrees

1шт.

18

L100029

HOSE,9.65 mm ID x 394.00 mm, SAE 100R6

- compressor 9.65 mm ID x 394.00 mm, SAE 100R6

1шт.

19

L12586

VALVE

- check

1шт.

20

221-404

FITTING

- 45 degree, street, 1/2" NPT

1шт.

21

L57152

RESERVOIR ASSY.

TANK - reservoir, air

1шт.

22

L103414

BRACKET

- air compressor mounting, lower

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-8

LOCK WASHER,1/2"

2шт.

25

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

26

R24718

WASHER

- lock, 1/2"

4шт.

29

26-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex head, 7/16" - 14 NC x 1"

1шт.

30

L79092

WASHER

- flat, 7/16"

1шт.

31

49838

CLAMP

- hose

1шт.

32

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose

2шт.

33

B18083

BUSHING

SPACER - pipe

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

36

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

- 90 degree street, 3/8" NPT

1шт.

37

221-167

PIPE,Nipple, 3/8" NPT x 3 1/2"

NIPPLE - 3/8 NPT x 3-1/2

1шт.

38

221-1376

ELBOW,90 Degree, 3/8" NPT

- 90 degree, 3/8 NPT

1шт.
