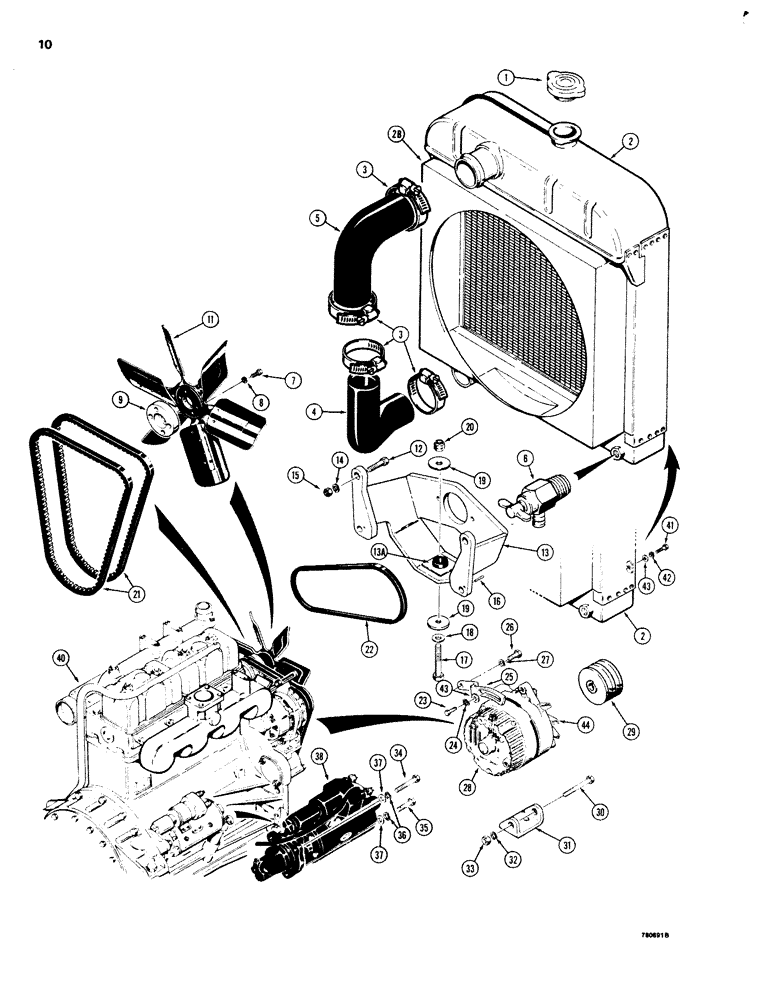

Запчасти Case 680G (010) - RADIATOR, ENGINE AND RELATED PARTS (02) - ENGINE

1

D25826

CAP

- radiator, 7 PSI (48 kPa)

1шт.

2

L72507

RADIATOR

- engine, Includes: Ref. 2A, 2B, 6

1шт.

2a

D87196

COOLER

- oil, not shown

1шт.

2b

N6184

SHROUD

- radiator

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose

4шт.

4

L55764

RADIATOR HOSE,2.50" ID, 2.62" ID x 8.30", SAE 20R4 Class SC

Lower 2.50" ID, 2.62" ID x 8.30", SAE 20R4 Class SC

1шт.

5

L55524

RADIATOR HOSE,2.50" ID x 8.70", SAE 20R4 Class SC or Class D-1

Upper 2.50" ID x 8.70", SAE 20R4 Class SC or Class D-1

1шт.

6

A27862

COCK, DRAIN

VALVE - radiator drain, included in L72507 radiator

1шт.

7

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A61283

BUSHING

SPACER - fan

2шт.

11

A15519

FAN

- suction

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

13

L103519

BRACKET

- engine, Includes: Ref. 13A

1шт.

This part subs to: 1 of L78158 bracket, 1 of H388371 cable, 1 of L108391 wire. The cable and wire are for use on the 680H only. They are not required on the 680G.

1шт.

13a

A19066

MOUNTING PARTS

CUSHION - rubber mount

1шт.

14

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

25-1012

NUT,3/4"-10, G5

4шт.

16

139-64

PIN,1/8" x 1 1/2", Tapered

- taper, No. 5 x 1-1/2"

2шт.

17

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

18

L79179

WASHER

- flat, 3/4"

1шт.

19

A19068

WASHER

- special, 3/4"

2шт.

20

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

21

A59296

SET OF BELTS,0.69" W x 60.00" L

SET OF 2 BELTS , Matched, Fan and alternator drive 0.69" W x 60.00" L

1шт.

22

L72739

BELT,12.50 mm W x 1092.00 mm L

Brake air compressor drive 12.50 mm W x 1092.00 mm L

1шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Adjusting strap Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

L41455

STRAP

- alternator belt adjusting, used before tractor sn 9128277

1шт.

25

A34705

ADJUSTER

STRAP - alternator belt adjusting, used on tractor sn 9128277 and after, not shown

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Strap mounting Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

L78103

ALTERNATOR

- electrical, parts list Figures 82 thru 84, Includes: Ref. 29

1шт.

29

L59716

PULLEY

- alternator

1шт.

30

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3"

1шт.

31

A160391

BRACKET

- alternator mounting

1шт.

32

92-6

LOCK WASHER,3/8"

3шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

34

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex head, 1/2" - 13 NC x 3

1шт.

35

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

36

92-8

LOCK WASHER,1/2"

3шт.

37

R24323

WASHER

- special, starter mounting

3шт.

38

L79906

STARTER MOTOR

STARTER - electrical, parts list Figure 72 thru 78

1шт.

40

REF

INSTRUCTION

ENGINE - tractor, parts list pages 17 thru 59

1шт.

41

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

6шт.

42

92-5

LOCK WASHER,5/16"

6шт.

43

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

7шт.

44

A43384

FAN

- alternator

1шт.
