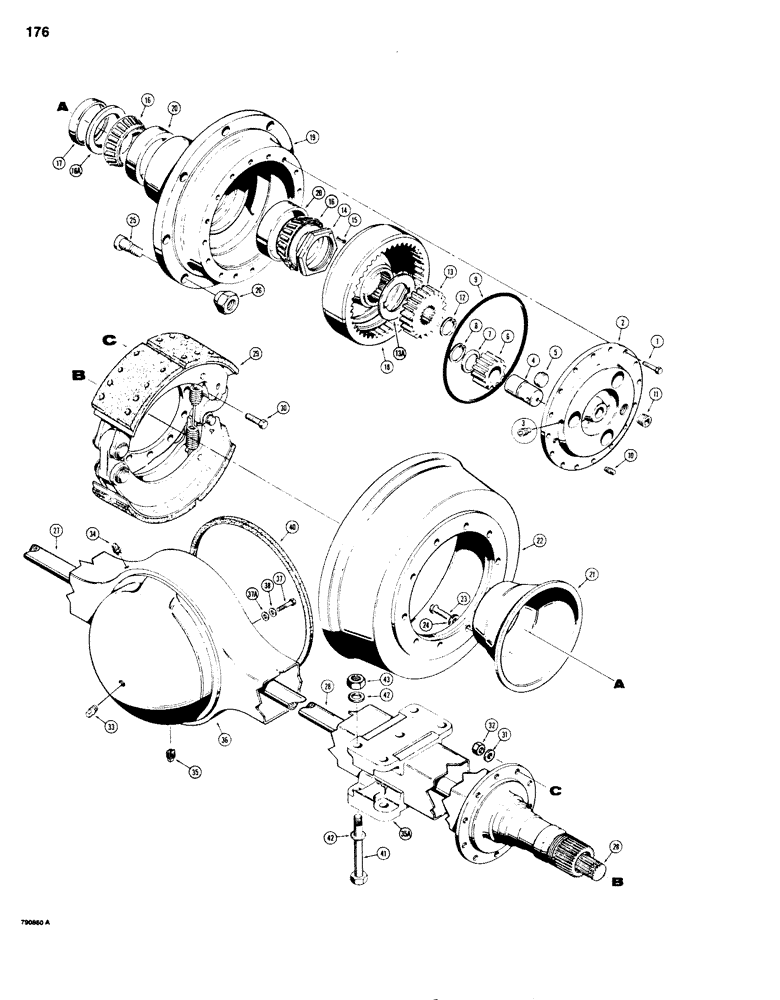

Запчасти Case 680G (176) - L101297 REAR AXLE, AXLE HOUSING AND PLANETARY, USED ON TRACTOR S/N 9131807 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L101297
AXLE ASSEMBLY - complete, rear, PRS264-P100/17.55, Includes: Ref. 1 - 40
1шт.
1
A18221
BOLT,M10 x 1.25 x 50mm, Cl 8.8
CAPSCREW - special
32шт.
D87286
SPIDER ASSY.
SPACER ASSEMBLY - planetary, Includes: Ref. 2 - 5
2шт.
2
NSS
NOT SOLD SEPARAT
SPIDER - planetary
1шт.
3
178-256
SET SCREW,Hex Soc, 3/8"-16 x 5/8"
SCREW - set, 3/8" x 5/8"
3шт.
4
D87287
SHAFT
- pinion
3шт.
5
A18247
PIN
BUTTON - thrust
1шт.
6
D88721
GEAR WHEEL
PINION - gear
6шт.
7
N7104
WASHER, THRUST
WASHER - thrust
6шт.
8
A18242
RING
- snap
6шт.
9
A18218
O-RING,10.125" ID x 10.312" OD x 0.103"
SEAL - O-ring, planetary cover, if used
2шт.
9
345-84
ADHESIVE
GASKET - form-in-place, if used, not shown
2шт.
10
221-3
DRAIN PLUG,Sq Hd, 3/8"-18 NPTF
PLUG - drain, square head, 3/8" NPT
2шт.
11
221-25
PLUG,Sq Soc, 3/4"-14 NPTF
- fill, square socket, 3/4" NPT
2шт.
12
A18241
RING
- snap, sun gear retaining
2шт.
13
D88719
GEAR WHEEL
GEAR - sun
2шт.
13a
D88720
WASHER,68.33mm ID x 101.6mm OD x 1.52mm Thk
- sun gear thrust
2шт.
N7105
LOCK NUT
NUT ASSEMBLY - lock, bearing, Includes: Ref. 14, 15
2шт.
14
NSS
NOT SOLD SEPARAT
NUT - lock
1шт.
15
138-2018
PIN,1/4" x 7/8", Coiled
1шт.
16
L35221
ROLLER BEARING,85mm ID x 30mm W
CONE - bearing, roller
4шт.
16a
L35226
OIL SEAL
- bearing
2шт.
As per CE Service Bulletin 29-83, Ref. 16A and 17 were replaced with a combination seal/wear sleeve, P/N N7841, which now subs to 100173A1.
1шт.
17
L35220
SLEEVE
- oil seal
2шт.
As per CE Service Bulletin 29-83, Ref. 16A and 17 were replaced with a combination seal/wear sleeve, P/N N7841, which now subs to 100173A1.
1шт.
18
D88718
RING
GEAR - ring, pinion
2шт.
Some ring gears may have the spiral pin retaining hole slightly mislocated, which will prevent the ring gear from sliding into place with gentle tapping. If this is the case, refer to CE Service Bulletin 32-82.
1шт.
D88717
HUB CAP
HUB AND CAP ASSEMBLY - axle, Includes: Ref. 19, 20
2шт.
19
NSS
NOT SOLD SEPARAT
HUB - wheel
1шт.
20
A63171
BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm
CUP - bearing, roller
2шт.
21
L35224
SLINGER
- oil
2шт.
22
D88722
DRUM HUB
DRUM - brake
2шт.
23
26-1228
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8
- hex head, 5/8" - 11 NC x 1-1/2", grade 8
20шт.
24
L36067
WASHER
-, Serial Range: drum-housing
20шт.
25
A13112
STUD
STUD - wheel
16шт.
26
A12522
WHEEL NUT
- wheel, not shipped with axle, order separately
16шт.
27
N7076
AXLE SHAFT
SHAFT - axle, left-hand, short
1шт.
This is the "long"shaft (39.88" long).
1шт.
28
D87285
SHAFT
- axle, right-hand, long
1шт.
This is the "short" shaft (37.71" long).
1шт.
29
REF
INSTRUCTION
BRAKE ASSEMBLY - axle, see Figures 192 and 194 for proper brakes
2шт.
30
28-1032
BOLT,Hex, 5/8" - 18 x 2", Gr 8
- hex head, 5/8" - 18 NF x 2", grade 8
20шт.
31
L30737
WASHER
- special
20шт.
32
131-1236
LOCK NUT,5/8"-18, GC
NUT - hex, self lock, 5/8" - 18 NF
20шт.
33
221-25
PLUG,Sq Soc, 3/4"-14 NPTF
- fill
1шт.
Part of service housing assembly P/N D87278
1шт.
34
A12928
BREATHER
- axle housing
1шт.
35
221-678
DRAIN PLUG,Sq Soc, 3/4" NPT
PLUG - magnetic draining
1шт.
Part of service housing assembly P/N D87278
1шт.
35a
L76957
PLATE
PAD - axle, lower pads not shipped with axle, order separately
2шт.
36
NSS
NOT SOLD SEPARAT
HOUSING - axle
1шт.
Part of service housing assembly P/N D87278
1шт.
37
26-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
12шт.
37
26-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8
- hex head, 7/16" - 14 NC x 1-3/4", grade 8
2шт.
37a
D47366
WASHER
- special, 1/2"
12шт.
38
D47367
WASHER
- special, 7/16"
4шт.
39
RESERVED
1шт.
40
NSS
NOT SOLD SEPARAT
GASKET - differential to housing, order M20704 form-in-place gasket
1шт.
41
116-703
BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8
Hex, 3/4"-16 x 9 1/2", G8
8шт.
42
L74506
WASHER
- special, hardened
16шт.
43
131-1251
LOCK NUT,3/4"-16, GC
NUT, LOCK, 3/4"-16, GC
8шт.
D87278
HOUSING ASSEMBLY - service, Includes: Ref. 33, 35, 36
1шт.
Выбрано товаров: 63
