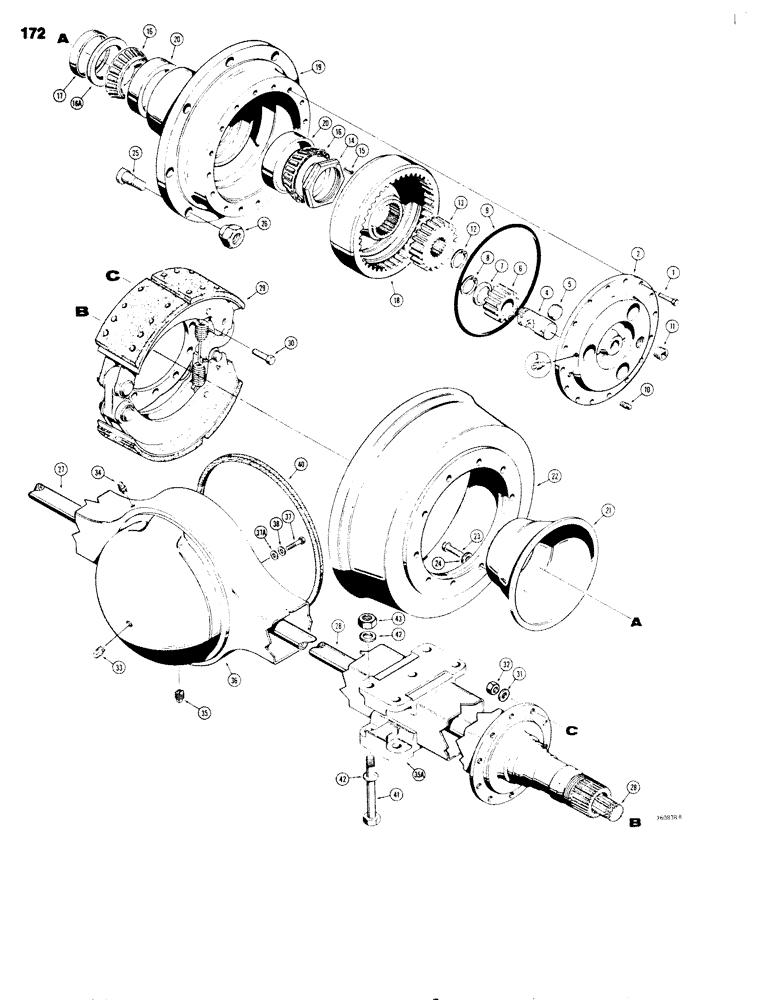

Запчасти Case 680G (172) - L100707 REAR AXLE, AXLE HOUSING AND PLANETARY, USED BEFORE TRACTOR S/N 9131807 (06) - POWER TRAIN

L100707

AXLE ASSEMBLY - complete, rear, PRS-204-P4/17.44 - 1, Includes: Ref. 1 - 37

1шт.

1

A18221

BOLT,M10 x 1.25 x 50mm, Cl 8.8

CAPSCREW - specila

32шт.

L35235

PINION

SPIDER AND COVER ASSEMBLY - planetary, Includes: L35236 and Ref. 2 - 8

2шт.

L35236

U-JOINT SPIDER

SPIDER ASSEMBLY - planetary

1шт.

2

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

3

178-256

SET SCREW,Hex Soc, 3/8"-16 x 5/8"

SCREW - set, 3/8" x 5/8"

3шт.

4

A18246

SHAFT

- pinion

3шт.

5

A18247

PIN

BUTTON - thrust

1шт.

6

L35237

GEAR

PINION - gear

3шт.

7

N7104

WASHER, THRUST

WASHER - thrust

3шт.

8

A18242

RING

- snap

3шт.

9

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - O-ring, planetary cover, if used

2шт.

9

345-84

ADHESIVE

GASKET - form-in-place, if used, not shown

2шт.

10

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - drain, square head, 3/8" NPT

2шт.

11

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- fill, square socket, 3/4" NPT

2шт.

12

A18241

RING

- snap, sun gear retaining

2шт.

13

L35232

GEAR

- sun

2шт.

N7105

LOCK NUT

NUT ASSEMBLY - lock, bearing, Includes: Ref. 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

15

138-2018

PIN,1/4" x 7/8", Coiled

1шт.

16

L35221

ROLLER BEARING,85mm ID x 30mm W

CONE - bearing, roller

4шт.

16a

L35226

OIL SEAL

- bearing

2шт.

As per CE Service Bulletin 29-83, Ref. 16A and 17 were replaced with a combination seal/wear sleeve, P/N N7841, which now subs to 100173A1.

1шт.

17

L35220

SLEEVE

- oil seal

2шт.

As per CE Service Bulletin 29-83, Ref. 16A and 17 were replaced with a combination seal/wear sleeve, P/N N7841, which now subs to 100173A1.

1шт.

18

L35230

GEAR

- ring, pinion

2шт.

Some ring gears may have the spiral pin retaining hole slightly mislocated, which will prevent the ring gear from sliding into place with gentle tapping. If this is the case, refer to CE Service Bulletin 42-81.

1шт.

L35223

HUB CAP

HUB AnD CUP ASSEMBLY - axle, Includes: Ref. 19, 20

2шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, roller

2шт.

21

L35224

SLINGER

- oil

2шт.

22

L35580

DRUM HUB

DRUM - brake

2шт.

23

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex head, 5/8" - 11 NC x 1-1/2", grade 8

20шт.

24

L79179

WASHER

- special, wheel stud, not shipped with axle, order separately

16шт.

25

A13112

STUD

STUD - wheel

16шт.

26

A12522

WHEEL NUT

- wheel, not shipped with axle, order separately

16шт.

27

L35231

SHAFT

- axle, right-hand, 37.19" long

1шт.

Ref. 27 and 28 are reversed on the illustration. L35231 is RH shaft and is 37.19" long. L35234 is LH shaft and is 39.56" long.

1шт.

28

L35234

SHAFT

- axle, left-hand, 39.56" long

1шт.

Ref. 27 and 28 are reversed on the illustration. L35231 is RH shaft and is 37.19" long. L35234 is LH shaft and is 39.56" long.

1шт.

29

REF

INSTRUCTION

BRAKE ASSEMBLY - axle, see Figures 188 and 190 for proper brakes

2шт.

30

28-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 8

- hex head, 5/8" - 18 NF x 2", grade 8

20шт.

31

L30737

WASHER

- special

20шт.

32

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, self lock, 5/8" - 18 NF

20шт.

33

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

PLUG - fill

1шт.

Part of service housing assembly P/N D78348

1шт.

34

A12928

BREATHER

- axle housing

1шт.

35

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic draining

1шт.

Part of service housing assembly P/N D78348

1шт.

35a

L76957

PLATE

PAD - axle, lower pads not slipped with axle, order separtely

2шт.

36

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

Part of service housing assembly P/N D78348

1шт.

37

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

12шт.

37

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

- hex head, 7/16" - 14 NC x 1-3/4", grade 8

2шт.

37

26-740

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 8

- hex head, 7/16" - 14 NC x 2-1/2", grade 8

12шт.

37a

D47366

WASHER

- special, 1/2", Includes: Ref. 38 - 40

12шт.

38

D47367

WASHER

- special, 7/16"

4шт.

40

NSS

NOT SOLD SEPARAT

GASKET - differential to housing, order M20704 form-in-place gasket

1шт.

41

116-703

BOLT,Hex, 3/4" - 16 x 9-1/2", Gr 8

Hex, 3/4"-16 x 9 1/2", G8

8шт.

42

L74506

WASHER

- special, hardened

16шт.

43

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

8шт.

D78348

HOUSING ASSEMBLY - service, Includes: Ref. 33, 35, 36

1шт.
