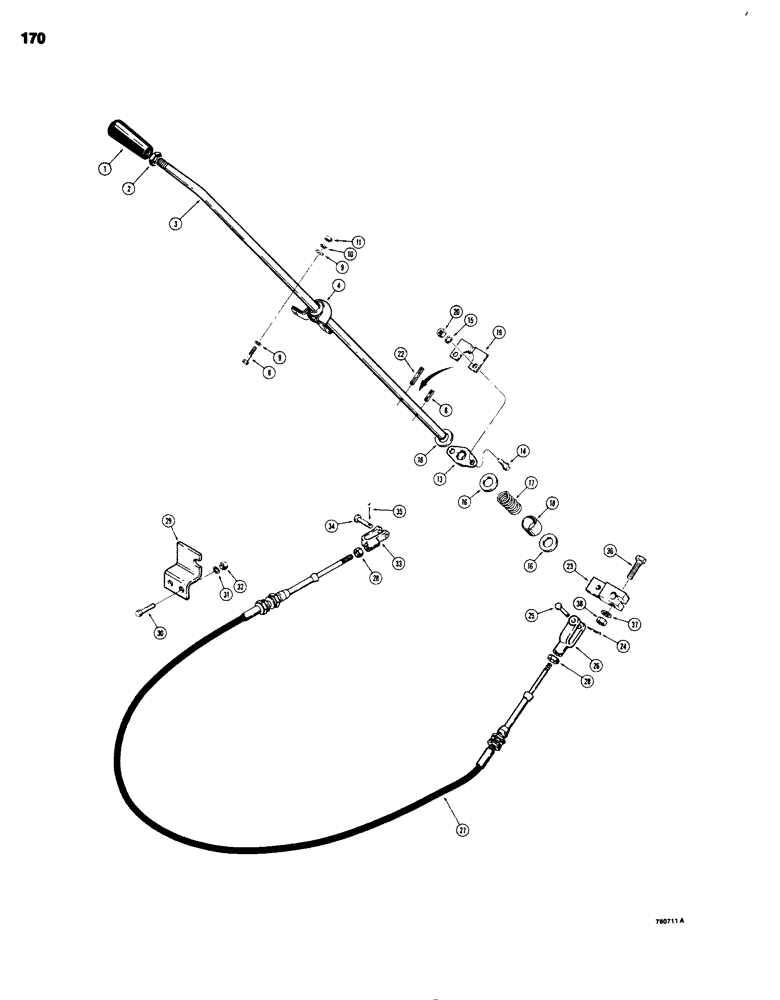

Запчасти Case 680G (170) - TRANSMISSION CONTROLS, FORWARD-REVERSE SHIFTING PARTS (06) - POWER TRAIN

1

L55721

HANDLE

- shift lever

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, self lock, 5/8" - 11 NC

1шт.

3

L74086

LEVER

- shift, forward and reverse

1шт.

4

L74516

BUSHING

BEARING - support, lever, upper

1шт.

6

138-63

LOCK PIN,1/8" x 1 1/4", Slotted

PIN, 1/8" x 1 1/4", Slotted

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

9

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

13

L74514

FLANGED BEARING,0.631" ID x 0.812"

BEARING - support, lever, lower

1шт.

14

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

NLS

NO LONGER SERVICED

- flat, 5/8"

3шт.

17

L74517

VALVE SPRING

SPRING - forward and reverse

1шт.

18

L12479

SLEEVE

- spring

1шт.

19

L107488

PLATE ASSY.

PLATE - forward and reverse lever

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

22

138-104

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

23

L70454

WASHER

LEVER - forward-reverse control

1шт.

24

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

25

141-2

CLEVIS PIN,1/4" x .770"

- 1/4"

1шт.

26

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - cable end, 1/4"

1шт.

27

L55718

CABLE PULLING GRIP

CABLE - control, forward-reverse

1шт.

28

25-214

BOLT (MACHINE)

NUT - hex, 1/4" - 28 NF

2шт.

29

L55867

BRACKET

- cable mounting, lower

1шт.

30

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

33

L55717

CLEVIS COUPLING

CLEVIS - offset, at control valve

1шт.

34

L26373

AXLE PIN

CLEVIS PIN - special

1шт.

35

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

36

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"-18 NC x 1-1/2"

1шт.

37

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.
