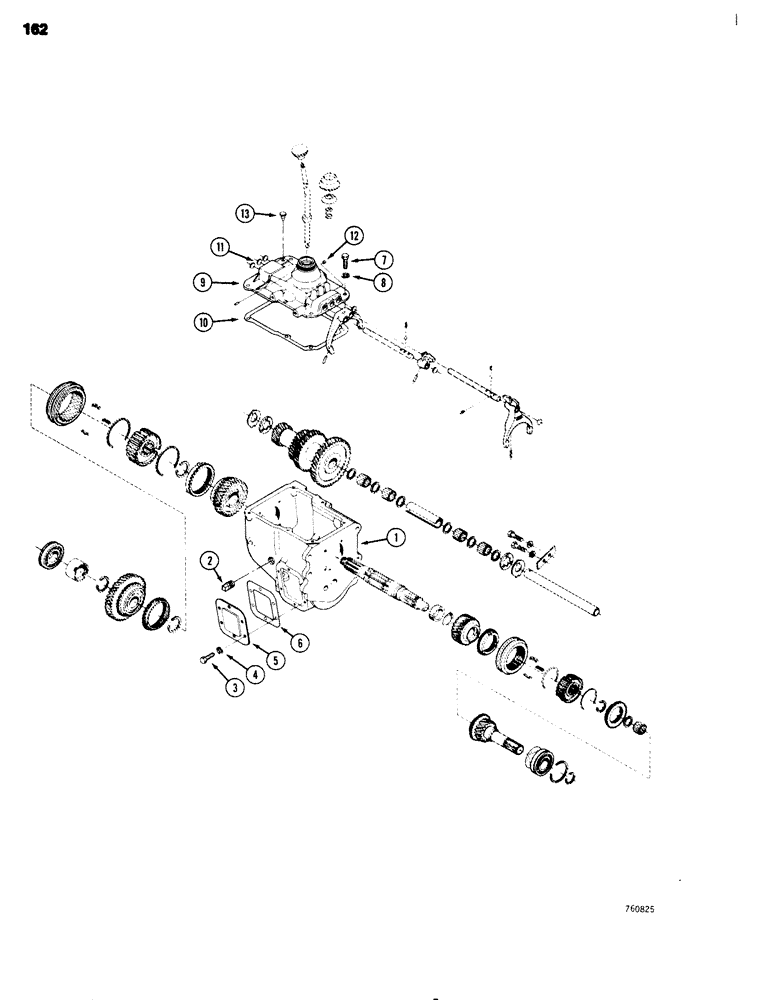

Запчасти Case 680G (162) - TRANSMISSION, CASE AND COVERS (06) - POWER TRAIN

L54268

TRANSMISSION

ASSEMBLY - 4-speed, Includes: Ref. 1 - 13

1шт.

1

D72755

CASE

- transmission

1шт.

2

221-676

PLUG

- drain, magnetic

1шт.

3

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

6шт.

This was replaced by a self-locking HHCS 3/8-16 x 5/8 (P/N N7041), which is now a part type 6 (no longer purchased).

1шт.

4

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

6шт.

This lockwasher is not required when N7041 self-locking screw is used.

1шт.

5

L33330

COVER ASSY

COVER - side, transmission

1шт.

6

L33331

GASKET

- cover to case, sealant 354-84 may be used in place of gasket

1шт.

7

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

6шт.

8

92-6

LOCK WASHER,3/8"

6шт.

9

L33366

HOUSING

COVER - shift control

1шт.

10

L33377

GASKET

- cover to case, sealant 354-84 may be used in place of gasket

1шт.

11

41-12

PLUG,Exp, 3/4"

- expansion

6шт.

12

L33367

PLUG

- taper

1шт.

13

L33376

BREATHER

- transmission case

1шт.

This will now sub to a L33367 plug (per vendor change).

1шт.
