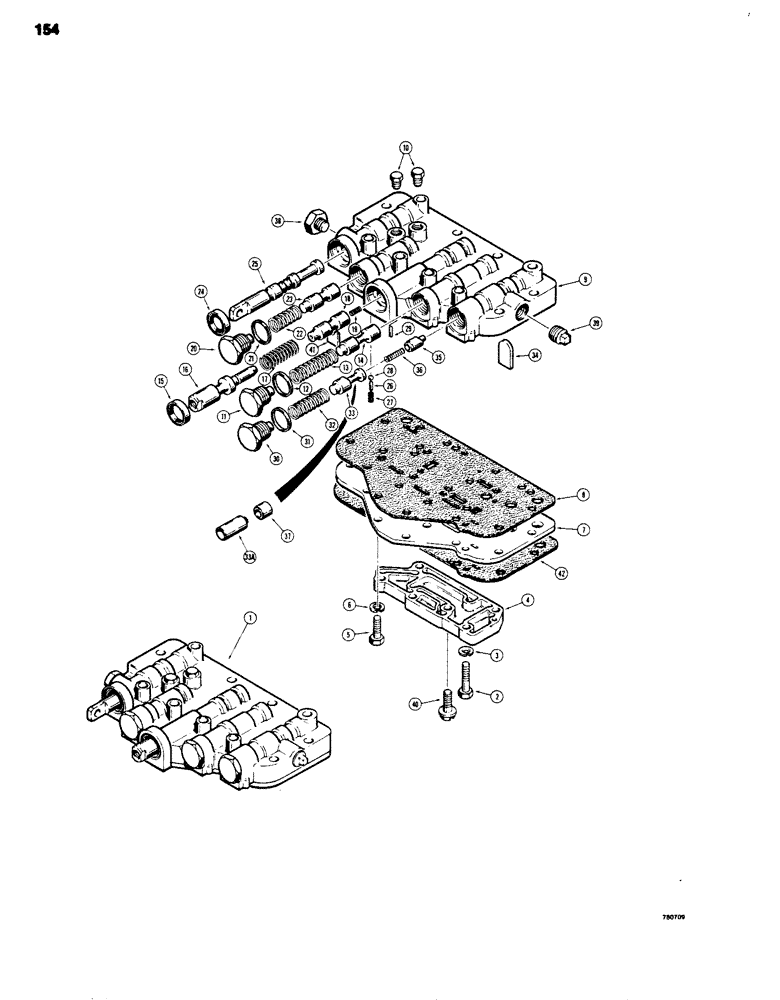

Запчасти Case 680G (154) - TRANSMISSION, FORWARD AND REVERSE CONTROL VALVE (06) - POWER TRAIN

1

D66391

VALVE

ASSEMBLY - complete, Includes: Ref. 2 - 42

1шт.

2

D66401

BOLT - hex head, 5/16" - 18 NC x 1-1/4"

6шт.

3

92-5

LOCK WASHER,5/16"

6шт.

4

D66400

COVER - valve body

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex head, 5/16" - 18 NC x 7/8", order Ref. 5A

2шт.

5a

D80336

BOLT AND WASHER ASSEMBLY - replaces Ref. 5 and 6

1шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

D72751

PLATE ASSY.

PLATE - separator

1шт.

8

D66398

GASKET

-, Serial Range: plate-body

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, hex head, 1/8" NPT

2шт.

11

A14882

SCREW

- pressure regulator valve

1шт.

This subs to N7042 plug which is now a part type 6 (no longer purchased). When using the N7042 plug, you must also use a 237-6008 O-ring.

1шт.

12

G10964

WASHER

GASKET - valve retainer screw

1шт.

13

A14885

VALVE SPRING

SPRING - regulator valve

1шт.

14

D66393

VALVE

- pressure regulator

1шт.

15

A14877

SEAL

- oil, clutch control

1шт.

16

D66394

PLUNGER

- clutch control

1шт.

17

A14874

VALVE SPRING

SPRING - plunger

1шт.

18

A14878

PLUNGER

VALVE - clutch control

1шт.

19

A14879

VALVE SPRING

SPRING - clutch control valve

1шт.

20

A14882

SCREW

- clutch supply valve

1шт.

21

G10964

WASHER

GASKET - valve retainer screw

1шт.

22

A14881

VALVE SPRING

SPRING - clutch supply valve

1шт.

23

A14884

PLUNGER

VALVE - clutch supply

1шт.

24

A14863

OIL SEAL

SEAL - oil, direction selector spool

1шт.

25

D66395

VALVE

SPOOL - direction selector

1шт.

26

D66397

AXLE PIN

PIN - detent spring

1шт.

27

D66396

VALVE SPRING

SPRING - detent ball

1шт.

28

211-7

BALL,1/4" Dia

steel (6 mm) 1/4" Dia

1шт.

29

D71461

AXLE PIN

PIN - dowel

1шт.

30

D72748

PLUG

- converter regulating valve retainer

1шт.

31

G10964

WASHER

GASKET - converter regulating valve screw

1шт.

32

D72749

VALVE SPRING

SPRING - converter regulating valve

1шт.

33

NSS

NOT SOLD SEPARAT

VALVE - converter regulating, for service order L72748 plug, D72749 spring, D72750 valve and D72747 plug

1шт.

34a

D72750

LOCK VALVE

VALVE - converter regulating

1шт.

34

D66404

PLATE ASSY.

PLATE - valve stop

1шт.

35

D66402

LOCK VALVE

VALVE - lube regulating valve

1шт.

36

D66403

VALVE SPRING

SPRING - lube regulating valve

1шт.

37

D72747

PLUG

- converter regulator valve

1шт.

38

D72752

PLUG

- special,.56" (14.22 mm) long, if used

1шт.

39

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" NPT, if used

1шт.

40

463-31013

SCREW,Hex Wash Hd, #10-24 x 3/16"

- No. 10 - 24 NC x 7/8" (Replaces 163-25 & 22-1039)

1шт.

41

D73728

STOP LOCK

STOP - valve

1шт.

42

D72753

GASKET

- valve body

1шт.
