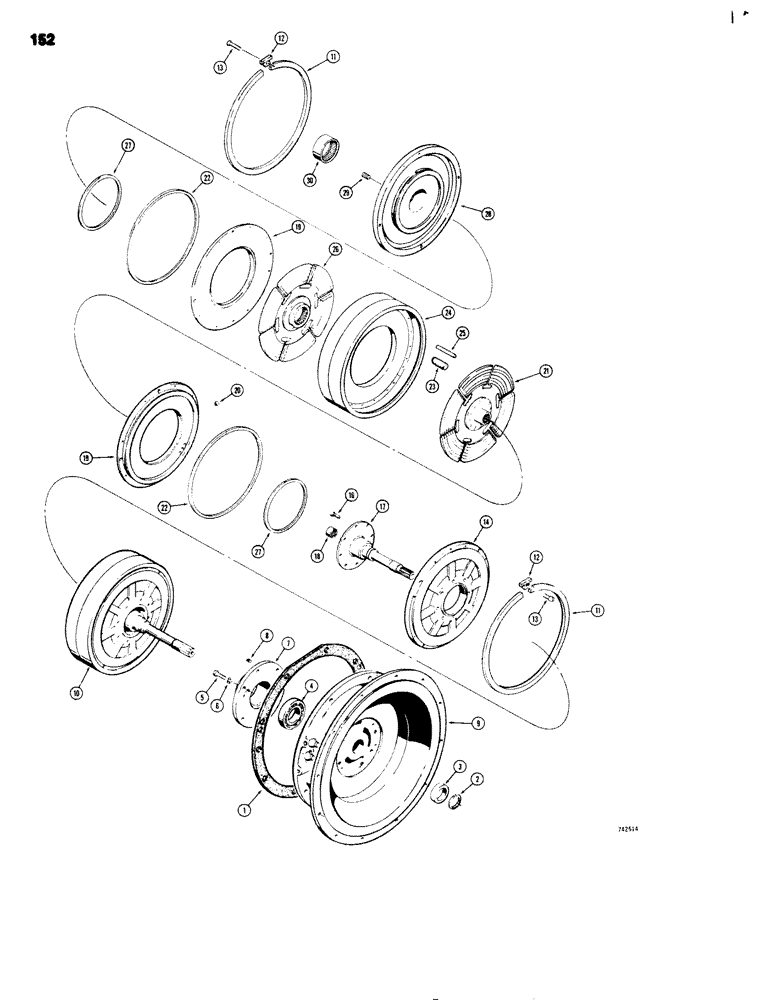

Запчасти Case 680G (152) - TRANSMISSION, FORWARD AND REVERSE CLUTCH (06) - POWER TRAIN

D73700

TRANSMISSION

TRANSMISSION ASSEMBLY - forward and reverse, Includes: Ref. 1 - 30

1шт.

1

D66388

GASKET

GASKET - transmission housing

1шт.

2

L30484

RING, SNAP

RING SNAP RING - snap, input shaft

1шт.

3

L30483

SPACER

SPACER - bearing

1шт.

4

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

BEARING - clutch

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

6шт.

6

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

6шт.

7

L30479

CAP

RETAINER ASSEMBLY - bearing, Includes: Ref. 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

RETAINER - housing

1шт.

8

L30245

PLUG

PLUG - retainer

2шт.

9

D66389

HOUSING

CASE - transmission, front, Includes: Ref. 4

1шт.

10

D66382

CLUTCH ASSEMBLY

CLUTCH ASSEMBLY - forward and reverse, Includes: Ref. 11 - 30

1шт.

10

D66382R

REMAN-CLUTCH PLATE

680G

1шт.

10

D66382C

CORE-CLUTCH PLATE

Return Number, Clutch Assembly

1шт.

11

L32121

RING, SNAP

RING SNAP RING - snap cylinder plate

2шт.

12

L32120

PLATE ASSY.

PLATE - lock, snap ring

2шт.

13

L32084

SCREW

SCREW - locking

2шт.

14

D66386

SHAFT

CYLINDER AND SHAFT ASSEMBLY - reverse clutch, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

CYLINDER - reverse clutch

1шт.

15

RESERVED

1шт.

16

121-104

BOLT,Lock Place, Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - special, 5/16", grade 8

8шт.

17

L30477

SHAFT

SHAFT ASSEMBLY - input, Includes: Ref. 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - input

1шт.

18

T32720

BEARING

BEARING - needle

1шт.

19

D66383

PISTON ASSY.

PISTON - clutch

2шт.

20

211-306

BALL,7/32" Dia

BALL - steel, 7/32" (5 mm)

2шт.

21

L35691

DRIVEN PLATE

PLATE - reverse clutch

1шт.

21

L35691R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

21

L35691C

CORE-CLUTCH PLATE

Return Number, Plate, Reverse Clutch

1шт.

22

D66384

RING

RING - seal, outer

2шт.

23

A14827

VALVE SPRING

SPRING - clutch retractor

24шт.

24

L30694

PLATE

PLATE ASSEMBLY - pressure, Includes: Ref. 24, 25

1шт.

24

L30694R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

24

L30694C

CORE-CLUTCH PLATE

Return Number, Plate Assembly, Pressure

1шт.

24

NSS

NOT SOLD SEPARAT

PLATE - pressure

1шт.

25

A14829

AXLE PIN

PIN - pressure plate drive

4шт.

26

L35687

DRIVEN PLATE

PLATE - forward clutch

1шт.

26

L35687R

REMAN-CLUTCH PLATE

680G

1шт.

26

L35687C

CORE-CLUTCH PLATE

Return Number, Plate

1шт.

26

47602120R

REMAN-CLUTCH PLATE

680G CASE CONSTRUCTION KING LOADER BACKHOE, Reman for New PN L35687

1шт.

26

47602120C

CORE-CLUTCH PLATE

Return Number

1шт.

27

A14832

RING

RING - seal, inner (Steel) if used

2шт.

27

D66414

RING

RING - seal, inner (Rubber) if used

2шт.

28

D66385

CYLINDER BLOCK

CYLINDER AND BEARING ASSEMBLY - forward clutch, Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

CYLINDER - forward clutch

1шт.

29

L30245

PLUG

PLUG - cylinder

2шт.

30

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle

1шт.
